Reference: S 155-A
Sykam S 155-A Compact Anion Chromatograph
Table-top integrated ion chromatograph for anion analysis with isocratic pump, manual injector, column oven, in-line suppressor and conductivity detector.
Key specifications
- Pump system
- Isocratic double plunger pump with PEEK pumphead
- Injector
- Manual injector
- Column oven
- Integrated column oven
- Auto suppressor
- Integrated in-line auto-suppressor module
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Sykam S 155-A Compact Anion Chromatograph
Request a quoteOverview
Product overview

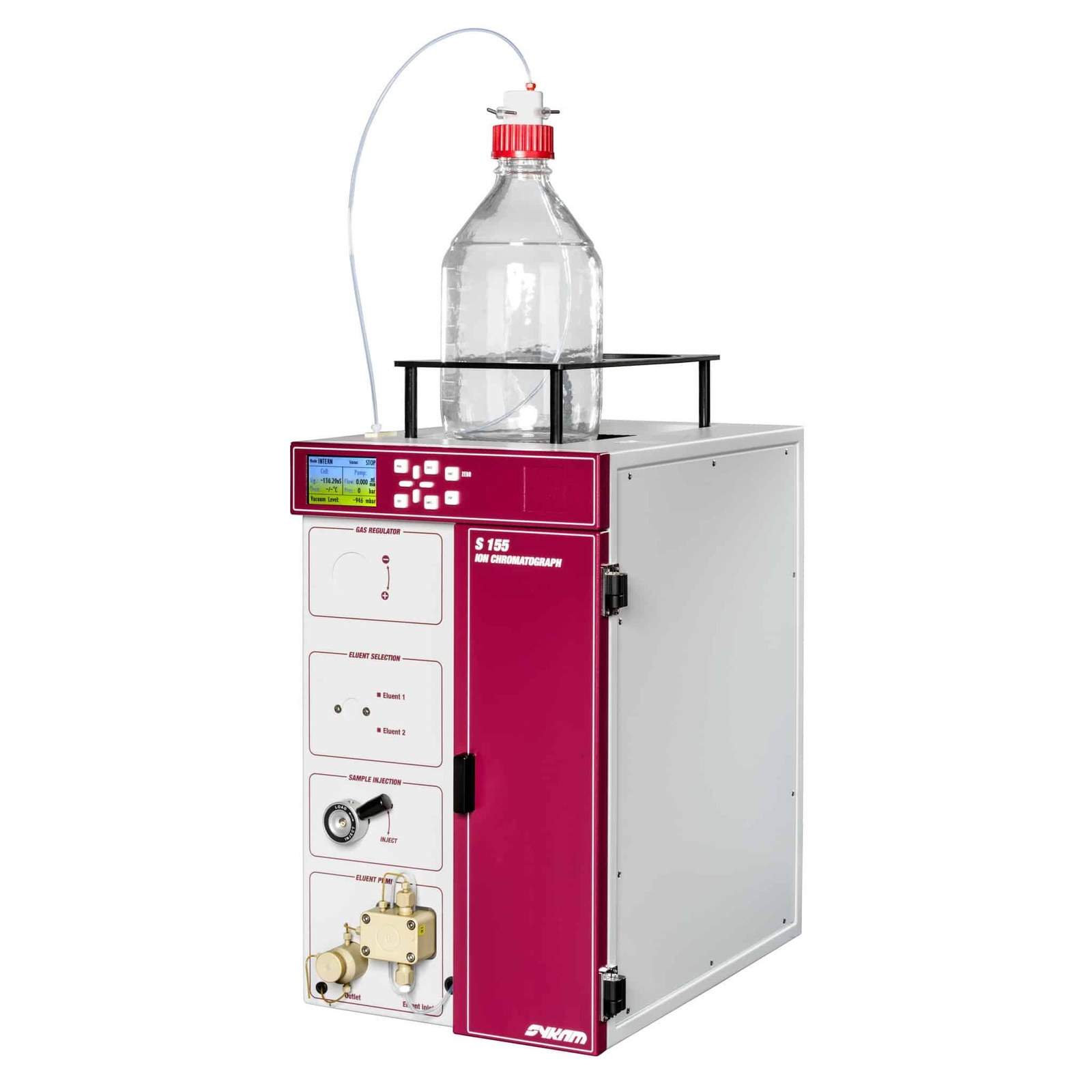

The S 155-A is a table-top ion chromatograph and an economical, fully functional anion chromatography system delivered as one pre-configured unit. It contains an isocratic ion-chromatography pump, a manual injector, a column oven, an in-line suppressor and a conductivity detector.
For low sample throughput and educational purposes it is an entry-level system without compromising analytical performance. Optional extras are an eluent selection valve and/or an inert gas supply connection for the eluent bottle(s).
Specifications
Technical specifications
7 parameters
Pump
- Pump system
- Isocratic double plunger pump with PEEK pumphead
Injector
- Injector
- Manual injector
Oven
- Column oven
- Integrated column oven
Suppressor
- Auto suppressor
- Integrated in-line auto-suppressor module
Detector
- Conductivity detector measuring range
- 20 nS/cm – 20000 µS/cm
Options
- Eluent selection
- Optional eluent selection valve with additional 2000 ml eluent bottle
- Inert gas supply
- Optional inert gas supply regulator with additional 2000 ml eluent bottle
Features
Key features
- 01
Integrated single unit
Pump, injector, oven, suppressor and detector in one housing.
- 02
Entry level
Suited to low sample throughput and educational use.
- 03
Optional upgrades
Eluent selection valve and inert gas supply.
