Reference: S 155-C

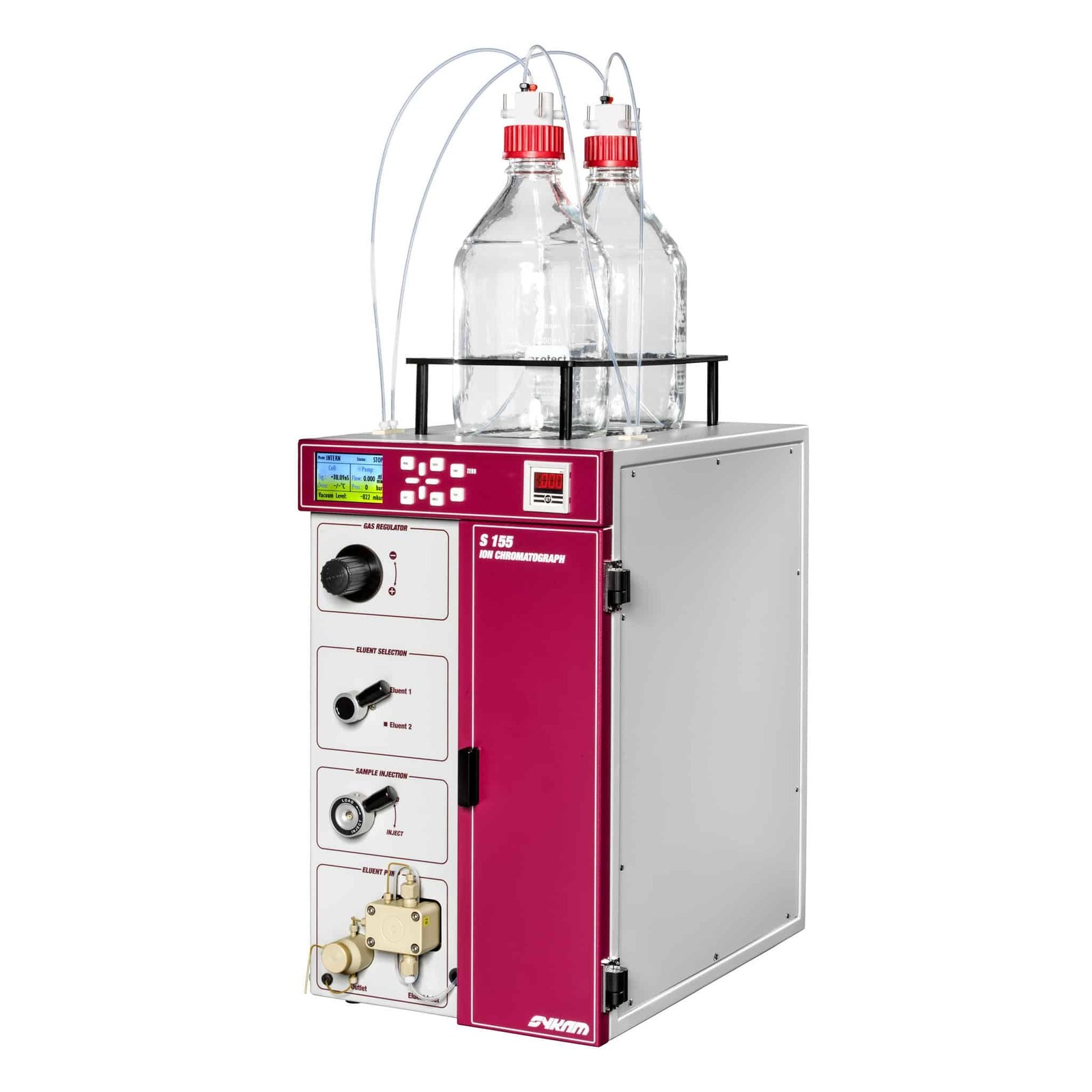

Sykam S 155-C Compact Cation Chromatograph
Table-top integrated ion chromatograph for cation analysis with isocratic pump, manual injector, column oven and conductivity detector in one unit.
Key specifications
- Pump system
- Isocratic double plunger pump with PEEK pumphead
- Flow rate range
- up to 10 ml/min
- Injector
- Manual injector
- Column oven
- Integrated column oven
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Sykam S 155-C Compact Cation Chromatograph
Request a quoteOverview
Product overview

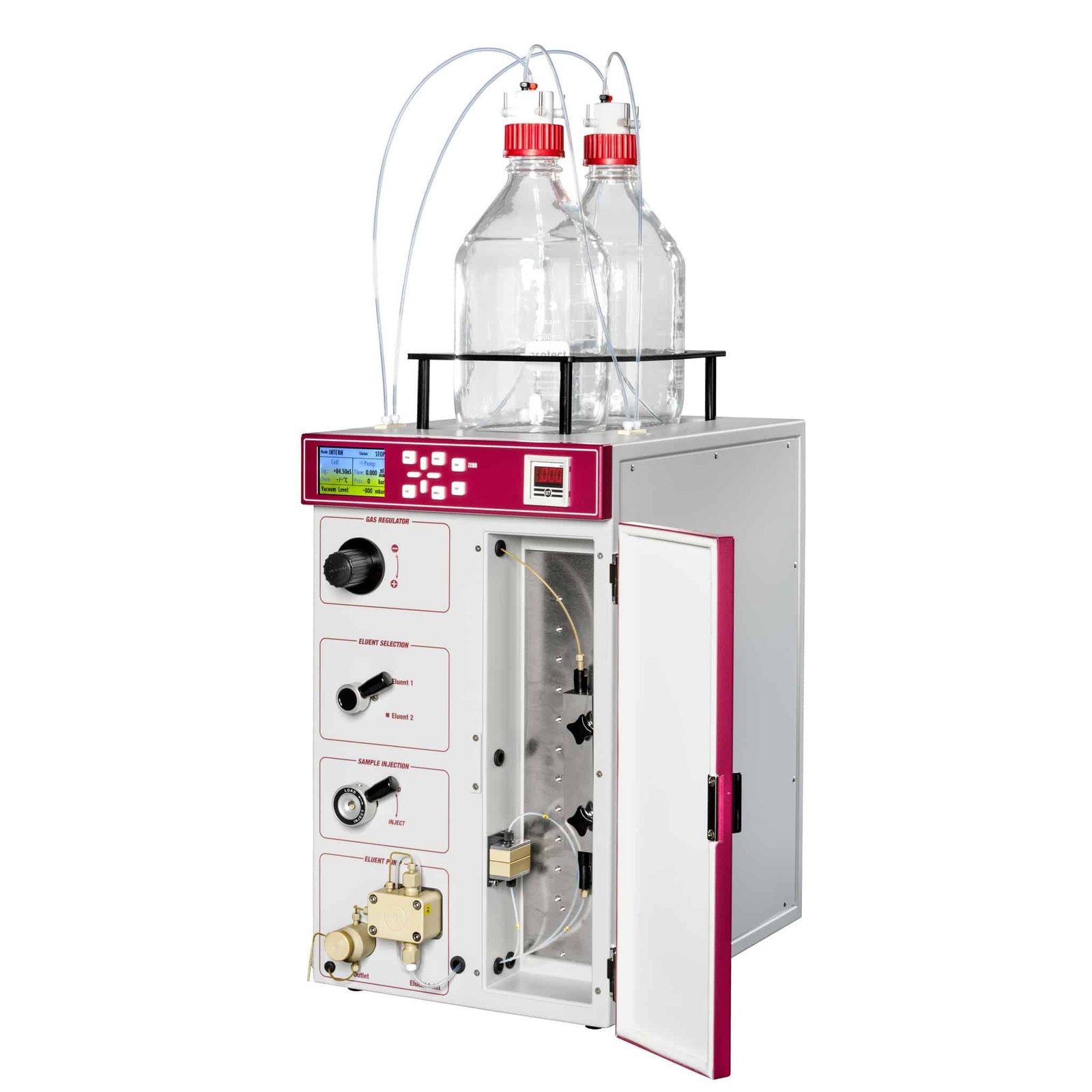

The S 155-C is a table-top ion chromatograph and an economical, fully functional cation chromatography system delivered as a single pre-configured unit. It contains an isocratic ion-chromatography pump, a manual injector, a column oven and a conductivity detector.
For low sample throughput and educational purposes it is an entry-level system that does not compromise analytical performance. Optional extras are an eluent selection valve and/or an inert gas supply connection for the eluent bottle(s).
Specifications
Technical specifications
7 parameters
Pump
- Pump system
- Isocratic double plunger pump with PEEK pumphead
- Flow rate range
- up to 10 ml/min
Injector
- Injector
- Manual injector
Oven
- Column oven
- Integrated column oven
Detector
- Conductivity detector measuring range
- 20 nS/cm – 20000 µS/cm
Options
- Eluent selection
- Optional eluent selection valve with additional 2000 ml eluent bottle
- Inert gas supply
- Optional inert gas supply regulator with additional 2000 ml eluent bottle
Features
Key features
- 01
Integrated single unit
Pump, injector, column oven and conductivity detector in one housing.
- 02
Entry level
Suited to low sample throughput and educational use.
- 03
Optional upgrades
Eluent selection valve and inert gas supply.
