Reference: S 3585

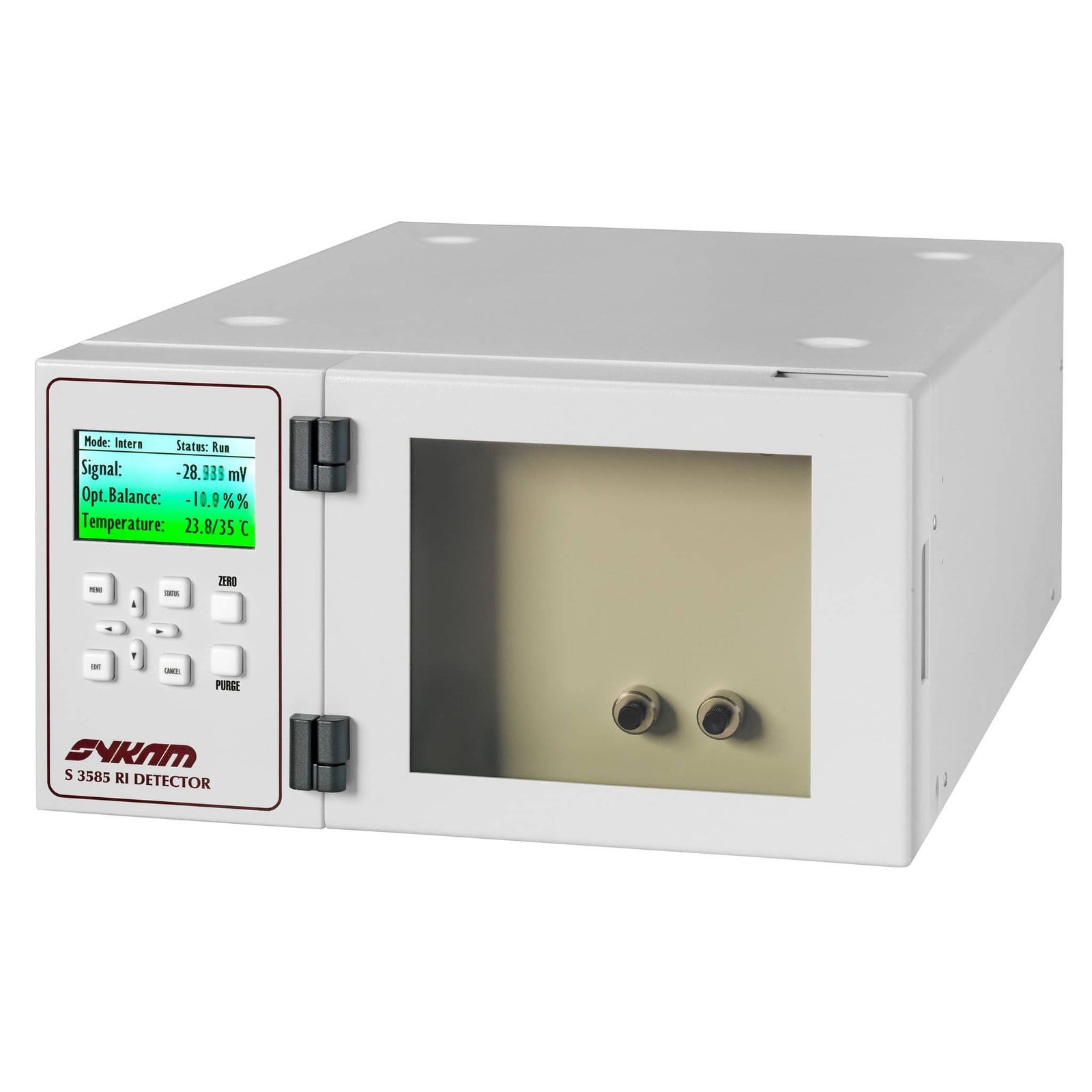

Sykam S 3585 RI Detector
Refractive index detector with programmable flow cell temperature control and a choice of micro, analytical or semi-preparative flow cell.
Key specifications
- Weight
- 13 kg
- Dimensions
- 47,8 × 31 × 16,5 cm
- Detection method
- Deflection
- Refractive index range
- 1.00 – 1.75
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Sykam S 3585 RI Detector
Request a quoteOverview
Product overview
The S 3585 Refractive Index Detector offers programmable flow cell temperature control and thermally isolated optics, with a choice of micro (up to 3.0 ml/min), analytical (up to 10 ml/min) or semi-preparative (up to 50 ml/min) flow cell.
Measuring ranges reach 500, 1000 and 20000 µRIU respectively, giving high sensitivity for microbore HPLC and a high dynamic range for preparative use. Analog and digital connectivity let it be applied in virtually any chromatography system that needs refractive index detection.
Specifications
Technical specifications
16 parameters
Instrument
- Weight
- 13 kg
- Dimensions
- 47,8 × 31 × 16,5 cm
Optics
- Detection method
- Deflection
- Refractive index range
- 1.00 – 1.75
Flow cell
- Flow rate
- 0.2 – 3.0 ml/min (micro), 0.2 – 10.0 ml/min (analytical), 1.0 – 50 ml/min (semi-preparative)
- Flowcell volume
- 4 µl, 45° angle (micro); 9 µl, 45° angle (analytical); 7 µl, 5° angle (semi-preparative)
- Max flowcell pressure
- 6 kg/cm²
- Dead volume
- 6 µl (micro), 24 µl (analytical), 88 or 353 µl (semi-preparative)
Performance
- Linearity range
- 0 – 500 µRIU (micro), 0 – 1000 µRIU (analytical), 0 – 20000 µRIU (semi-preparative)
- Noise level
- 10 nano-RIU (micro), 5 nano-RIU (analytical), 100 nano-RIU (semi-preparative)
- Drift @ 1 ml H2O/min
- < 1 mV/hour
Temperature
- Temperature control
- Ambient, 35 °C – 55 °C in 1 °C steps, thermal fuse 75 °C
Output
- Time constant
- RAW (0.0 s), fast (0.4 s), medium (0.8 s), slow (1.2 s)
- Integrator output
- ± 1 V
- Recorder output
- ± 10 mV, ± 100 mV, ± 1000 mV full scale
- Digital interface
- RS232, purge, autozero, start, stop, data-out: 1 Hz, 10 Hz
Features
Key features
- 01
Micro, analytical, semi-preparative cells
Flow cells up to 3, 10 and 50 ml/min.
- 02
Temperature control
Programmable, 35 – 55 °C in 1 °C steps.
- 03
Digital and analog outputs
RS232 and analog recorder/integrator outputs.
