Reference: S 5200
Sykam S 5200 Sample Injector
Robust autosampler for 120 samples with options for temperature-controlled racks, variable-loop injection, pre-column derivatisation and a bio-inert PEEK version.
Key specifications
- Sampling system
- X-Y-Z operation, with direct needle to injection-port sample loading
- Injection version
- Fixed sample loop programmable with 1 µl steps; variable sample loop programmable with 1 µl steps
- Sample capacity (analytical)
- 120 samples with two trays of 60 positions
- Sample capacity (preparative)
- 48 samples with two trays of 24 positions for 5 ml vials
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Sykam S 5200 Sample Injector
Request a quoteOverview
Product overview

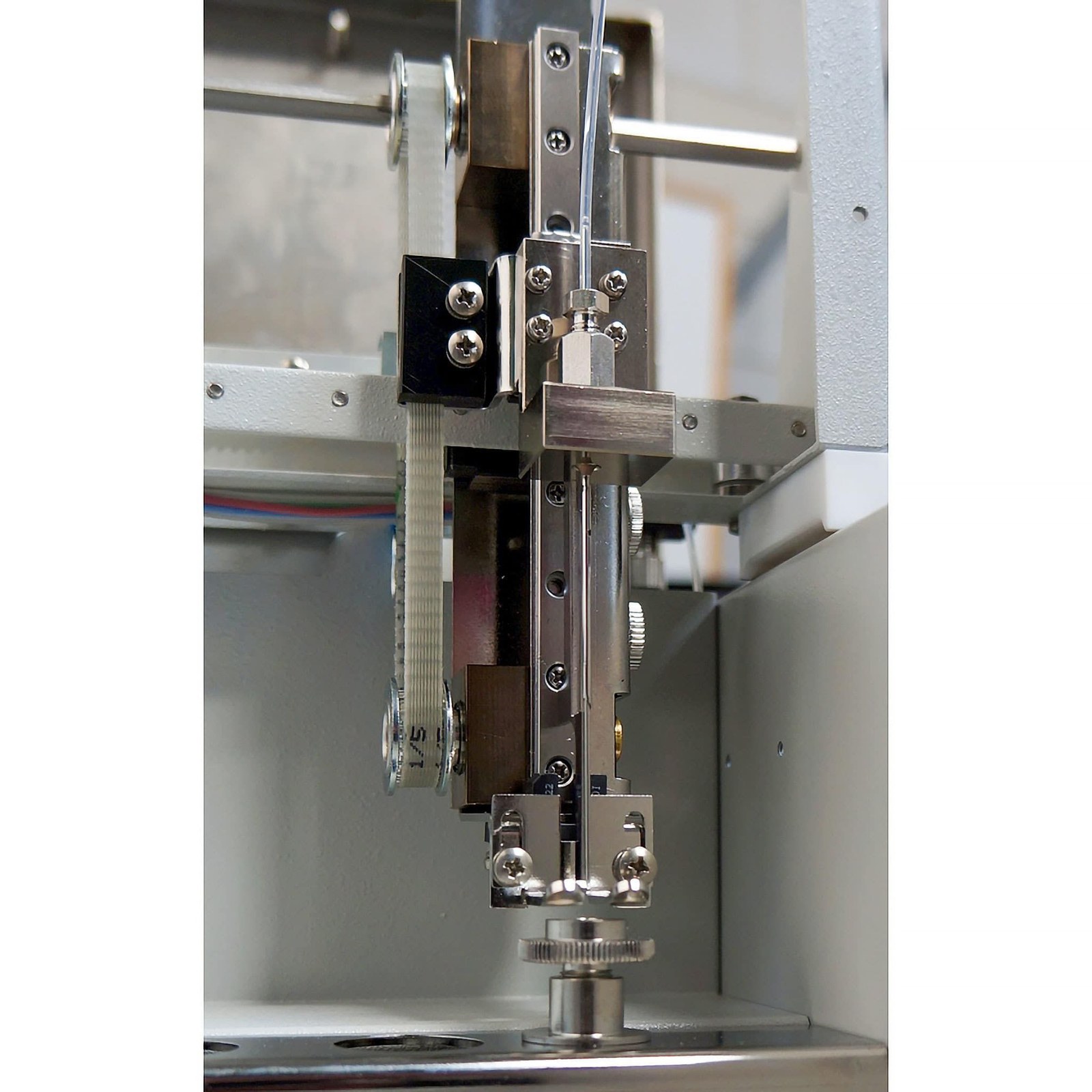

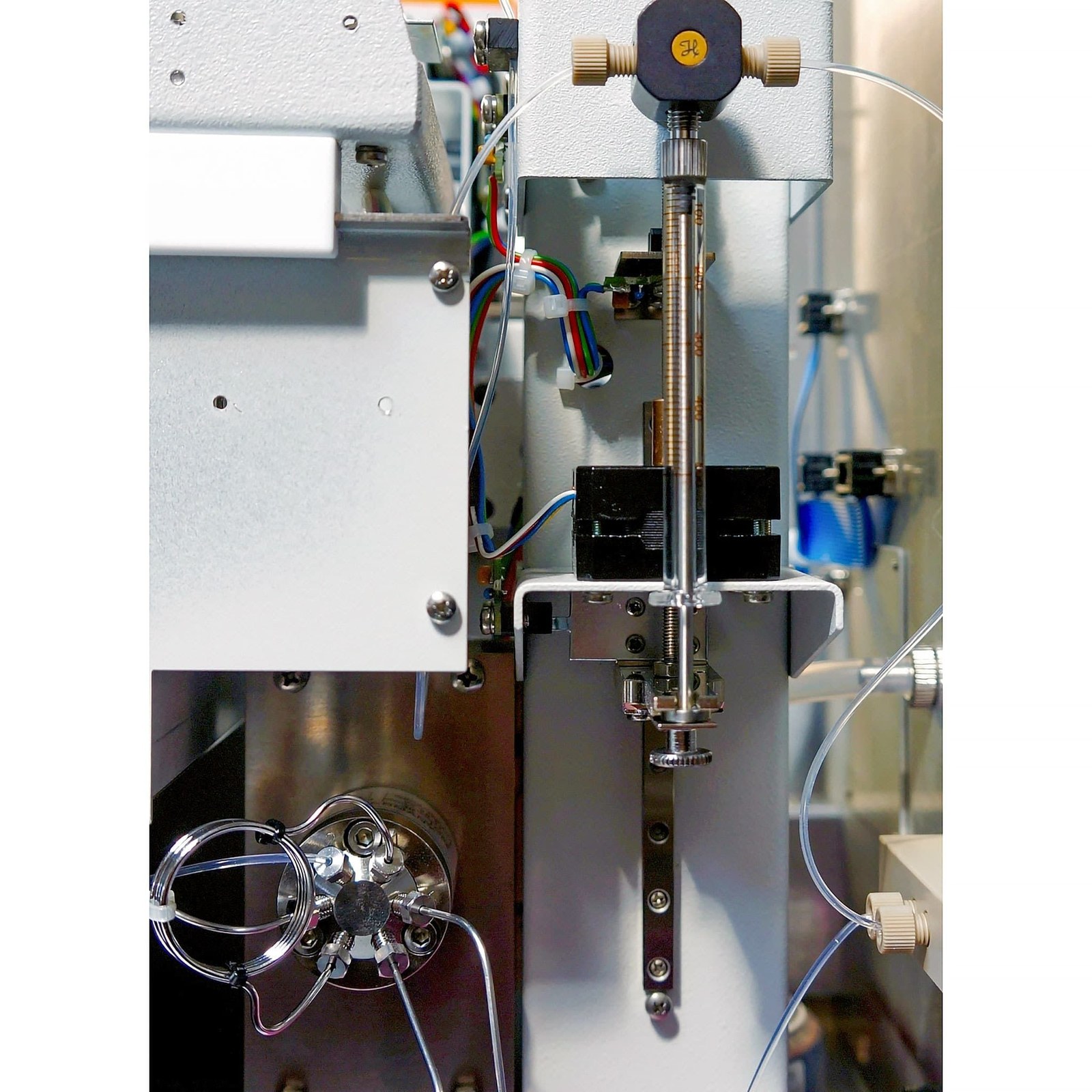

The S 5200 is a robust, advanced autosampler with a capacity of 120 samples. It can be configured from simple fixed-loop injection up to temperature-controlled sample racks, variable-loop injection and pre-column derivatization for up to three reagents.
A bio-inert PEEK/FEP version with a bio-inert needle is available for (bio)chromatography, and a preparative version handles 48 samples in 5 ml vials.
Specifications
Technical specifications
7 parameters
Sampling
- Sampling system
- X-Y-Z operation, with direct needle to injection-port sample loading
- Injection version
- Fixed sample loop programmable with 1 µl steps; variable sample loop programmable with 1 µl steps
- Sample capacity (analytical)
- 120 samples with two trays of 60 positions
- Sample capacity (preparative)
- 48 samples with two trays of 24 positions for 5 ml vials
Version
- Materials
- Stainless steel (standard); PEEK/FEP including bio-inert needle
Options
- Pre-column derivatisation
- Optional, for up to three reagents
- Temperature control
- Optional, 4 °C up to 70 °C
Features
Key features
- 01
120-sample capacity
Two trays of 60 positions.
- 02
Bio-inert version
PEEK/FEP with bio-inert needle.
- 03
Temperature control option
4 °C to 70 °C.
- 04
Pre-column derivatization
Up to three reagents.
