Reference: S 5250
Sykam S 5250 Sample Injector
Compact autosampler holding 60 vials or a 96-well plate, with dual-needle septum piercing and 0.1 – 999.9 µl injection volume.
Key specifications
- Dimensions
- 47,8 × 21 × 31 cm
- Sample capacity
- 60 standard (12 x 32 mm) vials or 96 with a microtiter plate
- Sampling system
- X-Y-Z operation with direct needle to valve injection
- Variable injection volume
- 0.1 – 999.9 µl
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Sykam S 5250 Sample Injector
Request a quoteOverview
Product overview
The S 5250 is the smallest of the three autosamplers in the Sykam HPLC range, holding 60 standard (12 x 32 mm) vials or 96 positions with a microtiter plate. Its small footprint and largely maintenance-free mechanics make it suitable for upgrading virtually any HPLC system with an autosampler.

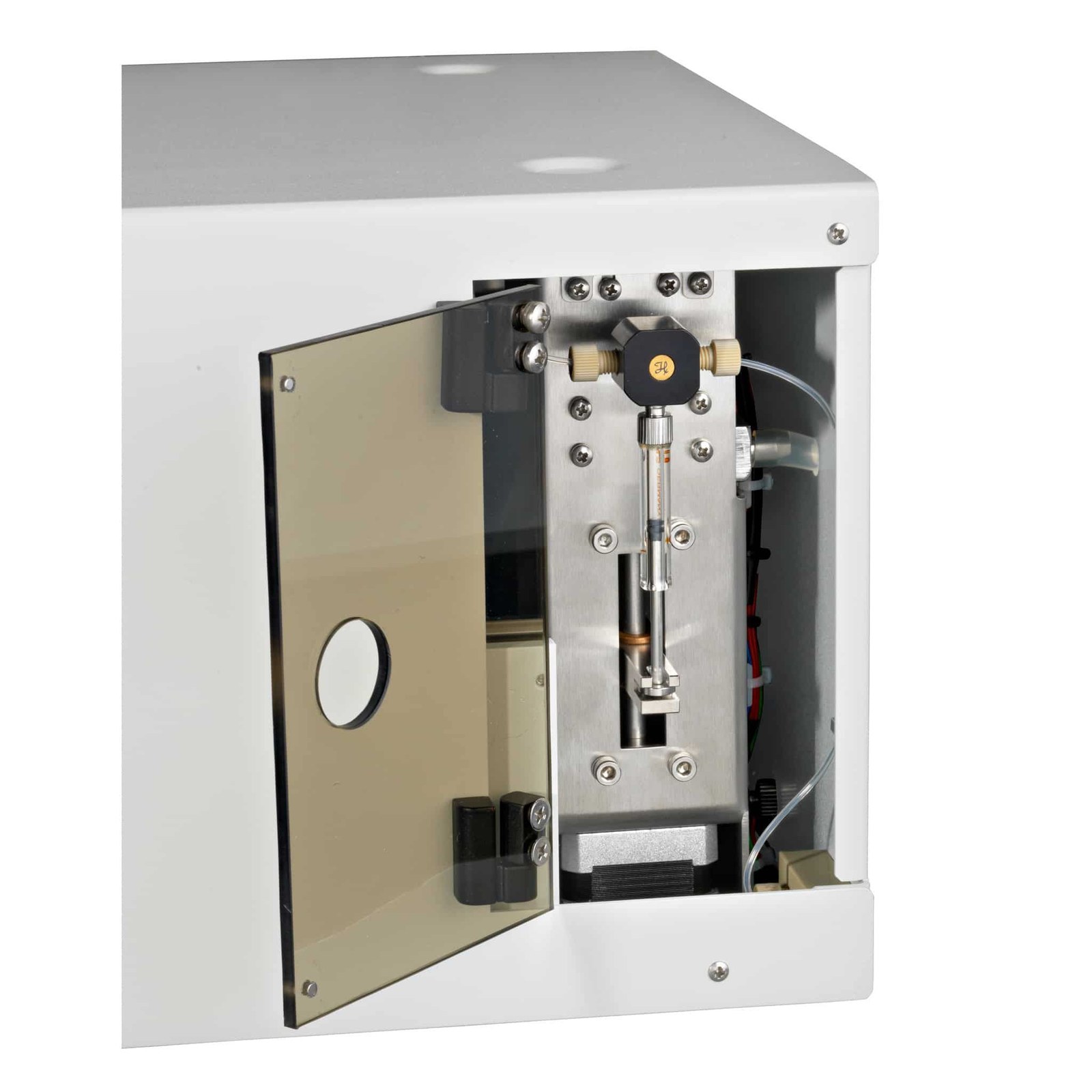

Its dual-needle design has an outer 'air needle' that pierces the vial septum before the sample needle enters the vial. This avoids blocked injection needles and valves and allows any type of vial septum to be used. The injection valve and dosing syringe are accessible without removing covers.
Specifications
Technical specifications
9 parameters
Instrument
- Dimensions
- 47,8 × 21 × 31 cm
Sampling
- Sample capacity
- 60 standard (12 x 32 mm) vials or 96 with a microtiter plate
- Sampling system
- X-Y-Z operation with direct needle to valve injection
- Variable injection volume
- 0.1 – 999.9 µl
- Injection modes
- Fixed-loop, variable loop, zero waste injection
- Concept
- Double needle; pierces septum before entering sample needle
Options
- Pre-column derivatisation
- Optional
- Sample dilution
- Optional
Control
- Programmable
- As stand-alone unit, full PC-control
Features
Key features
- 01
Dual-needle design
Air needle pierces the septum before the sample needle enters.
- 02
Compact footprint
Smallest of the three Sykam HPLC autosamplers.
- 03
Flexible injection
Fixed-loop, variable loop and zero waste modes.
- 04
Optional extras
Pre-column derivatisation and sample dilution.
