Reference: S 5300

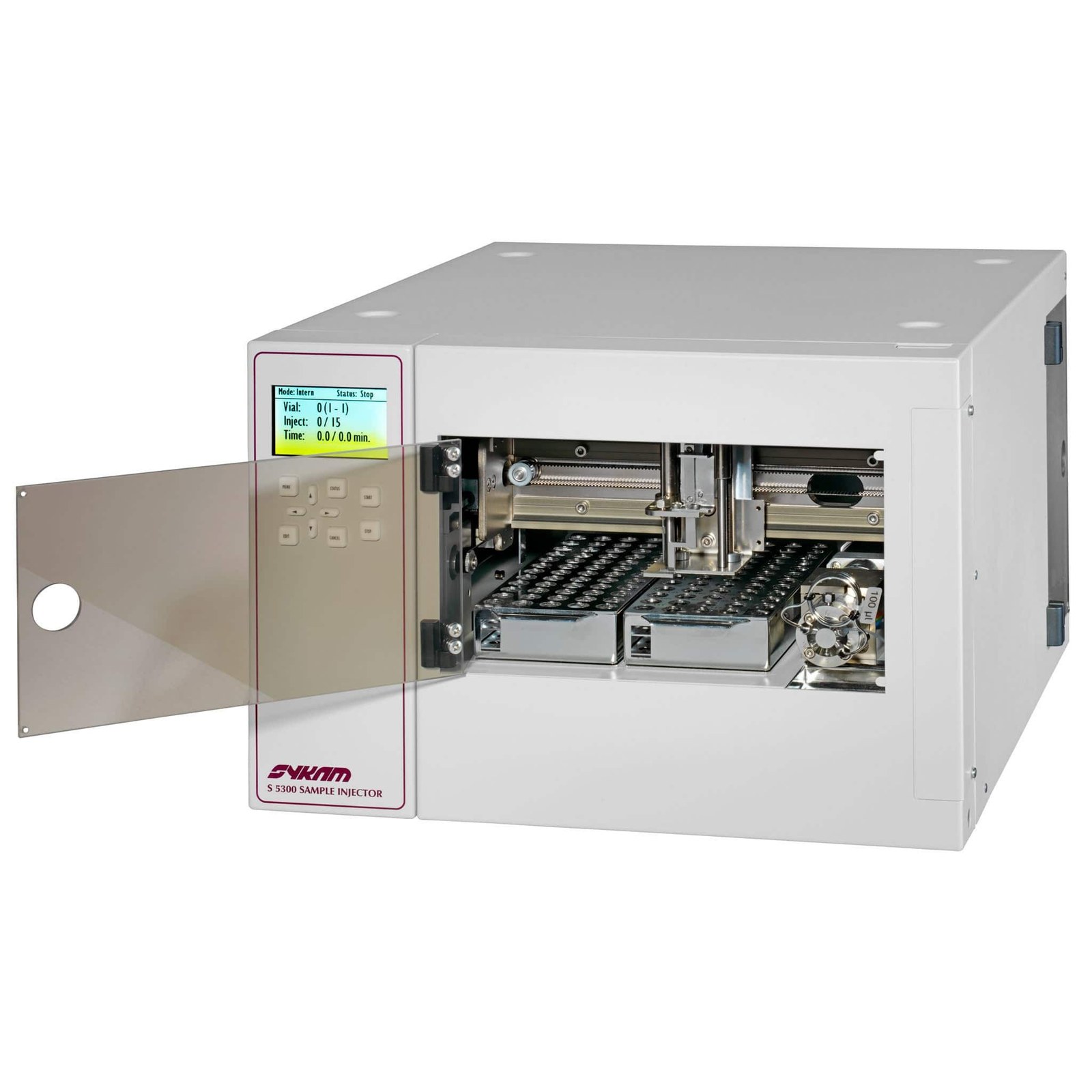

Sykam S 5300 Sample Injector
Autosampler holding 120 vials or 192 samples in microtiter plates, with dual-needle septum piercing and 0.1 – 999.9 µl injections.
Key specifications
- Dimensions
- 47,8 × 27,5 × 39,6 cm
- Sample capacity
- 120 standard (12 x 32 mm) vials or 192 samples with microtiter plates
- Sampling system
- X-Y-Z operation with direct needle to valve injection
- Variable injection volume
- 0.1 – 999.9 µl
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Sykam S 5300 Sample Injector
Request a quoteOverview
Product overview
The S 5300 holds 120 standard (12 x 32 mm) vials or 192 samples with microtiter plates. Its specifications and largely maintenance-free mechanics make it a good partner for automating Sykam HPLC systems and for upgrading virtually any HPLC system with an autosampler.
A dual-needle technique has the outer 'air needle' pierce the vial septum before the sample needle enters the vial. This avoids blocked injection needles and valves, allows any type of septum, and adds to the reliability of the whole chromatography system.
Specifications
Technical specifications
9 parameters
Instrument
- Dimensions
- 47,8 × 27,5 × 39,6 cm
Sampling
- Sample capacity
- 120 standard (12 x 32 mm) vials or 192 samples with microtiter plates
- Sampling system
- X-Y-Z operation with direct needle to valve injection
- Variable injection volume
- 0.1 – 999.9 µl
- Injection modes
- Fixed-loop, variable loop, zero waste injection
- Concept
- Double needle; pierces septum before entering sample needle
Options
- Pre-column derivatisation
- Optional
- Sample dilution
- Optional
Control
- Programmable
- As stand-alone unit, full PC-control
Features
Key features
- 01
Dual-needle design
Air needle pierces the septum first.
- 02
High capacity
120 vials or 192 samples on microtiter plates.
- 03
Flexible injection
Fixed-loop, variable loop and zero waste modes.
