Sykam S 6020 / S 6120 Needle Injection HPLC Valve

Sykam S 6020 / S 6120 needle injection valve for HPLC; stainless steel and biocompatible PEEK versions, up to 400 bar.

Key specifications

Stator material (S 6020): Stainless steel
Pressure range (S 6020): 400 bar (6000 PSI)
Stator material (S 6120): PEEK (biocompatible)
Pressure range (S 6120): 350 bar (5250 PSI)

Configured to your application by our specialists
Installed and commissioned on site
Training and after-sales support across Jordan, the GCC and MENA

Sykam S 6020 / S 6120 Needle Injection HPLC Valve

Overview

Product overview

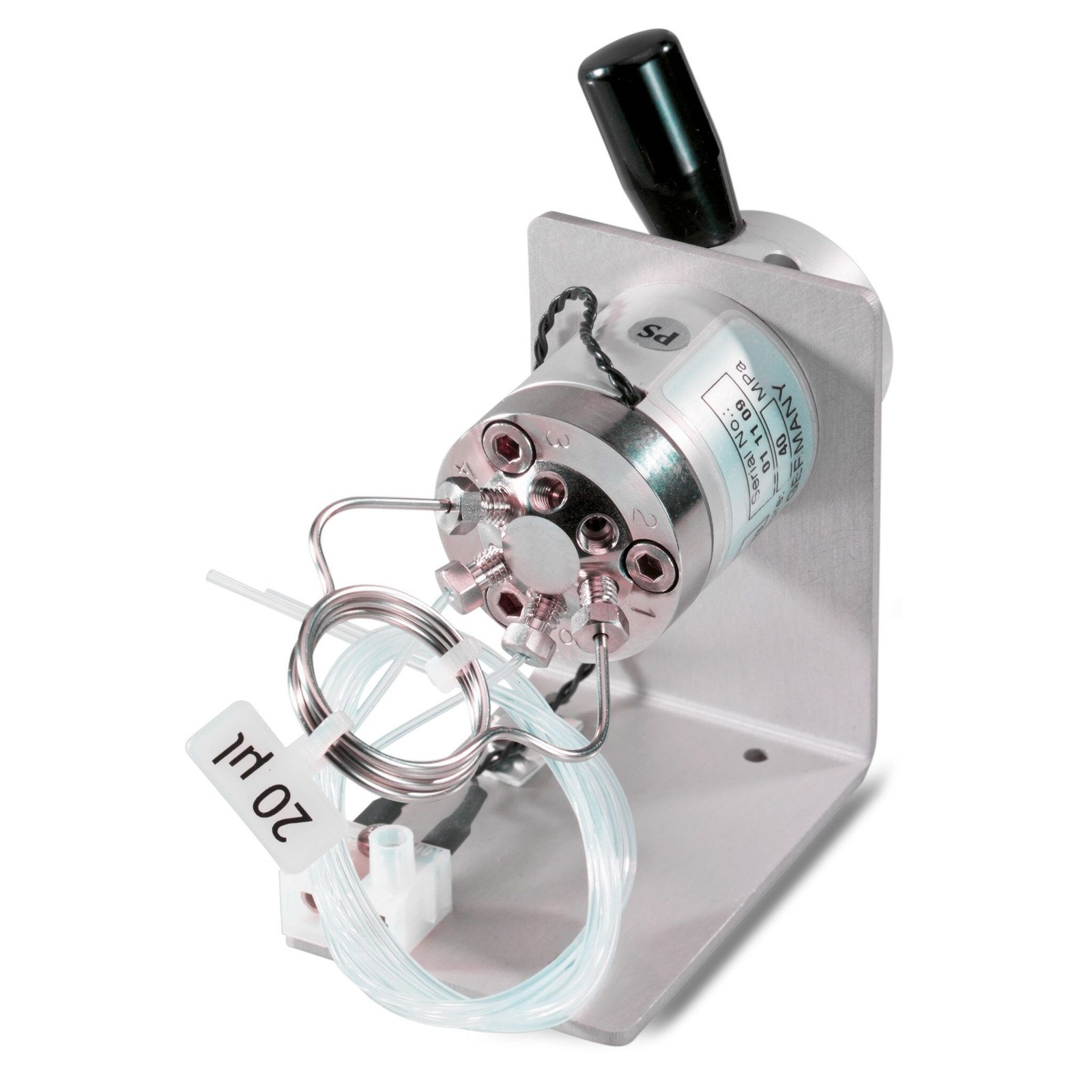

Needle Injection valve from the Sykam S 6000 series for HPLC instruments. The S 6020 has a stainless steel stator, while the S 6120 is the identical valve with an inert PEEK stator.

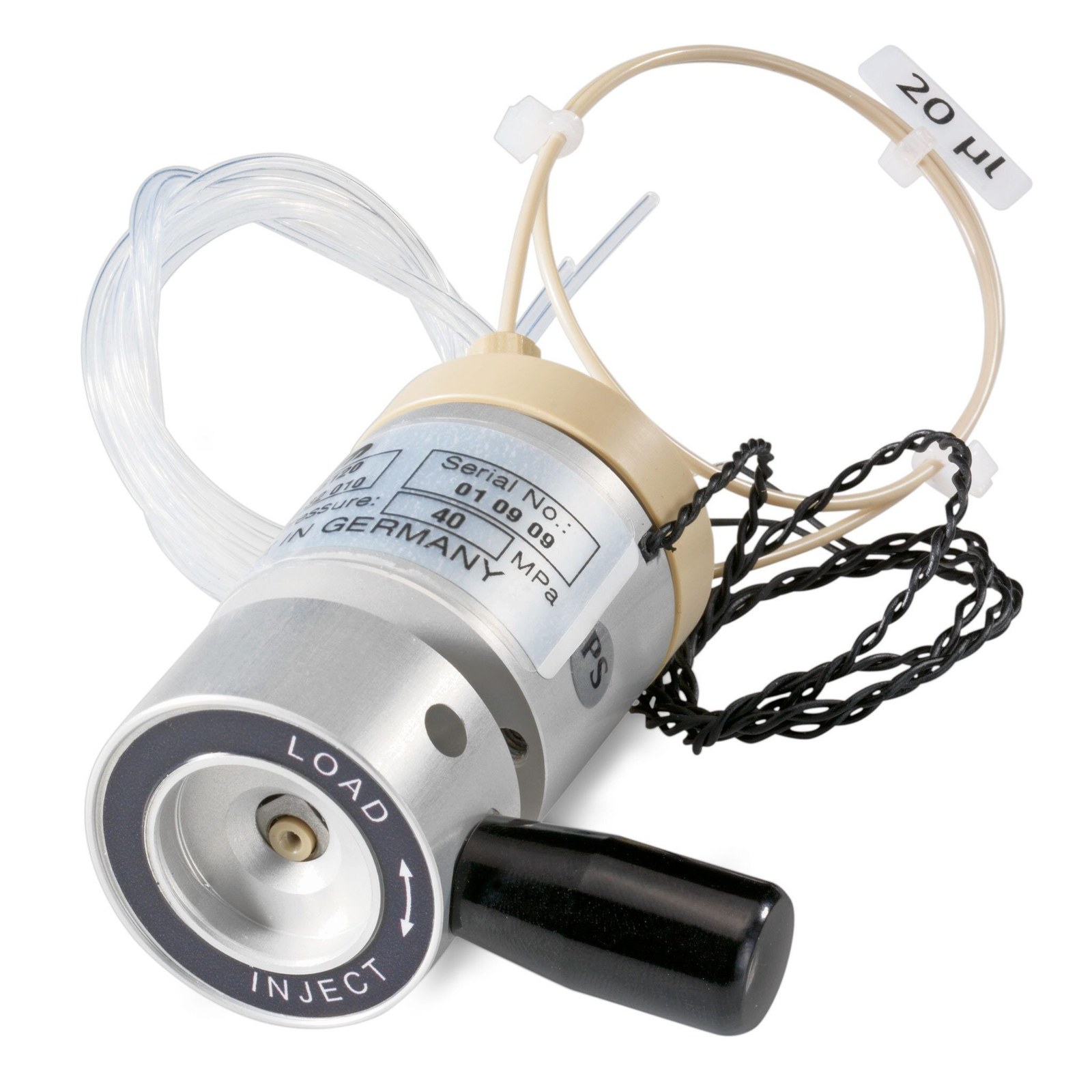

A 2-position valve with a needle injection port on the front side that accepts standard microliter syringes (e.g. Hamilton) or plastic syringes with 0.7 mm needles. A built-in position sensor starts data acquisition precisely at the moment of injection, and NFI technology limits pressure spikes during switching.

A variety of rotor seal materials is available to suit different applications.

Specifications

Technical specifications

6 parameters

Valve

Stator material (S 6020): Stainless steel
Pressure range (S 6020): 400 bar (6000 PSI)
Stator material (S 6120): PEEK (biocompatible)
Pressure range (S 6120): 350 bar (5250 PSI)
Sample loop: 20 µl, others on request
Needle port compatibility: Standard microliter syringes (e.g. Hamilton) or plastic syringes with 0.7 mm needles

Features

Key features

01
Built-in position sensor
Starts data acquisition precisely at the point of injection.
02
No-Flow-Interruption (NFI) technology
Reduces pressure spikes during position switching to a minimum.
03
Rotor seal options
A variety of rotor seal materials is available.
04
Steel and PEEK versions
S 6020 (stainless steel) and S 6120 (PEEK stator).
