Sykam S 6021 / S 6121 Preparative Needle Injection HPLC Valve

Sykam S 6021 / S 6121 preparative needle injection valve for HPLC; stainless steel and biocompatible PEEK versions, up to 250 bar.

Key specifications

Stator material (S 6021): Stainless steel
Pressure range (S 6021): 250 bar (3750 PSI)
Stator material (S 6121): PEEK (biocompatible)
Pressure range (S 6121): 250 bar (3750 PSI)

Configured to your application by our specialists
Installed and commissioned on site
Training and after-sales support across Jordan, the GCC and MENA

Sykam S 6021 / S 6121 Preparative Needle Injection HPLC Valve

Overview

Product overview

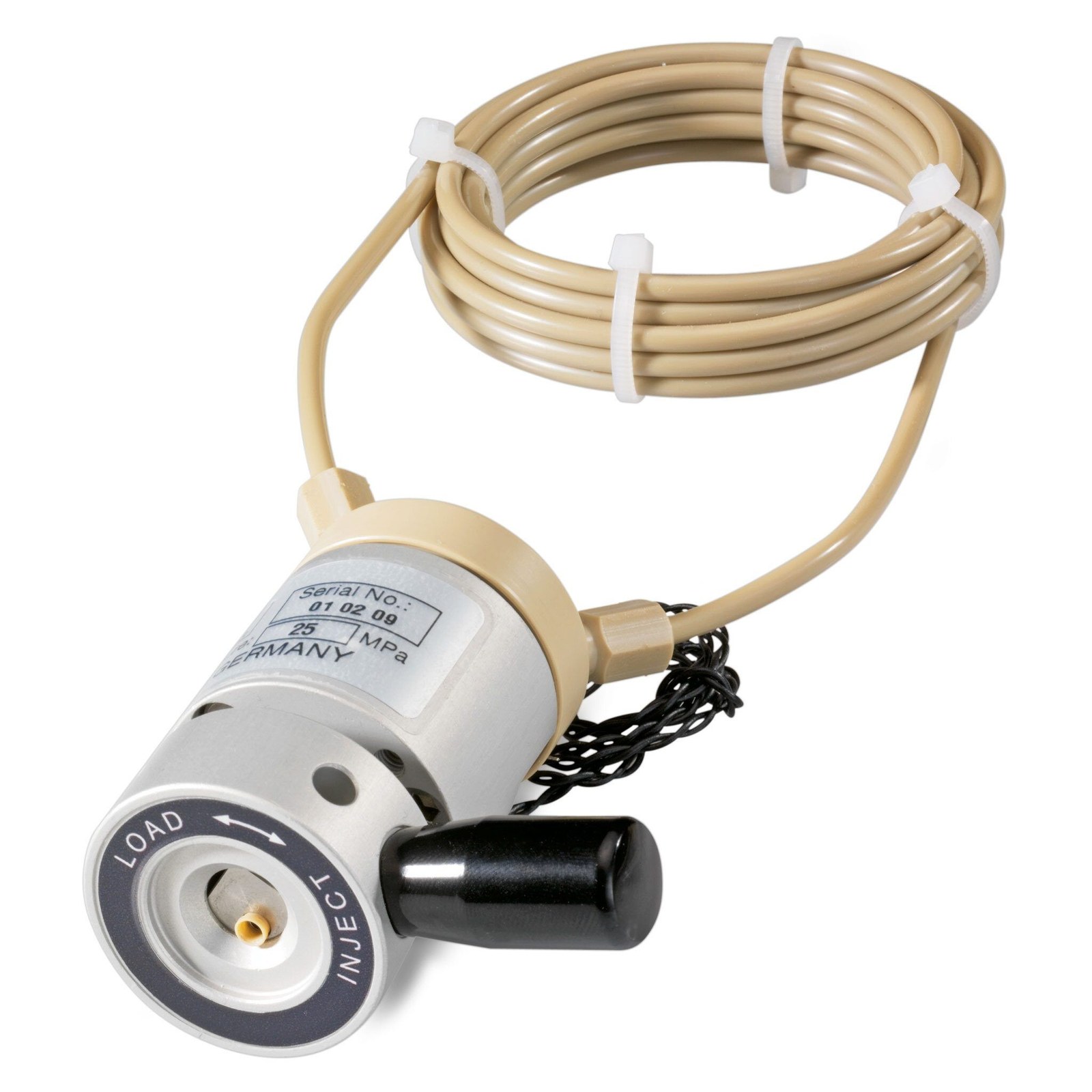

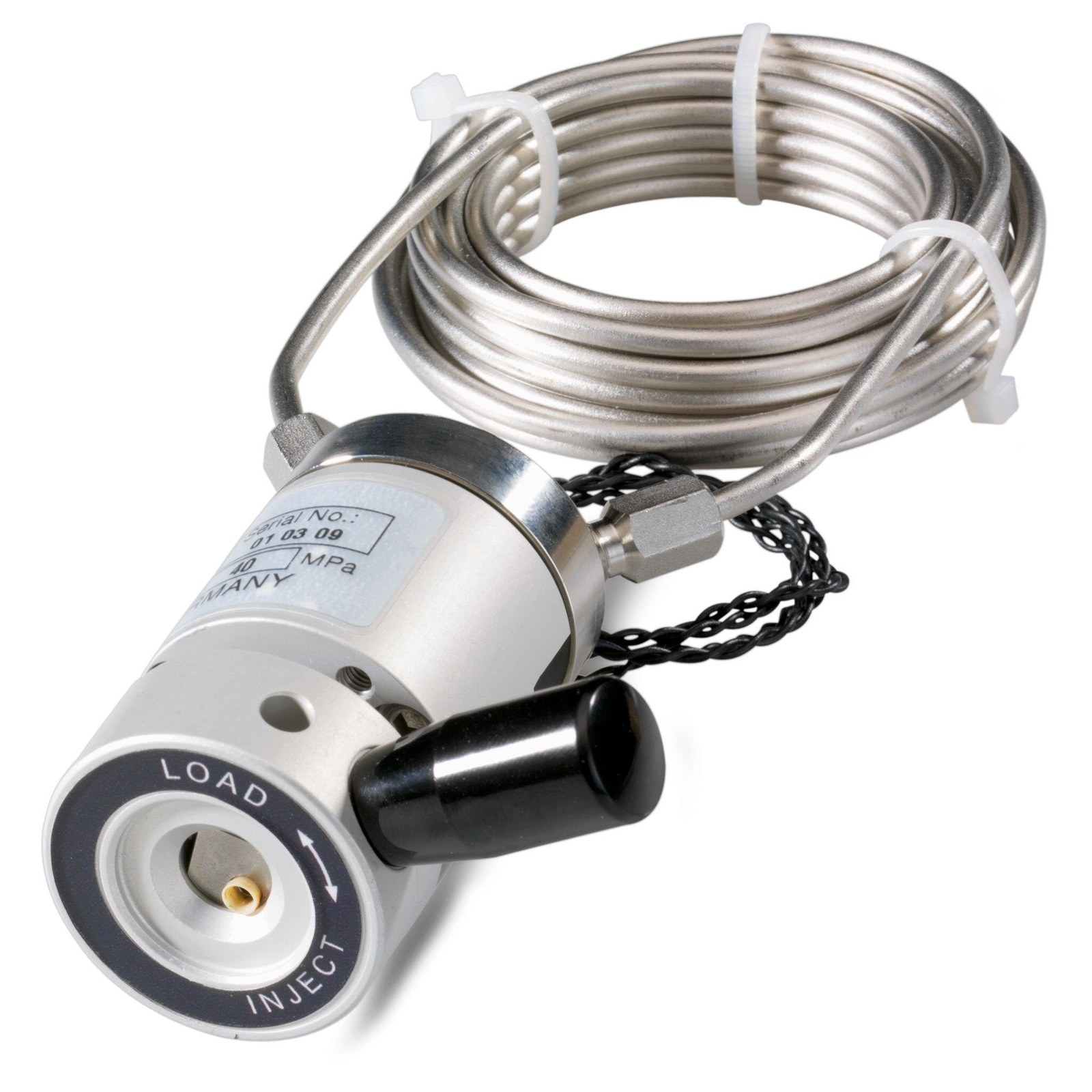

Preparative Needle Injection valve from the Sykam S 6000 series for HPLC instruments. The S 6021 has a stainless steel stator, while the S 6121 is the identical valve with an inert PEEK stator.

A preparative 2-position valve with a needle injection port on the front side and a built-in position sensor that starts data acquisition precisely at the point of injection.

A variety of rotor seal materials is available to suit different applications.

Specifications

Technical specifications

4 parameters

Valve

Stator material (S 6021): Stainless steel
Pressure range (S 6021): 250 bar (3750 PSI)
Stator material (S 6121): PEEK (biocompatible)
Pressure range (S 6121): 250 bar (3750 PSI)

Features

Key features

01
Built-in position sensor
Starts data acquisition precisely at the point of injection.
02
Rotor seal options
A variety of rotor seal materials is available.
03
Steel and PEEK versions
S 6021 (stainless steel) and S 6121 (PEEK stator).
