Sykam S 6051 / S 6151 1×10-Way Preparative Selection HPLC Valve

Sykam S 6051 / S 6151 1×10-way preparative selection valve for HPLC; stainless steel and biocompatible PEEK versions, up to 250 bar.

Key specifications

Stator material (S 6051): Stainless steel
Pressure range (S 6051): 250 bar (3750 PSI)
Stator material (S 6151): PEEK (biocompatible)
Pressure range (S 6151): 250 bar (3750 PSI)

Configured to your application by our specialists
Installed and commissioned on site
Training and after-sales support across Jordan, the GCC and MENA

Sykam S 6051 / S 6151 1×10-Way Preparative Selection HPLC Valve

Overview

Product overview

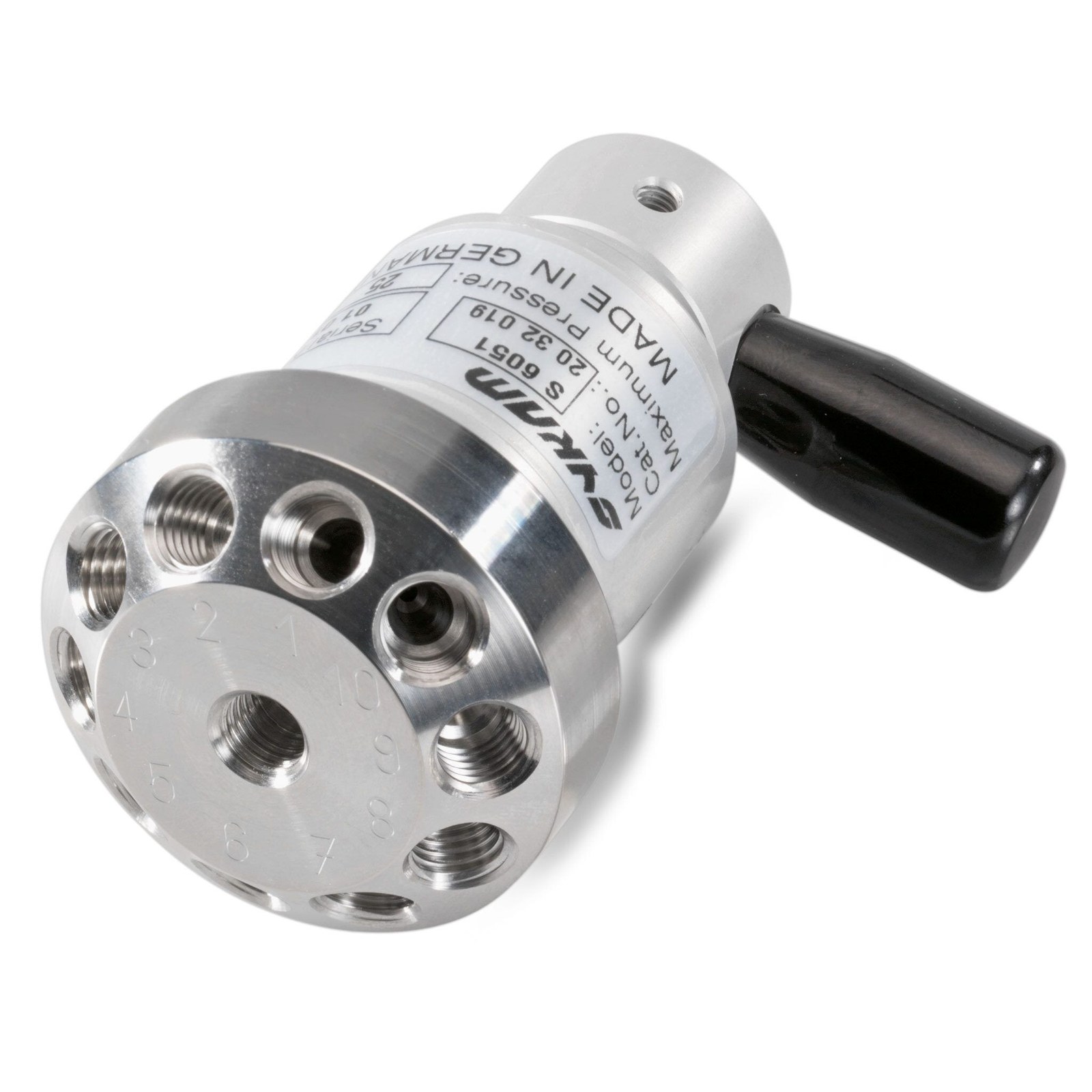

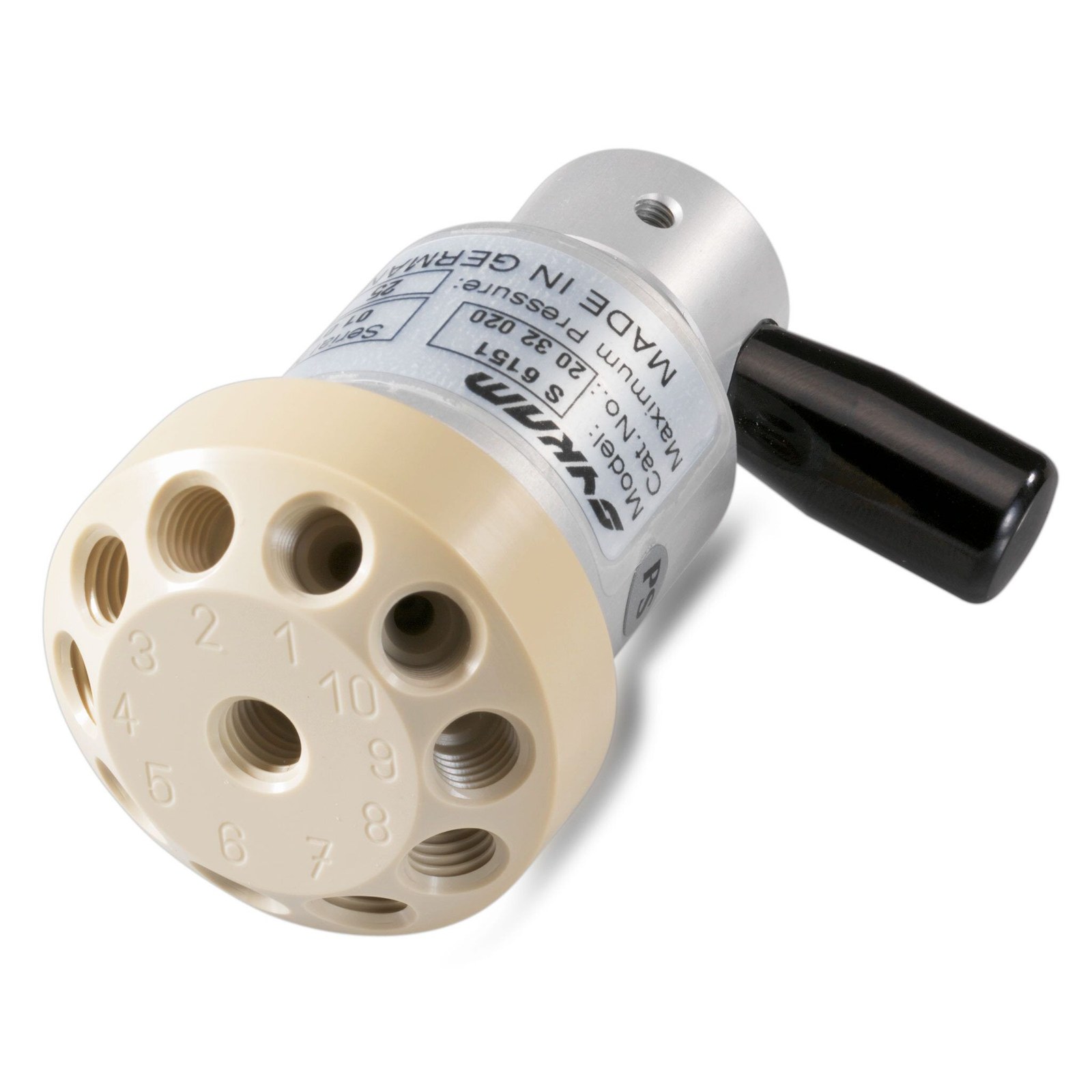

1×10-Way Preparative Selection valve from the Sykam S 6000 series for HPLC instruments. The S 6051 has a stainless steel stator, while the S 6151 is the identical valve with an inert PEEK stator.

A 10-position, 1-way selection switching valve for motor-driven instruments or selection duty. Preparative version. An optional manual switching handle can be supplied when the valve is not used in a motor-driven application.

A variety of rotor seal materials is available to suit different applications.

Specifications

Technical specifications

4 parameters

Valve

Stator material (S 6051): Stainless steel
Pressure range (S 6051): 250 bar (3750 PSI)
Stator material (S 6151): PEEK (biocompatible)
Pressure range (S 6151): 250 bar (3750 PSI)

Features

Key features

01
Optional manual handle
A manual switching handle is available for non-motorised use.
02
Rotor seal options
A variety of rotor seal materials is available.
03
Steel and PEEK versions
S 6051 (stainless steel) and S 6151 (PEEK stator).
