Reference: S 6410

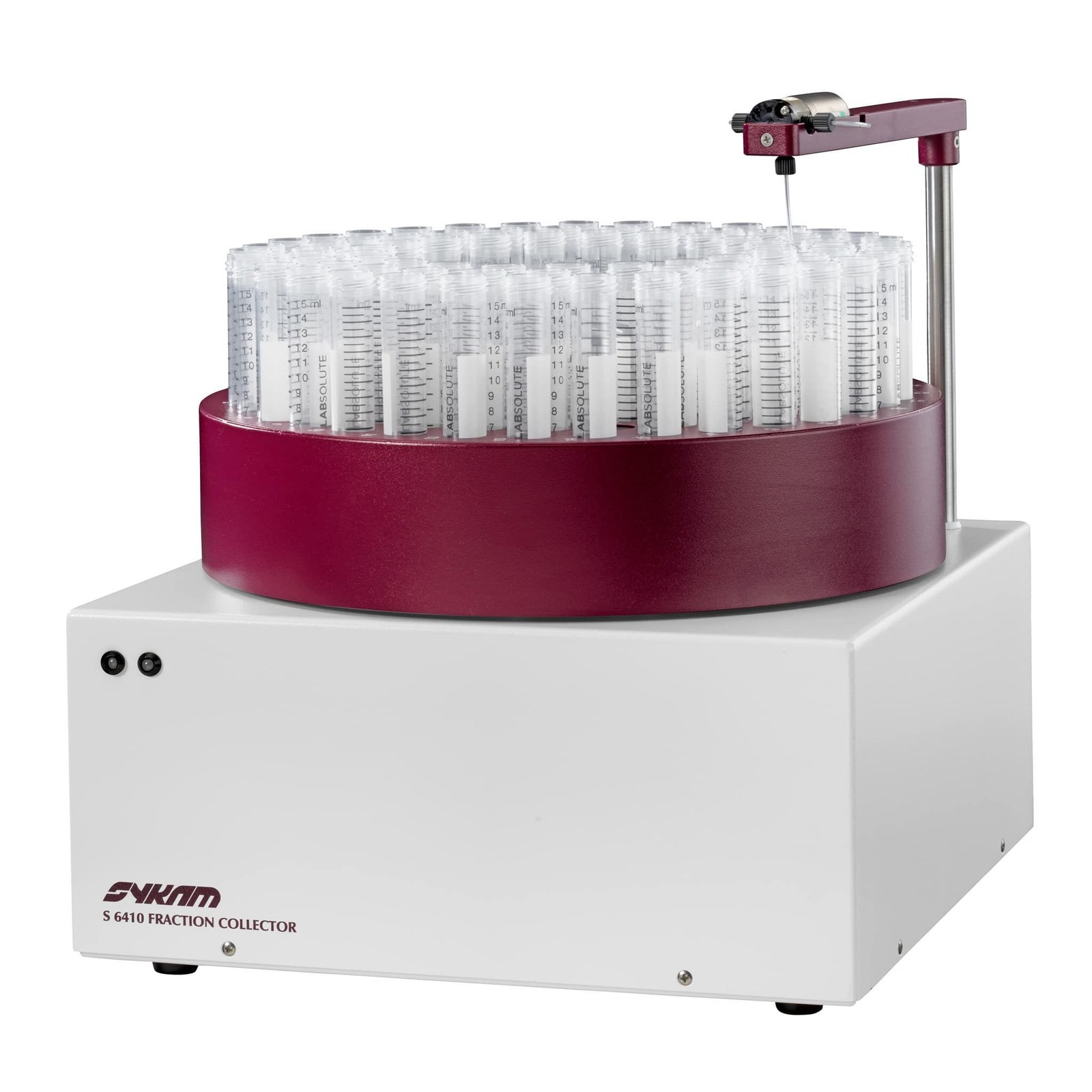

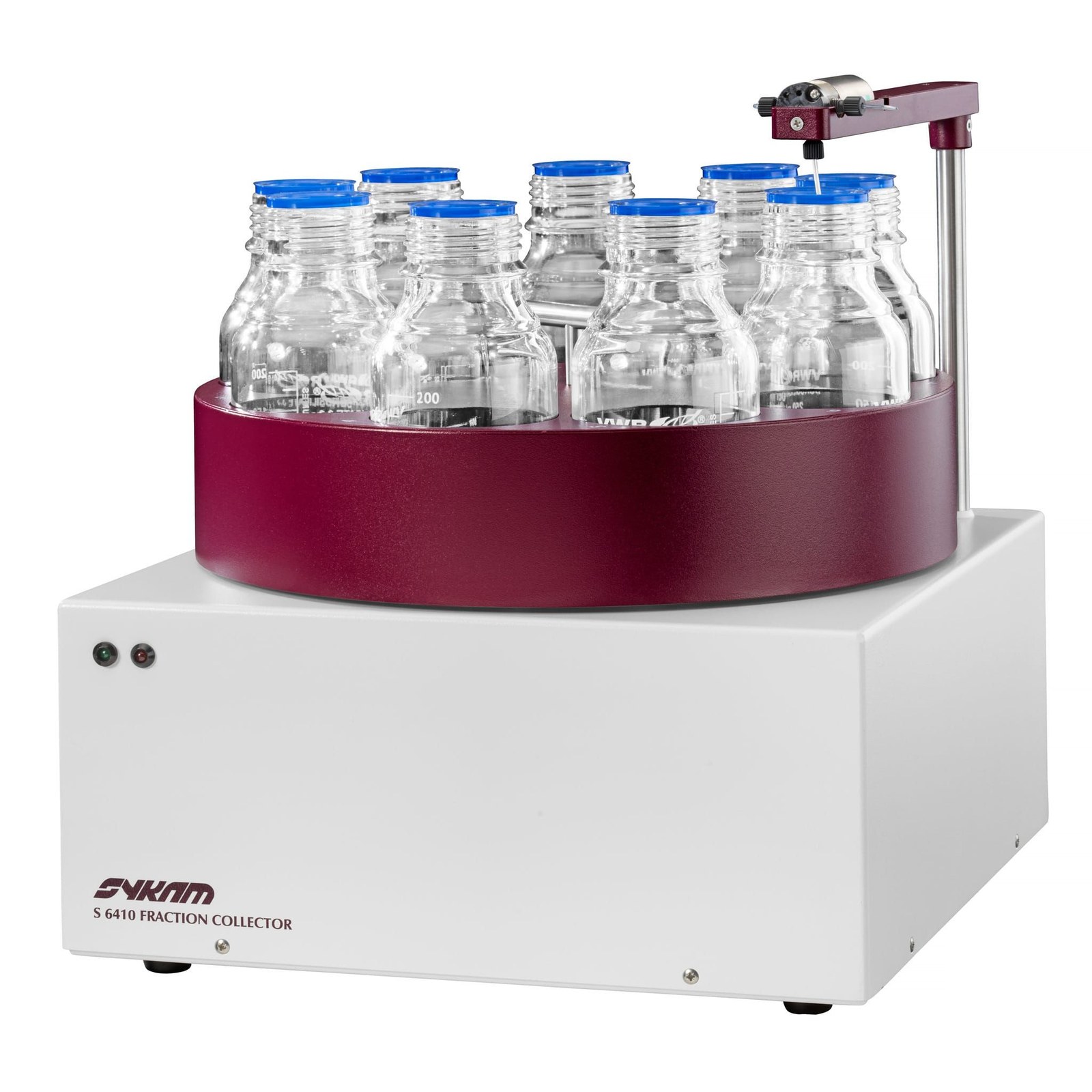

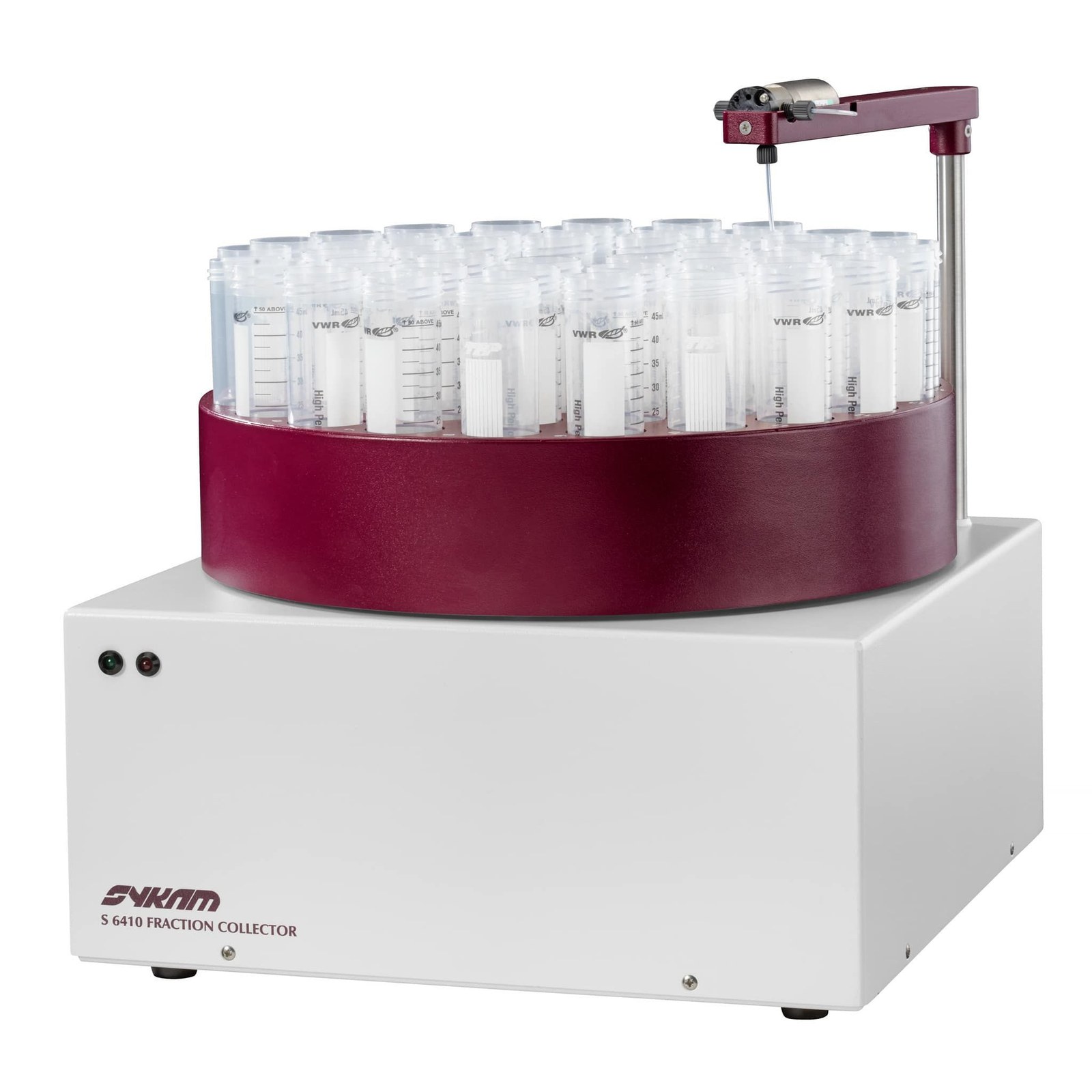

Sykam S 6410 Fraction Collector
Basic fraction collector for preparative LC/HPLC with four interchangeable tube racks and RS-232 or digital I/O control.
Key specifications
- Collector rack 1
- 81 x 14 ml tubes (diameter 16 mm)
- Collector rack 2
- 45 x 50 ml tubes (diameter 30 mm)
- Collector rack 3
- 9 x 250 ml bottles (diameter 71 mm)
- Other rack dimensions
- Available on request
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Sykam S 6410 Fraction Collector
Request a quoteOverview
Product overview
The S 6410 is an easy-to-use basic fraction collector for preparative LC/HPLC. A choice of four interchangeable tube racks and simple digital I/O and RS-232 control allow easy integration with virtually any preparative chromatography system.
Standard racks hold 81 x 14 ml tubes, 45 x 50 ml tubes or 9 x 250 ml bottles, other rack sizes are available on request, and the maximum flow rate is 100 ml/min.
Specifications
Technical specifications
8 parameters
Racks
- Collector rack 1
- 81 x 14 ml tubes (diameter 16 mm)
- Collector rack 2
- 45 x 50 ml tubes (diameter 30 mm)
- Collector rack 3
- 9 x 250 ml bottles (diameter 71 mm)
- Other rack dimensions
- Available on request
Control
- RS232
- Collect/drain, init position, next position, previous position, goto position, error reporting
- Digital I/O
- Collect/drain, init position, next position, previous position, error output
Instrument
- Wetted materials
- PEEK, PVDF
- Max. flow rate
- 100 ml/min
Features
Key features
- 01
Interchangeable racks
81 x 14 ml, 45 x 50 ml or 9 x 250 ml.
- 02
Easy integration
RS-232 and digital I/O control.
- 03
Max. flow rate 100 ml/min
Wetted materials PEEK and PVDF.
