Reference: S 6510
Sykam S 6510 Automatic Valve Actuator
Automatic actuator that can drive any multiport switching valve of the Sykam S 6000 or S 6800 series; USB, RS232 or TTL control.
Key specifications
- Number of valves
- 1
- Valve type
- Any valve of the Sykam S 6000 and S 6800 series
- Wetted materials
- Depending on valve type
- Max. pressure
- Depending on valve type
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Sykam S 6510 Automatic Valve Actuator
Request a quoteOverview
Product overview

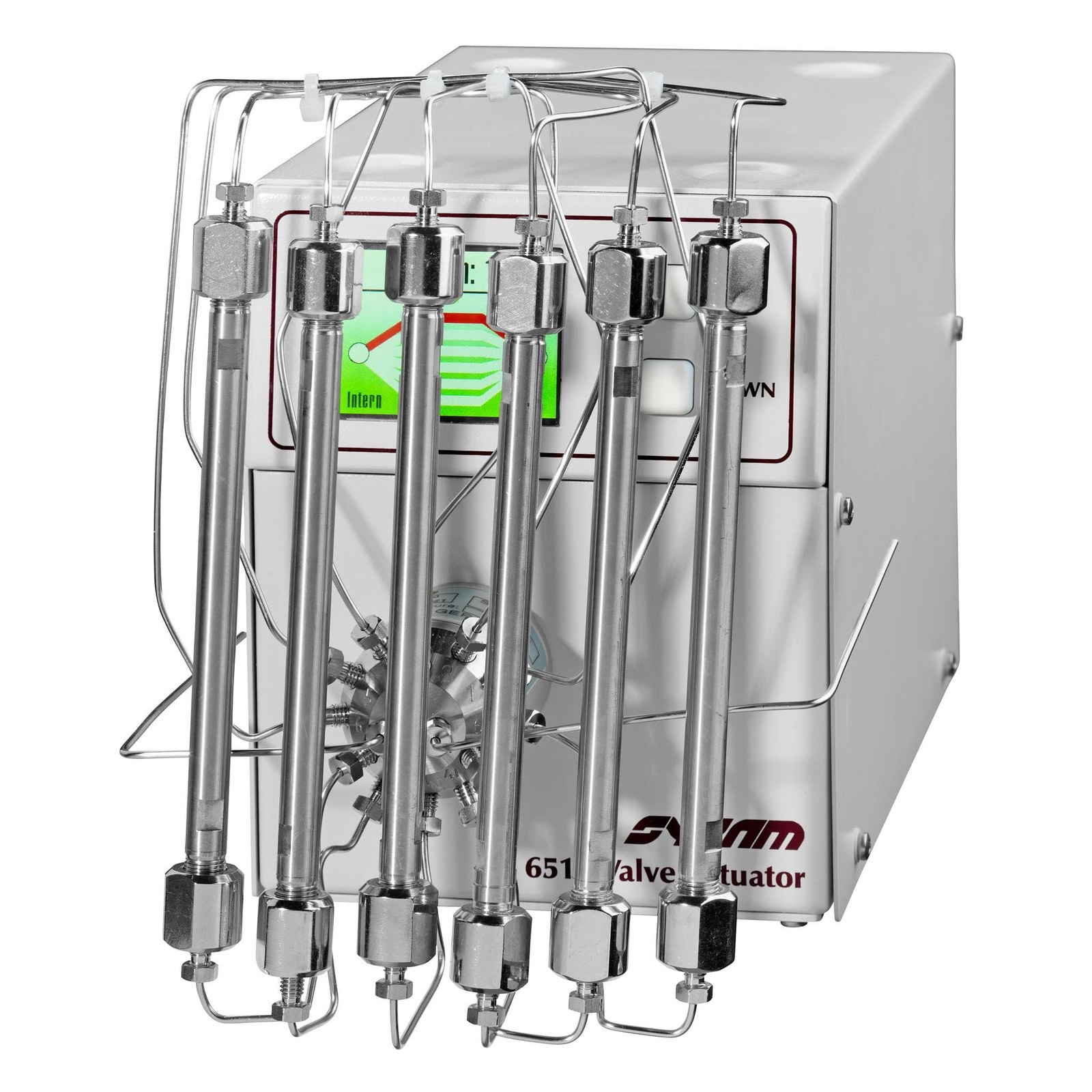

The S 6510 Automatic Valve Actuator can be configured with any multiport switching valve of the Sykam S 6000 or S 6800 series. It is part of some basic S 700 preparative HPLC configurations and can replace a fraction collector when combined with a multiport valve from the S 6800 series.
It can also be used as a stand-alone unit, and USB, RS232 and TTL control allow flexible integration with chromatography systems from other brands.
Specifications
Technical specifications
6 parameters
Actuator
- Number of valves
- 1
- Valve type
- Any valve of the Sykam S 6000 and S 6800 series
- Wetted materials
- Depending on valve type
- Max. pressure
- Depending on valve type
Control
- Control
- USB, RS232, digital I/O
Power
- Power supply
- 100 – 240 V, 50 – 60 Hz
Features
Key features
- 01
Works with S 6000 and S 6800 valves
One valve per actuator.
- 02
Multiple control interfaces
USB, RS232, digital I/O.
- 03
Stand-alone use
Integrates with other brands of chromatography systems.
