Reference: S 6515

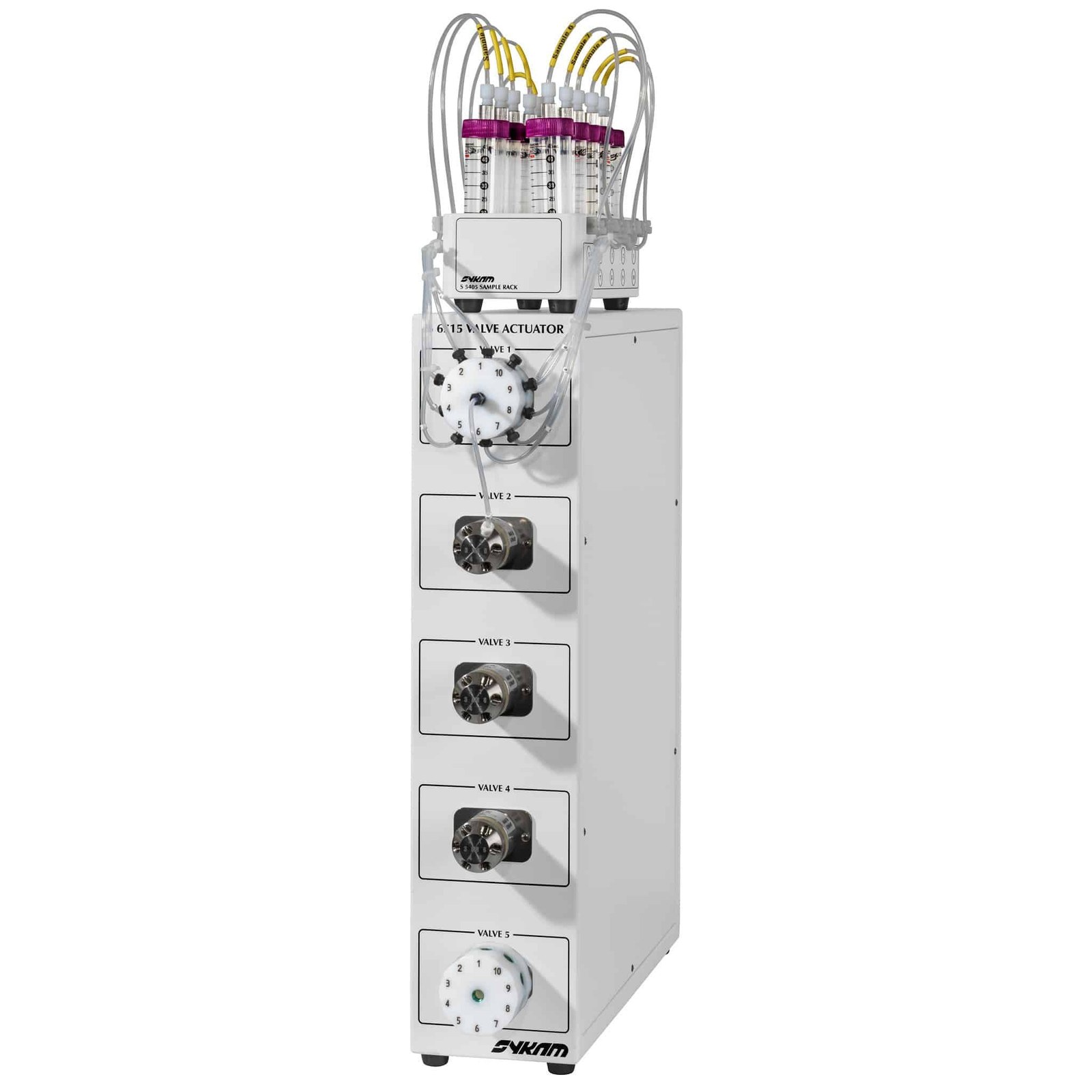

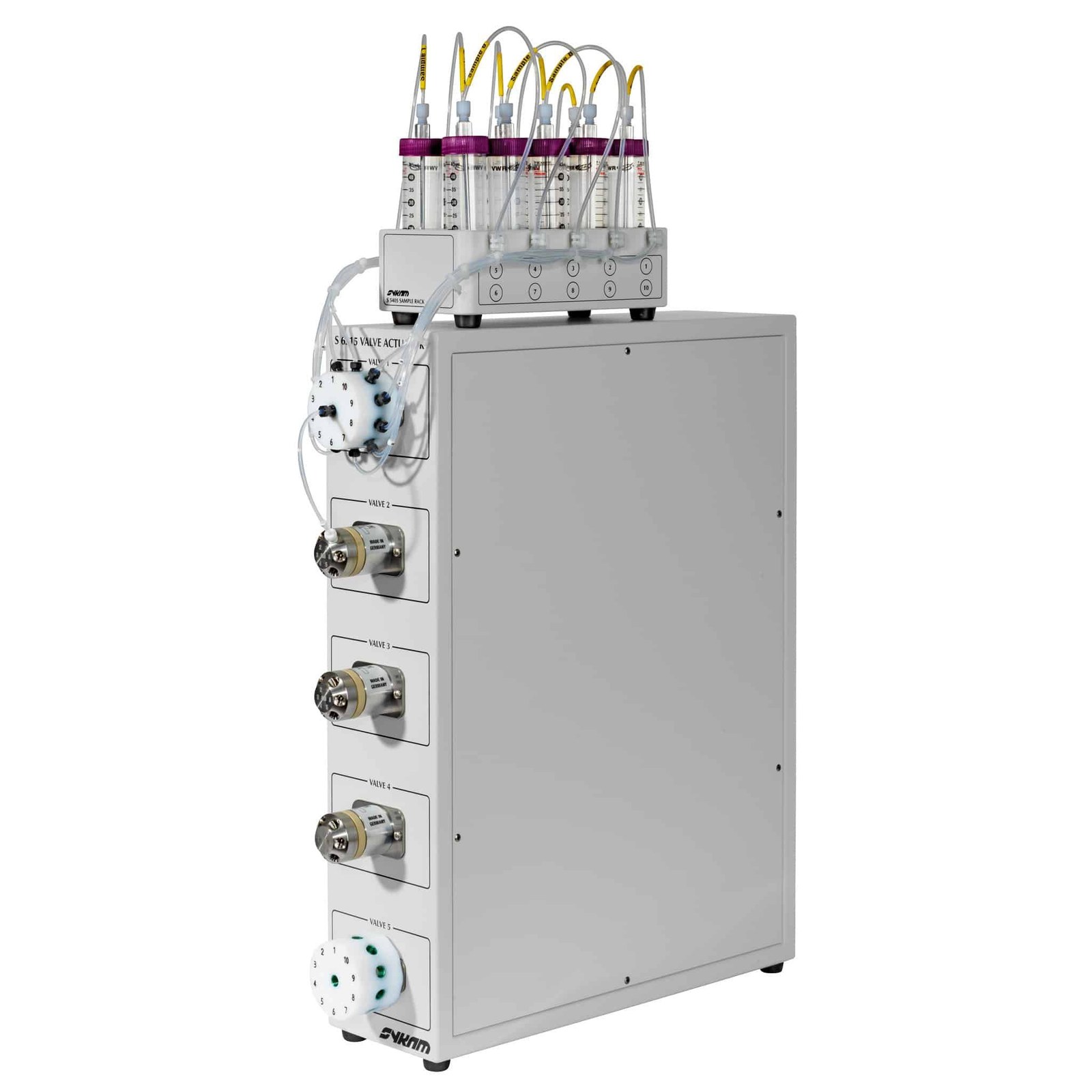

Sykam S 6515 Multiple Valve Actuator
Automatic actuator for up to 5 independent multiport switching valves from the Sykam S 6000 or S 6800 series.
Key specifications
- Number of valves
- Up to 5 valves
- Valve type
- Any valve of the Sykam S 6000 and S 6800 series
- Wetted materials
- Depending on valve type
- Max. pressure
- Depending on valve type
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Sykam S 6515 Multiple Valve Actuator
Request a quoteOverview
Product overview
The S 6515 Multiple Valve Actuator can be configured with up to 5 independent multiport switching valves from the Sykam S 6000 or S 6800 series. It is part of the S 700 preparative HPLC systems and automates flow-path switching, for example column switching, reversing flow direction, eluent recycling, sample loading and fraction collection.
It can also run as a stand-alone unit, and RS232 and TTL control allow integration with chromatography systems from other brands.
Specifications
Technical specifications
6 parameters
Actuator
- Number of valves
- Up to 5 valves
- Valve type
- Any valve of the Sykam S 6000 and S 6800 series
- Wetted materials
- Depending on valve type
- Max. pressure
- Depending on valve type
Control
- Control
- Manual, RS232, digital I/O
Power
- Power supply
- 100 – 240 V, 50 – 60 Hz
Features
Key features
- 01
Up to 5 valves
Independent multiport switching valves.
- 02
Flow-path automation
Column switching, reversed flow, eluent recycling, sample loading, fractionation.
- 03
RS232 and TTL control
Integrates with other brands.
