Reference: S 681x

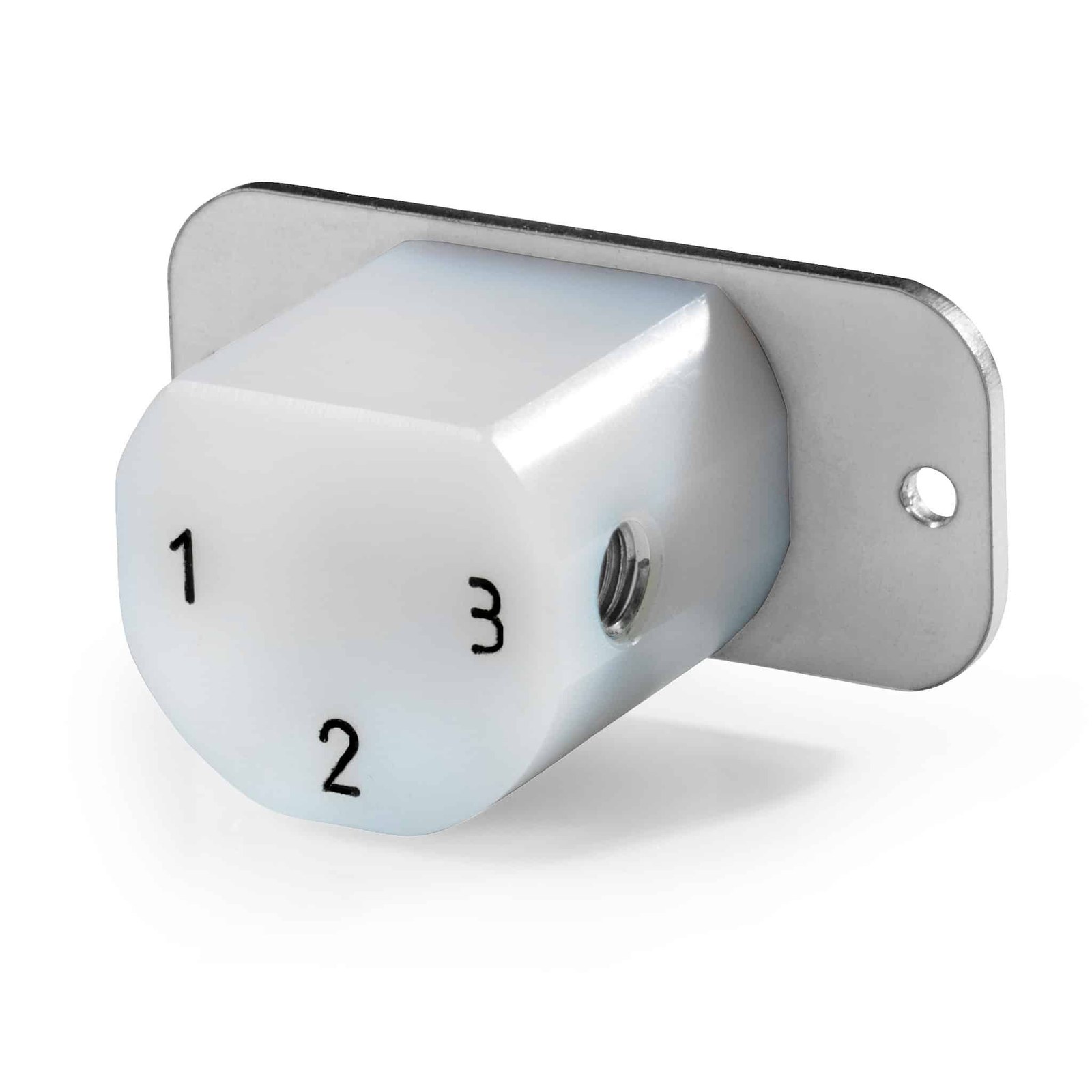

Sykam S 681x 3/2-way Preparative LC Valve
Low-pressure 3/2-way preparative LC valve from the Sykam S 6800 series; chemically inert, maintenance free and available in custom OEM configurations.
Key specifications
- Max. pressure
- 10 bar
- Connection
- 1/4" – 28 UNF (1/16" tubing), M8 (1/8" tubing)
- Wetted materials
- PTFE, PCTFE
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Sykam S 681x 3/2-way Preparative LC Valve
Request a quoteOverview
Product overview
The S 681x is a 3/2-way valve from the low-pressure S 6800 series for preparative LC. The only wetted materials are PTFE and PCTFE, both highly inert, so the rotor and valve body suit aggressive media without degradation of the valve or the liquid.
The design uses no sealing parts and is therefore maintenance free. It is available in custom OEM configurations and can be combined with the S 6515 Multiple Valve Actuator.
Specifications
Technical specifications
3 parameters
Valve
- Max. pressure
- 10 bar
- Connection
- 1/4" – 28 UNF (1/16" tubing), M8 (1/8" tubing)
- Wetted materials
- PTFE, PCTFE
Features
Key features
- 01
Chemically inert
Only PTFE and PCTFE are wetted.
- 02
Maintenance free
Robust design without sealing parts.
- 03
OEM configurations
Available in custom OEM configurations.
