Reference: S 722

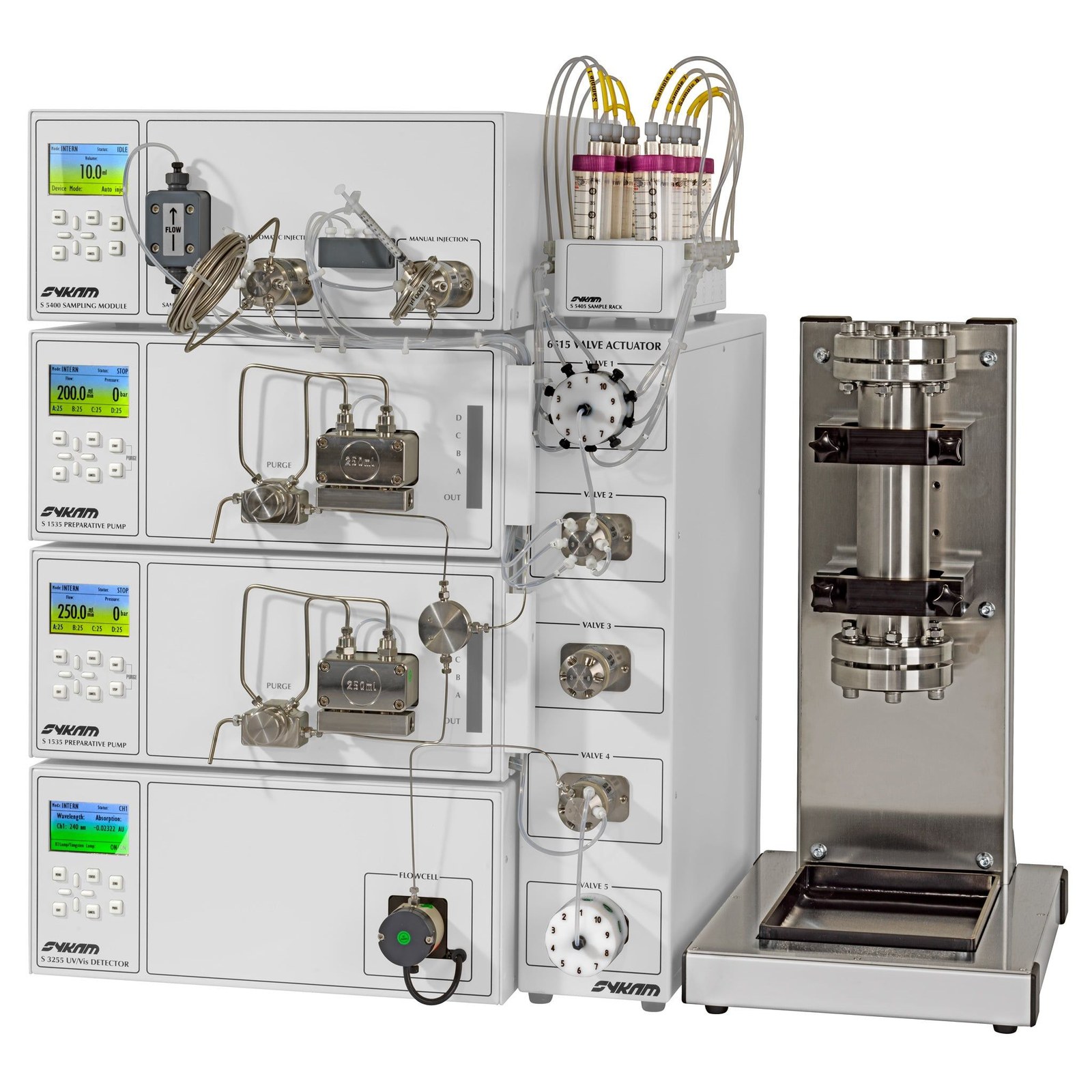

Sykam S 722 Preparative Binary Gradient HPLC System – PEEK Version
Preparative binary gradient LC system with a PEEK flow path, two S 1535 pumps with PEEK pump heads, S 5400 sampling module and S 3255 UV/Vis detector; 350 bar.
Key specifications
- Flow rate range
- up to 150 or 250 ml/min
- Max. pressure
- 350 bar
- Gradient
- High-pressure mixing binary gradient
- Flow path material
- PEEK
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Sykam S 722 Preparative Binary Gradient HPLC System – PEEK Version
Request a quoteOverview
Product overview
The S 722 is a preparative binary gradient LC system with a PEEK (metal-free, biocompatible) flow path, built on two S 1535 pumps with PEEK pump heads. It is completed by the S 5400 sampling module (10 ml and 2 ml standard sample loops) and the S 3255 variable-wavelength UV/Vis detector (190 – 800 nm, 0.5 mm path length), and is controlled with PrepCon software.
It is the bio-inert PEEK version of the S 712 and suits preparative biochromatography such as ion exchange, hydrophobic interaction, immobilized chelate (IMAC, HisTag) and immunoaffinity chromatography, with high-salt, high-molarity buffers over the complete pH range.
The system can be expanded with valves, eluent monitors, fraction collectors and additional detectors.
Specifications
Technical specifications
7 parameters
System
- Flow rate range
- up to 150 or 250 ml/min
- Max. pressure
- 350 bar
- Gradient
- High-pressure mixing binary gradient
- Flow path material
- PEEK
- Detector
- UV/Vis (190 – 800 nm), pathlength 0.5 mm
- Sample injection
- Automatic, manual, 10 ml sample loop, 2 ml sample loop
- Pump
- two S 1535 pumps with PEEK pump heads
Features
Key features
- 01
Flow rate range
up to 150 or 250 ml/min
- 02
Pressure
350 bar
- 03
Gradient
High-pressure mixing binary gradient
- 04
Expandable
Add valves, eluent monitors, fraction collectors and detectors.
From order to operation
We stay with the instrument after it arrives
Al-Shaker specifies the configuration, documents the system, and supports it across Jordan, the GCC, and MENA.
- 01
Consult
- 02
Plan
- 03
Supply
- 04
Install
- 05
Train
- 06
Support
