Reference: S 724

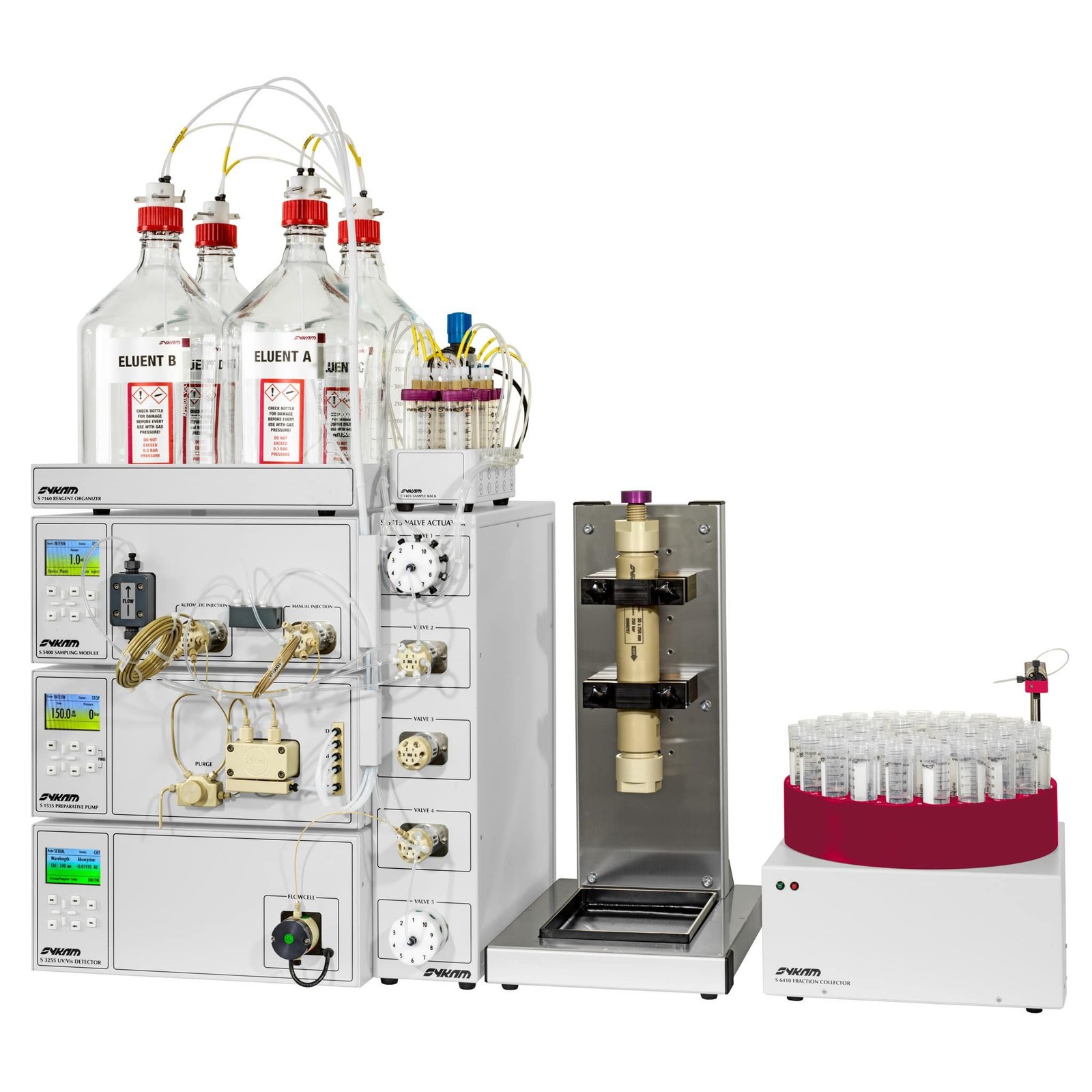

Sykam S 724 Preparative Quaternary Gradient HPLC System – PEEK Version

Preparative quaternary gradient LC system with a PEEK flow path, S 1535 pump (PEEK version), S 5400 sampling module and S 3255 UV/Vis detector; 350 bar.

Key specifications

Flow rate range: up to 150 or 250 ml/min
Max. pressure: 350 bar
Gradient: Low-pressure mixing quaternary gradient with in-line vacuum eluent degassing
Flow path material: PEEK

Configured to your application by our specialists
Installed and commissioned on site
Training and after-sales support across Jordan, the GCC and MENA

Sykam S 724 Preparative Quaternary Gradient HPLC System – PEEK Version

Overview

Product overview

The S 724 is a preparative quaternary gradient LC system with a PEEK (metal-free, biocompatible) flow path, built on S 1535 pump (PEEK version). It is completed by the S 5400 sampling module (10 ml and 2 ml standard sample loops) and the S 3255 variable-wavelength UV/Vis detector (190 – 800 nm, 0.5 mm path length), and is controlled with PrepCon software.

It suits preparative biochromatography such as ion exchange, hydrophobic interaction, immobilized chelate (IMAC, HisTag) and immunoaffinity chromatography, allowing high-salt, high-molarity buffers and complete pH compatibility.

The system can be expanded with valves, eluent monitors, fraction collectors and additional detectors.

Specifications

Technical specifications

7 parameters

System

Flow rate range: up to 150 or 250 ml/min
Max. pressure: 350 bar
Gradient: Low-pressure mixing quaternary gradient with in-line vacuum eluent degassing
Flow path material: PEEK
Detector: UV/Vis (190 – 800 nm), pathlength 0.5 mm
Sample injection: Automatic, manual, 10 ml sample loop, 2 ml sample loop
Pump: S 1535 pump (PEEK version)

Features

Key features

01
Flow rate range
up to 150 or 250 ml/min
02
Pressure
350 bar
03
Gradient
Low-pressure mixing quaternary gradient with in-line vacuum eluent degassing
04
Expandable
Add valves, eluent monitors, fraction collectors and detectors.
