Reference: S 741

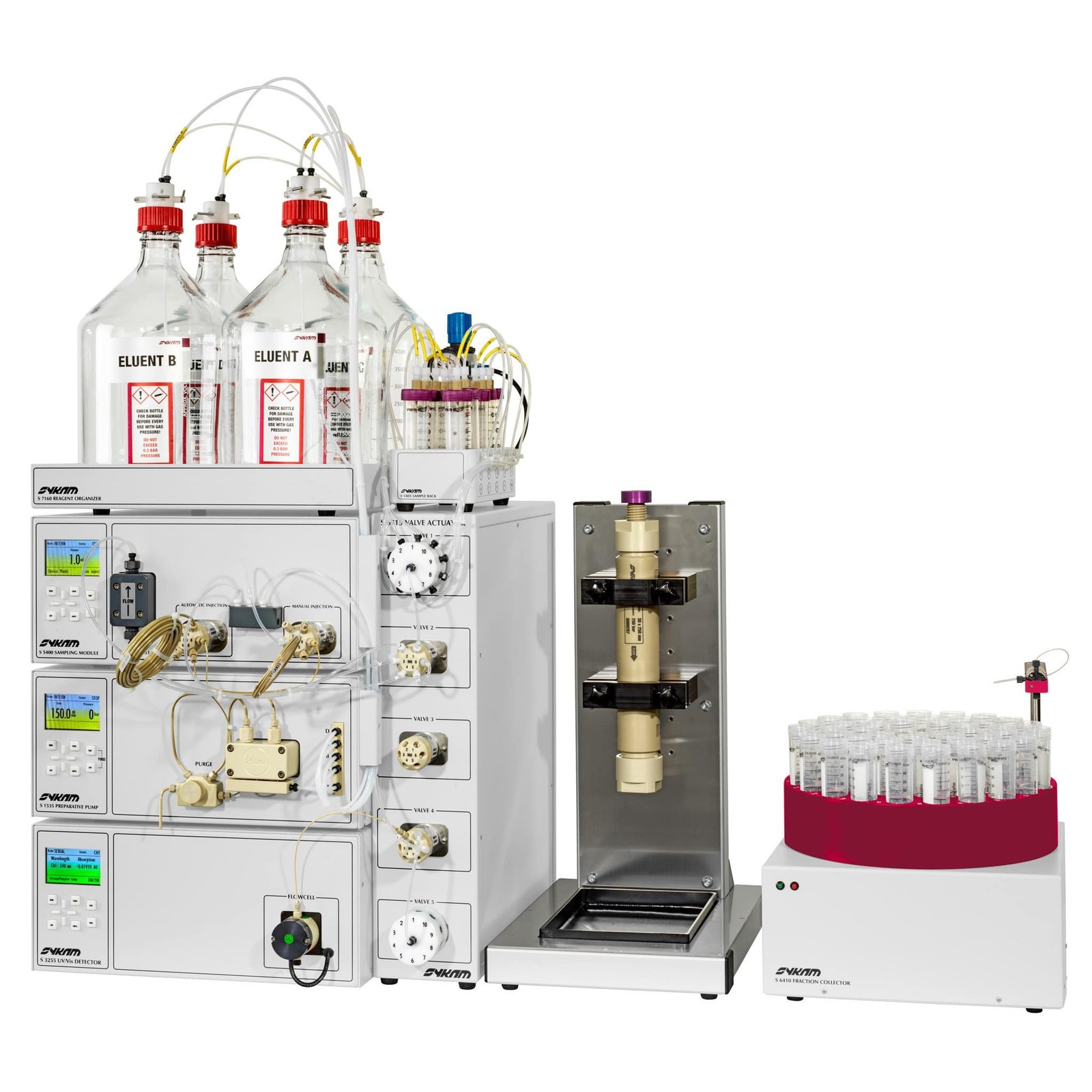

Sykam S 741 Preparative Isocratic HPLC System – PEEK Version
Preparative isocratic LC system with a PEEK flow path, S 1525 pump, S 5400 sampling module and S 3255 UV/Vis detector; 350 bar.
Key specifications
- Flow rate range
- up to 150, 250, 500 or 1000 ml/min
- Max. pressure
- 350 bar
- Gradient
- Isocratic; upgradable with S 8140 low-pressure gradient mixer
- Flow path material
- PEEK
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Sykam S 741 Preparative Isocratic HPLC System – PEEK Version
Request a quoteOverview
Product overview
The S 741 is a preparative isocratic LC system with a PEEK (metal-free, biocompatible) flow path, built on S 1525 pump. It is completed by the S 5400 sampling module (10 ml and 2 ml standard sample loops) and the S 3255 variable-wavelength UV/Vis detector (190 – 800 nm, 0.5 mm path length), and is controlled with PrepCon software.
A PEEK system based on the S 1525 pump in four flow-rate ranges. The external S 8140 low-pressure gradient mixer upgrade converts it to a gradient system.
The system can be expanded with valves, eluent monitors, fraction collectors and additional detectors.
Specifications
Technical specifications
7 parameters
System
- Flow rate range
- up to 150, 250, 500 or 1000 ml/min
- Max. pressure
- 350 bar
- Gradient
- Isocratic; upgradable with S 8140 low-pressure gradient mixer
- Flow path material
- PEEK
- Detector
- UV/Vis (190 – 800 nm), pathlength 0.5 mm
- Sample injection
- Automatic, manual, 10 ml sample loop, 2 ml sample loop
- Pump
- S 1525 pump
Features
Key features
- 01
Flow rate range
up to 150, 250, 500 or 1000 ml/min
- 02
Pressure
350 bar
- 03
Gradient
Isocratic; upgradable with S 8140 low-pressure gradient mixer
- 04
Expandable
Add valves, eluent monitors, fraction collectors and detectors.
