Reference: S 744
Sykam S 744 Preparative Quaternary Gradient HPLC System – PEEK Version
Preparative quaternary gradient LC system with a PEEK flow path, S 1525 pump with S 8140 external gradient mixer, S 5400 sampling module and S 3255 UV/Vis detector; 350 bar (1000 ml/min as 300 or 350 bar version).
Key specifications
- Flow rate range
- up to 150, 250, 500 or 1000 ml/min
- Max. pressure
- 350 bar (1000 ml/min as 300 or 350 bar version)
- Gradient
- Low-pressure mixing quaternary gradient
- Flow path material
- PEEK
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Sykam S 744 Preparative Quaternary Gradient HPLC System – PEEK Version
Request a quoteOverview
Product overview

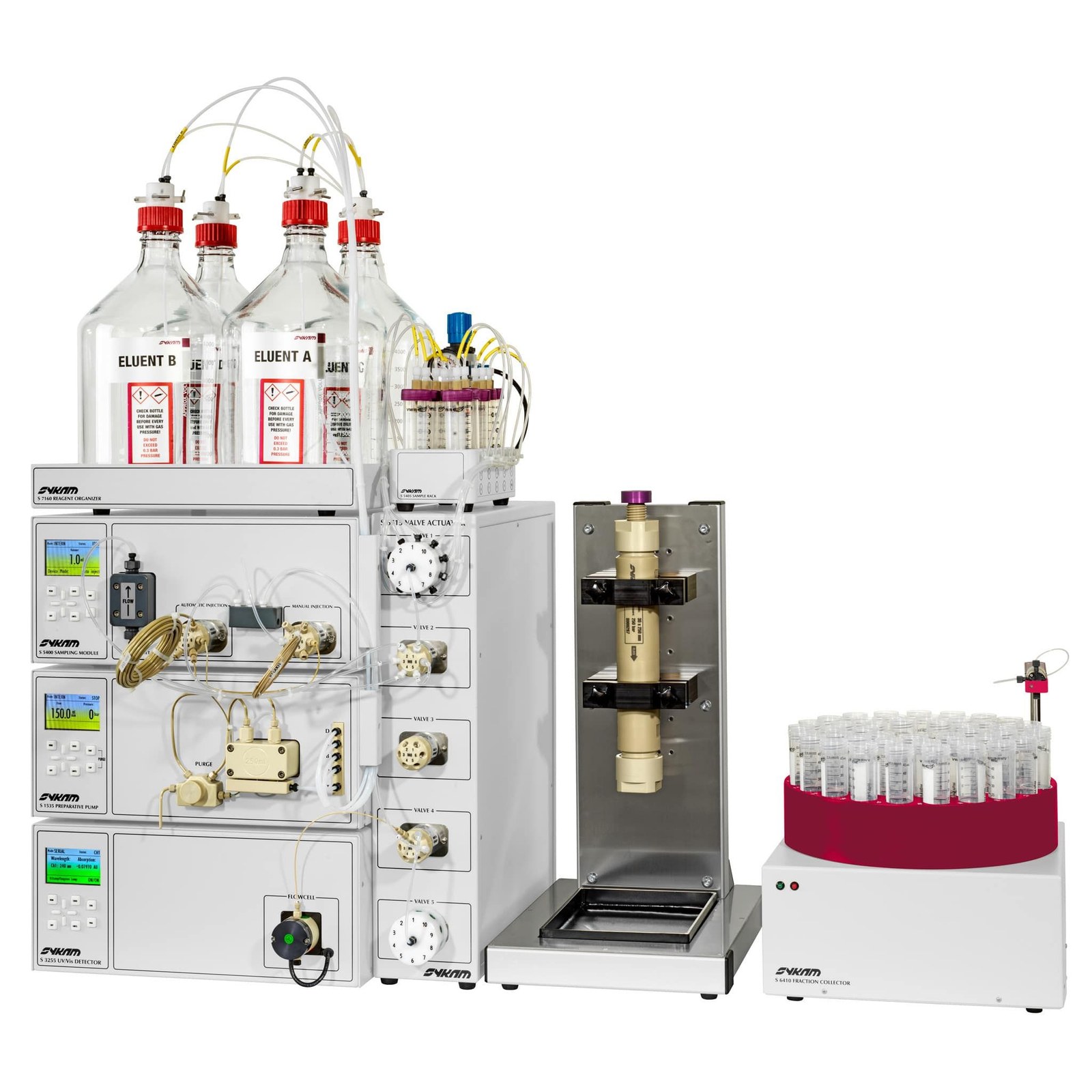

The S 744 is a preparative quaternary gradient LC system with a PEEK (metal-free, biocompatible) flow path, built on S 1525 pump with S 8140 external gradient mixer. It is completed by the S 5400 sampling module (10 ml and 2 ml standard sample loops) and the S 3255 variable-wavelength UV/Vis detector (190 – 800 nm, 0.5 mm path length), and is controlled with PrepCon software.
It suits preparative biochromatography such as ion exchange, hydrophobic interaction, immobilized chelate (IMAC, HisTag) and immunoaffinity chromatography, with high-salt, high-molarity buffers and full pH compatibility, and is suited to serve as a bio-chromatography pilot production system.
The system can be expanded with valves, eluent monitors, fraction collectors and additional detectors.
Specifications
Technical specifications
7 parameters
System
- Flow rate range
- up to 150, 250, 500 or 1000 ml/min
- Max. pressure
- 350 bar (1000 ml/min as 300 or 350 bar version)
- Gradient
- Low-pressure mixing quaternary gradient
- Flow path material
- PEEK
- Detector
- UV/Vis (190 – 800 nm), pathlength 0.5 mm
- Sample injection
- Automatic, manual, 10 ml sample loop, 2 ml sample loop
- Pump
- S 1525 pump with S 8140 external gradient mixer
Features
Key features
- 01
Flow rate range
up to 150, 250, 500 or 1000 ml/min
- 02
Pressure
350 bar (1000 ml/min as 300 or 350 bar version)
- 03
Gradient
Low-pressure mixing quaternary gradient
- 04
Expandable
Add valves, eluent monitors, fraction collectors and detectors.
