Reference: S 7515

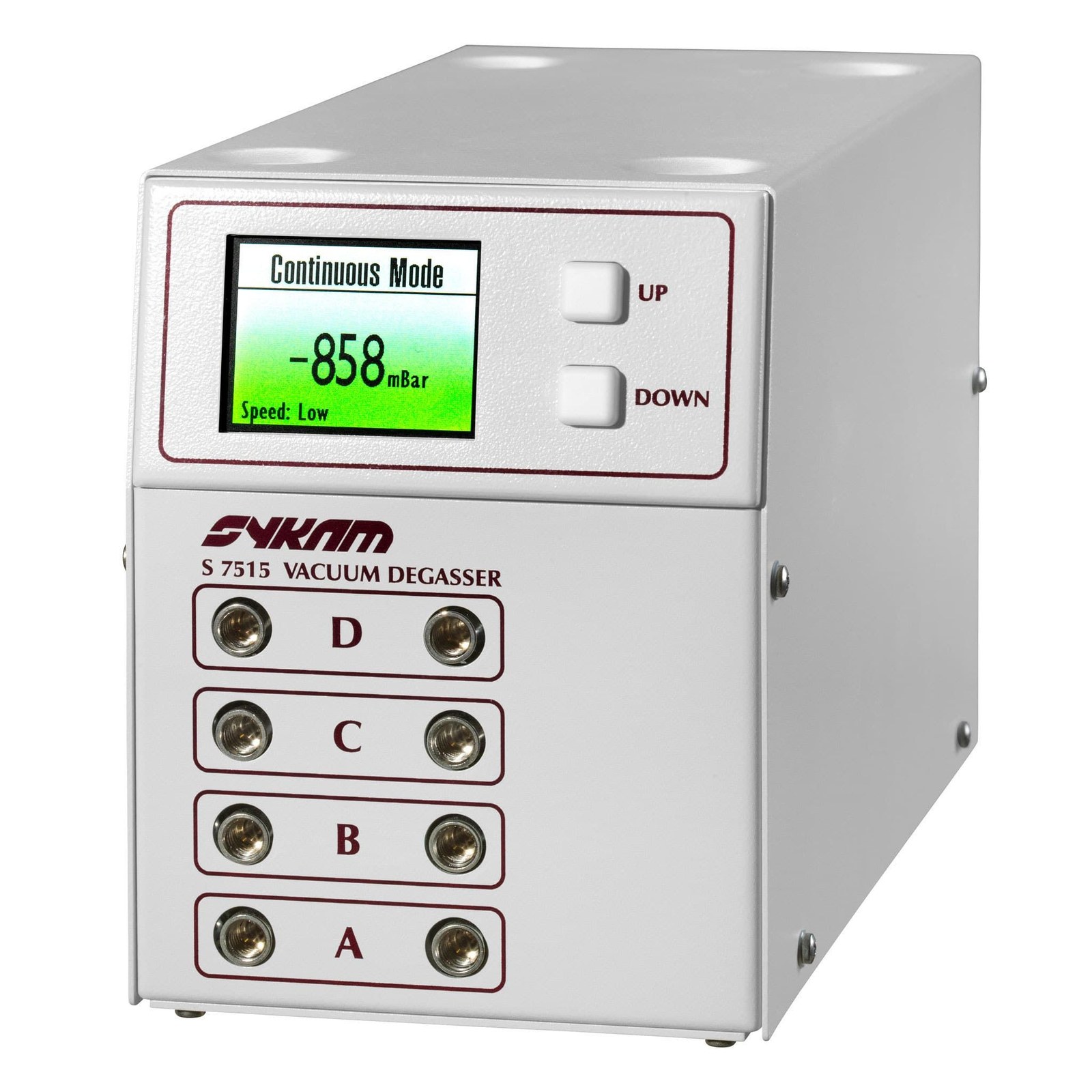

Sykam S 7515 Vacuum Degasser
Vacuum solvent degasser for HPLC with Teflon-AF degassing capillary and a dead volume below 500 µl per channel; 1 to 4 channels.
Key specifications
- Dimensions
- 27 × 12,5 × 16,7 cm
- Number of channels
- 1, 2, 3 or 4 channels
- Wetted materials
- Teflon-AF, Teflon, stainless steel, EPDM
- Dead volume
- < 500 µl per channel
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Sykam S 7515 Vacuum Degasser
Request a quoteOverview
Product overview
The S 7515 is a vacuum solvent degasser for HPLC. It uses Teflon-AF as the degassing capillary, which is more efficient than the standard PTFE usually applied in solvent degassers.
Because a shorter capillary is sufficient, the dead volume is significantly lower than with standard PTFE, at less than 500 µl per channel. It is part of the S 500 and S 600 HPLC system ranges and is offered in 1- to 4-channel versions.
Specifications
Technical specifications
5 parameters
Instrument
- Dimensions
- 27 × 12,5 × 16,7 cm
- Number of channels
- 1, 2, 3 or 4 channels
- Wetted materials
- Teflon-AF, Teflon, stainless steel, EPDM
Performance
- Dead volume
- < 500 µl per channel
- Degassing efficiency
- > 80% at 1.0 ml/min (water)
Features
Key features
- 01
Teflon-AF capillary
More efficient than standard PTFE.
- 02
Low dead volume
Less than 500 µl per channel.
- 03
1 to 4 channels
Versions with one to four channels.
