Reference: AB / AB-R / AB-CE series
ViBRA AB Series Precision Balances
Affordable ViBRA precision balances from 320 g to 12 kg with back-lit LCD, robust housing, large pan and standard RS232C.
Key specifications
- Capacity range
- 320 g to 12000 g
- Readability range
- 0.001 g to 0.1 g
- Tare
- Zero to full weighing range
- Span adjustment
- AB: manual with external weight; AB-R: semi-automatic with built-in weight
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
ViBRA AB Series Precision Balances
Request a quoteOverview
Product overview
The AB series is ViBRA's entry point into high-grade weighing, covering 320 g to 12000 g with readability from 0.001 g to 0.1 g. It is offered with external calibration weight (AB) or built-in weight (AB-R), and in CE versions.

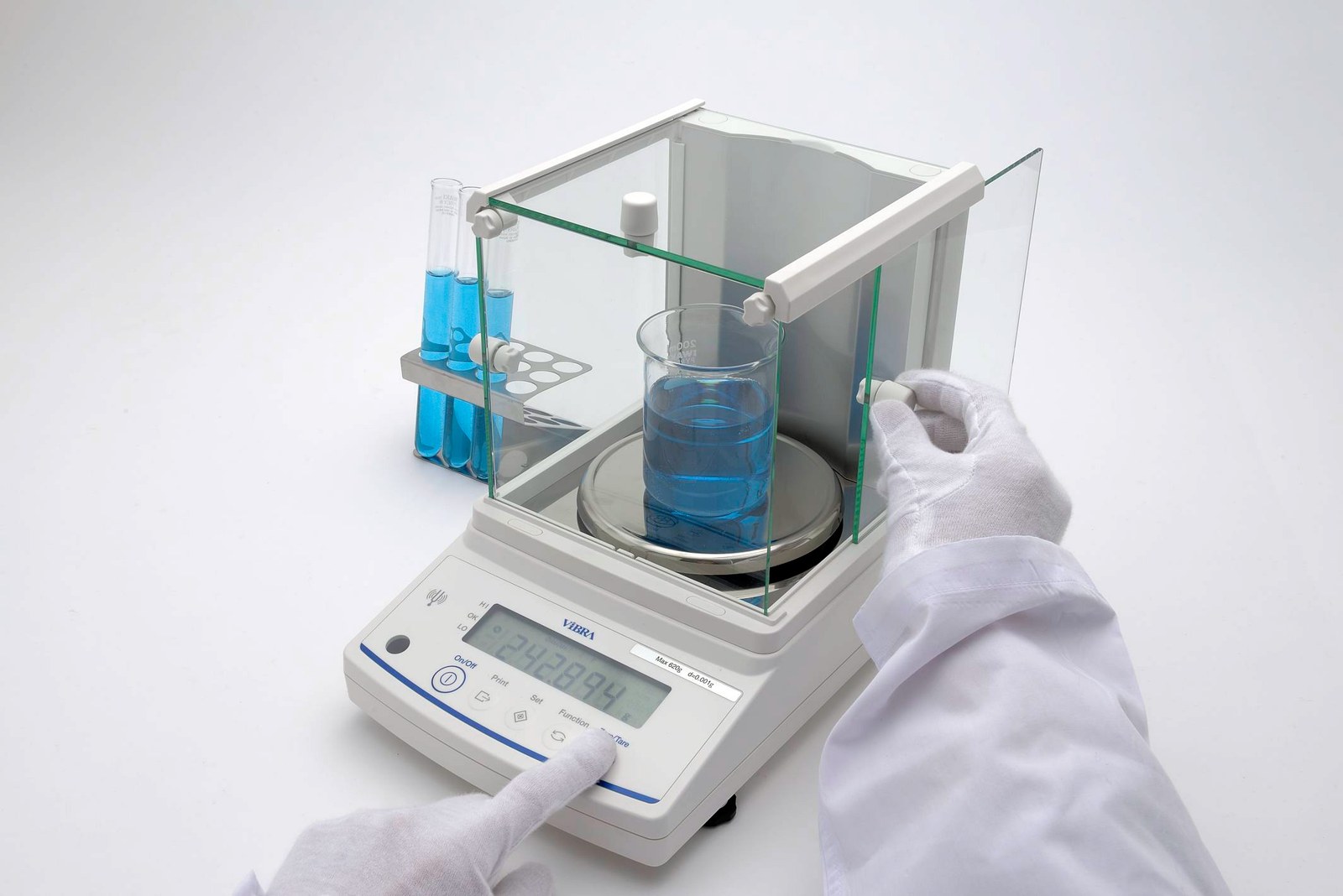

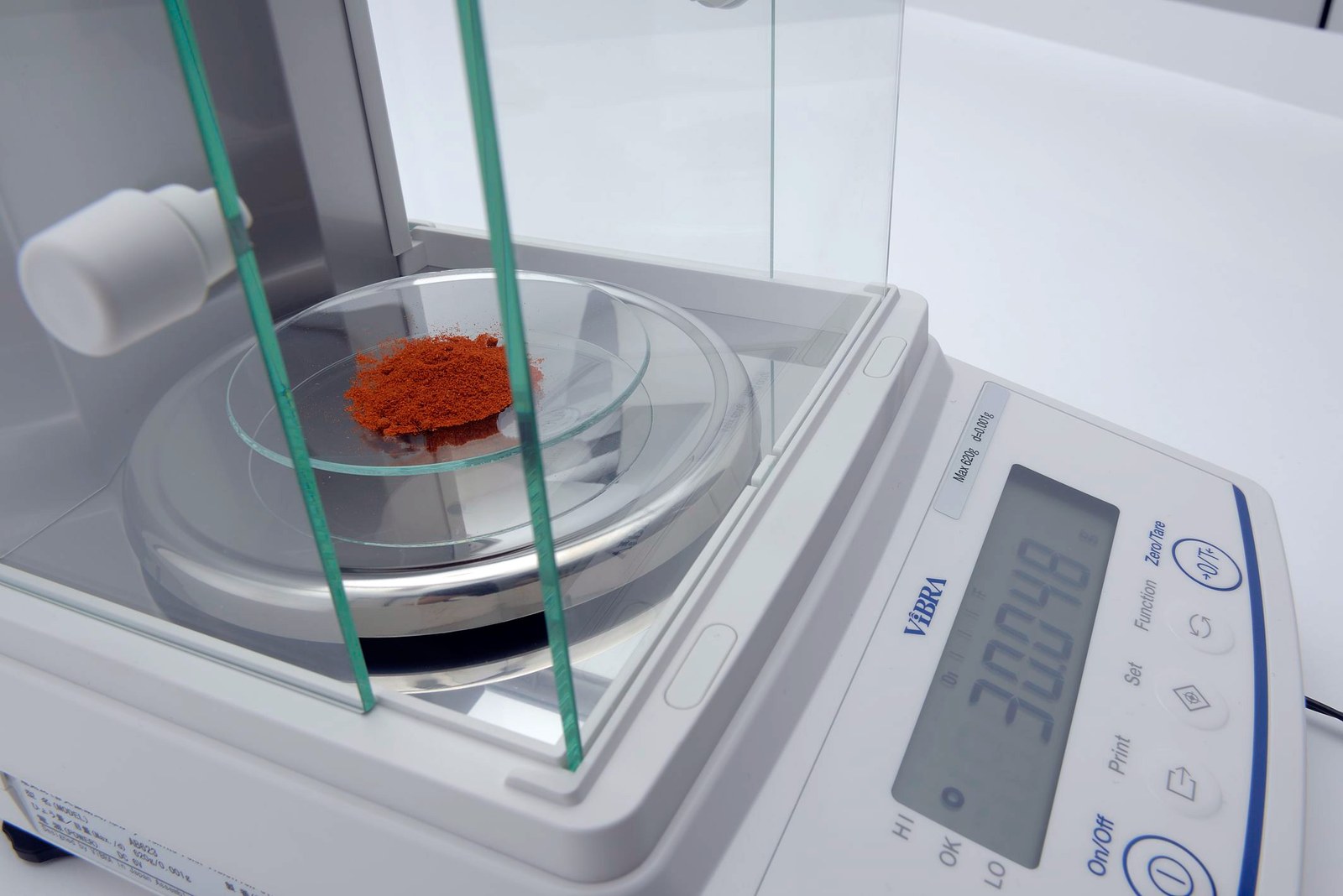

A large bright back-lit LCD, a glass windshield on the 320 g and 620 g models and a robust housing with a large weighing platform support daily laboratory and industrial routines.
RS232C output is standard for connecting printers, PCs and other devices.
Specifications
Technical specifications
14 parameters
General
- Capacity range
- 320 g to 12000 g
- Readability range
- 0.001 g to 0.1 g
- Tare
- Zero to full weighing range
- Span adjustment
- AB: manual with external weight; AB-R: semi-automatic with built-in weight
- Temperature and humidity range
- 5 to 35 °C, up to 80 % rh (non-condensing)
- Power source
- AC adapter, input 100-230 VAC, output 6 VDC
- Output
- RS232C (D-sub 9 pin)
- Pan size
- 140 mm dia. (320-620 g); 190 x 190 mm (1200 g and above)
- Dimensions (W x D x H)
- 293 x 202 x 206 mm incl. windshield (320-620 g); 293 x 196 x 89 mm (1200 g and above)
Models (each also in -R built-in weight and -CE versions)
- AB323
- Capacity 320 g; Readability 0.001 g; Verification interval e 0.01 g; Accuracy class II; Repeatability 0.001 g; Linearity ±0.003 g; Stabilization time 3.0 sec.
- AB623
- Capacity 620 g; Readability 0.001 g; Verification interval e 0.01 g; Accuracy class II; Repeatability 0.001 g; Linearity ±0.004 g; Stabilization time 3.5 sec.
- AB1202
- Capacity 1200 g; Readability 0.01 g; Verification interval e 0.1 g; Accuracy class II; Repeatability 0.01 g; Linearity ±0.02 g; Stabilization time 3.0 sec.
- AB3202
- Capacity 3200 g; Readability 0.01 g; Verification interval e 0.1 g; Accuracy class II; Repeatability 0.01 g; Linearity ±0.03 g; Stabilization time 3.5 sec.
- AB12001
- Capacity 12000 g; Readability 0.1 g; Verification interval e 1 g; Accuracy class II; Repeatability 0.1 g; Linearity ±0.2 g; Stabilization time 3.0 sec.
Features
Key features
- 01
Back-lit LCD
Bright white backlight for easy reading.
- 02
Robust housing
Durable in tough conditions with a large weighing platform.
- 03
Glass windshield
Fitted to 320 g and 620 g models to limit air turbulence.
- 04
Built-in weight option
AB-R models adjust span semi-automatically.
- 05
Standard RS232C
Connect printers, PCs and other equipment.
From order to operation
We stay with the instrument after it arrives
Al-Shaker specifies the configuration, documents the system, and supports it across Jordan, the GCC, and MENA.
- 01
Consult
- 02
Plan
- 03
Supply
- 04
Install
- 05
Train
- 06
Support
