Reference: ALE322NC / ALE1501NC / ALE8200NC
ViBRA ALE-NC Legal-for-Trade Precision Balances (US and Canada)
Legal-for-trade version of the ALE precision balance with NTEP and Measurement Canada approval, available for the US and Canada only, in 320 g, 1500 g and 8200 g.
Key specifications
- Market
- US and Canada only
- Approvals
- NTEP (17-061A2) and Measurement Canada (AM-6153), e=d, for direct sales
- Tare
- Not available by regulation
- Span adjustment
- Manual with external calibration weight
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
ViBRA ALE-NC Legal-for-Trade Precision Balances (US and Canada)
Request a quoteOverview
Product overview
The ALE-NC is the legal-for-trade variant of ViBRA's ALE precision balance. It carries NTEP approval (17-061A2) and Measurement Canada approval (AM-6153) with e=d, permitting direct sales use in the United States and Canada.

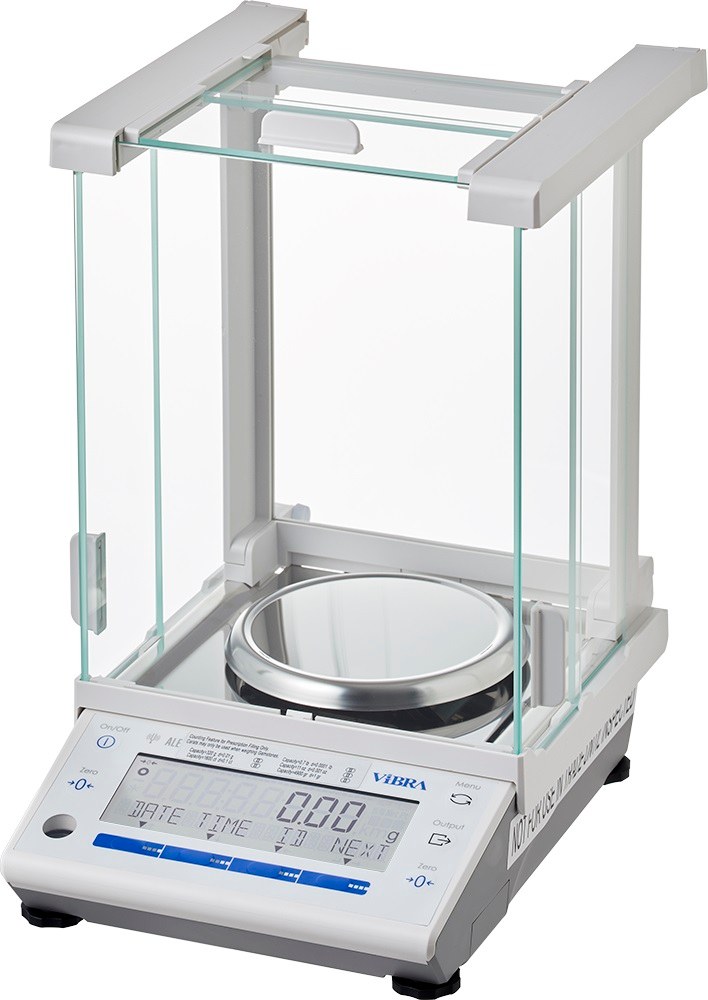

It keeps the ALE tuning-fork sensor, compact housing and 1.6 sec. stabilization time, with three free keys, shock-resistant design and a removable windshield on the 320 g model. RS232C and USB Type B are standard, and it can run on AA batteries as well as the AC adapter.
Because of the regulation, the tare function is not available on this model.
Specifications
Technical specifications
12 parameters
General
- Market
- US and Canada only
- Approvals
- NTEP (17-061A2) and Measurement Canada (AM-6153), e=d, for direct sales
- Tare
- Not available by regulation
- Span adjustment
- Manual with external calibration weight
- Temperature and humidity range
- 10 to 30 °C, up to 85 % rh (non-condensing)
- Power source
- AC adapter (100-240 VAC, 50-60 Hz, 5.95 VDC) or 4 x AA dry-cell batteries
- Output
- RS232C and USB Type B
Models
- ALE322NC
- Capacity 320 g; Readability 0.01 g; Verification interval e 0.01 g; Accuracy class II; Repeatability 0.01 g; Stabilization time 1.6 sec.; Pan size 118 mm; Windshield included
- ALE1501NC
- Capacity 1500 g; Readability 0.1 g; Verification interval e 0.1 g; Accuracy class II; Repeatability 0.1 g; Stabilization time 1.6 sec.; Pan size 160 x 180 mm; Windshield not included
- ALE8200NC

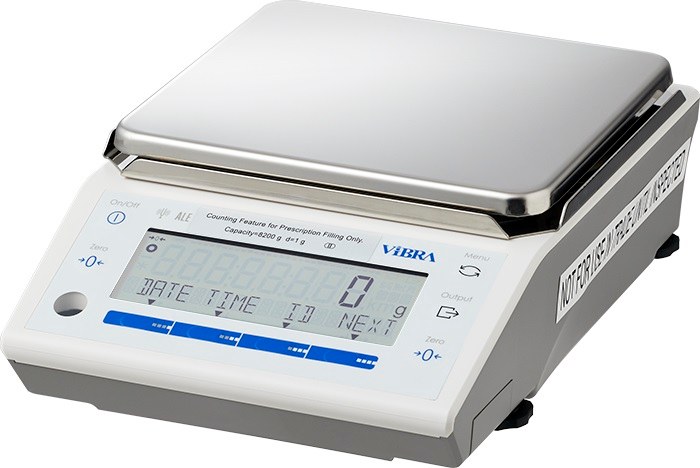

- Capacity 8200 g; Readability 1 g; Verification interval e 1 g; Accuracy class II; Repeatability 1 g; Stabilization time 1.6 sec.; Pan size 160 x 180 mm; Windshield not included
Options
- ALE-DU
- Under weighing hook
- ALE-DK
- Density measurement kit
Features
Key features
- 01
Legal for trade
NTEP 17-061A2 and Measurement Canada AM-6153, e=d, for direct sales.
- 02
Compact housing
Smallest footprint among ViBRA precision balances.
- 03
Short stabilization time
1.6 sec.
- 04
Free keys
Three front keys can be assigned shortcuts.
- 05
Battery or AC power
4 x AA batteries or AC adapter.
- 06
RS232C and USB Type B
Standard connectivity.
