ViBRA ALE Series Precision Balances
Compact tuning-fork precision balances from 220 g to 15 kg with 1.6 second stabilization, shock resistance, battery operation and free keys.
Key specifications
- Capacity range
- 220 g to 15000 g
- Readability range
- 0.001 g to 0.1 g
- Tare
- Zero to full weighing range
- Span adjustment
- ALE: manual with external weight; ALE-R: semi-automatic with built-in weight
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
ViBRA ALE Series Precision Balances
Request a quoteOverview
Product overview

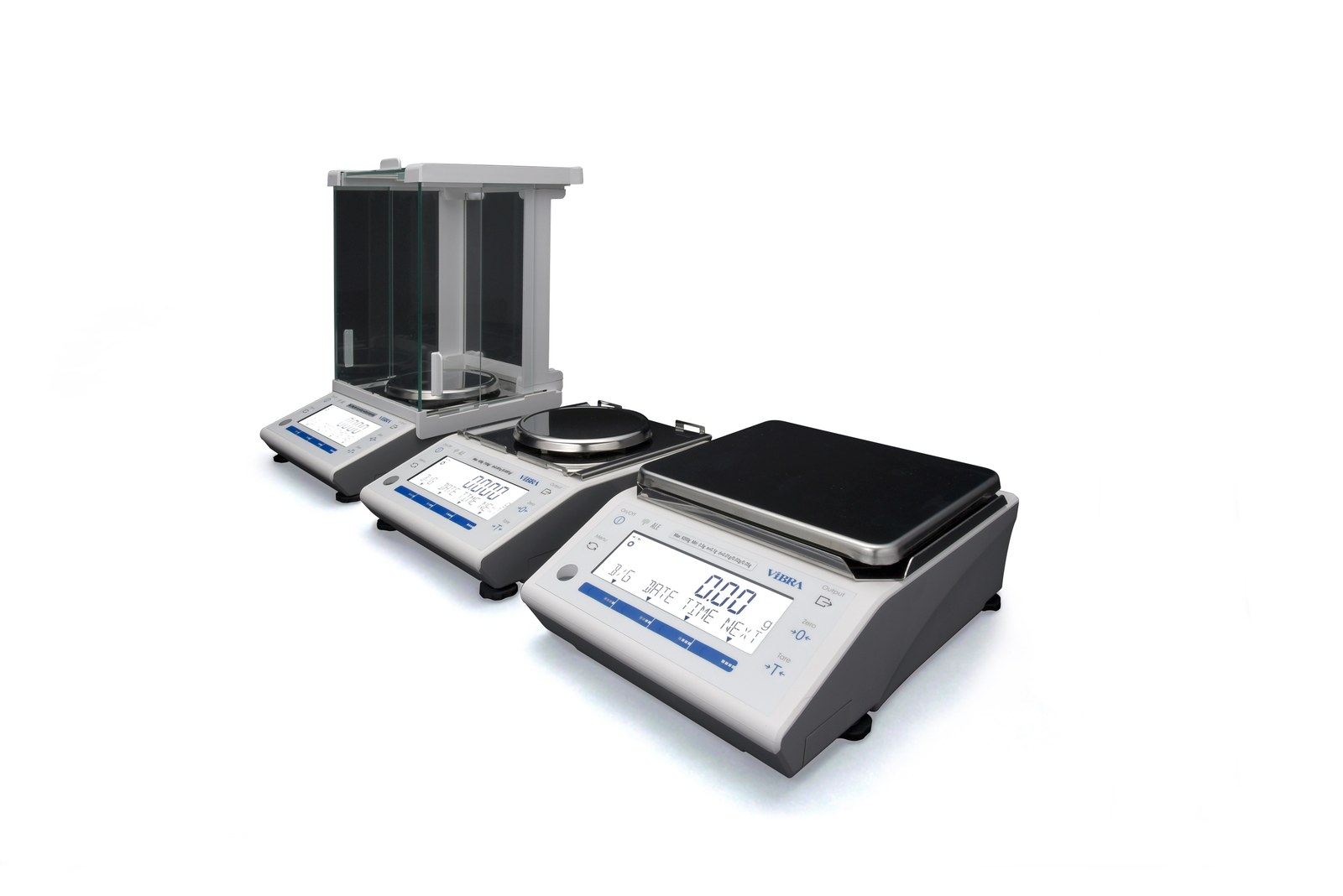

The ALE series is ViBRA's laboratory precision balance with a tuning-fork sensor. It is offered from 220 g to 15000 g with readability from 0.001 g to 0.1 g, in external-weight and internal-weight (R) versions.
ViBRA describes it as the smallest footprint among its precision balances. Newly developed filtering halves the stabilization time compared with earlier models to 1.6 sec., and the balance is designed to absorb impacts from heavy objects dropped on the pan.
Three front keys can be assigned to frequently used functions, a removable windshield makes cleaning simple, and low power consumption allows operation on dry-cell batteries or as backup power. RS232C and USB come as standard, with relay contact, Ethernet and under-weighing hook options.
Specifications
Technical specifications
24 parameters
General
- Capacity range
- 220 g to 15000 g
- Readability range
- 0.001 g to 0.1 g
- Tare
- Zero to full weighing range
- Span adjustment
- ALE: manual with external weight; ALE-R: semi-automatic with built-in weight
- Stabilization time
- 1.6 sec.
- Temperature and humidity range
- 10 to 30 °C, up to 85 % rh (non-condensing)
- Power source
- AC adapter (100-240 VAC, 50-60 Hz, 5.95 VDC) or 4 x AA dry-cell batteries
- Output
- RS232C and USB
- Pan size
- 118 mm dia. (220-620 g); 180 x 160 mm (1500 g and above)
- Dimensions (W x D x H)
- 205 x 270 x 301 mm incl. windshield (220-620 g); 192 x 265 x 86 mm (1500 g and above)
- Windshield
- Included as standard on 220-620 g models; not available on 1500 g and above
Internal weight models
- ALE223R
- Capacity 220 g; Readability 0.001 g; Accuracy class II; Verification interval e 0.01 g; Repeatability 0.001 g
- ALE323R
- Capacity 320 g; Readability 0.001 g; Accuracy class II; Verification interval e 0.01 g; Repeatability 0.001 g
- ALE623R
- Capacity 620 g; Readability 0.001 g; Accuracy class II; Verification interval e 0.01 g; Repeatability 0.001 g
- ALE1502R
- Capacity 1500 g; Readability 0.01 g; Accuracy class II; Verification interval e 0.1 g; Repeatability 0.01 g
- ALE2202R
- Capacity 2200 g; Readability 0.01 g; Accuracy class II; Verification interval e 0.1 g; Repeatability 0.01 g
- ALE3202R
- Capacity 3200 g; Readability 0.01 g; Accuracy class II; Verification interval e 0.1 g; Repeatability 0.01 g
- ALE6202R
- Capacity 6200 g; Readability 0.01 g; Accuracy class II; Verification interval e 0.1 g; Repeatability 0.01 g
- ALE6201R
- Capacity 6200 g; Readability 0.1 g; Accuracy class II; Verification interval e 0.1 g; Repeatability 0.01 g
- ALE8201R
- Capacity 8200 g; Readability 0.1 g; Accuracy class II; Verification interval e 1 g; Repeatability 0.1 g
- ALE15001R
- Capacity 15000 g; Readability 0.1 g; Accuracy class II; Verification interval e 1 g; Repeatability 0.1 g
Options
- ALE-DK
- Density measurement kit (220-620 g models only)
- ALE-LM
- Relay contact
- ALE-ETHER
- Ethernet
Features
Key features
- 01
Compact housing
Smallest footprint among ViBRA precision balances.
- 02
Short stabilization time
1.6 sec., about half the earlier models.
- 03
Impact resistance
Designed to absorb shock from heavy objects accidentally dropped on the balance.
- 04
Free keys
Three front keys can be assigned to often-used functions.
- 05
Battery drive
Runs on 4 x AA dry-cell batteries or as backup power.
- 06
Removable windshield
Easy to take off by hand for cleaning.
- 07
Density kit option
ALE-DK is available for the 220-620 g models.
From order to operation
We stay with the instrument after it arrives
Al-Shaker specifies the configuration, documents the system, and supports it across Jordan, the GCC, and MENA.
- 01
Consult
- 02
Plan
- 03
Supply
- 04
Install
- 05
Train
- 06
Support
