ViBRA AZ2-B Battery-Powered Explosion-Proof Scales
Dry-cell powered explosion-proof scales from 6 kg to 450 kg, easy to install with up to about 1,000 hours of runtime and field-ready auto tare and reminder functions.
Key specifications
- Capacity range
- 6000 g to 450 kg
- Tare
- Zero to full weighing range (auto tare function)
- Span adjustment
- Manual with external calibration weight
- Explosion-proof certification
- Japanese Ex standard certified by TIIS (no IECEx approval)
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
ViBRA AZ2-B Battery-Powered Explosion-Proof Scales
Request a quoteOverview
Product overview

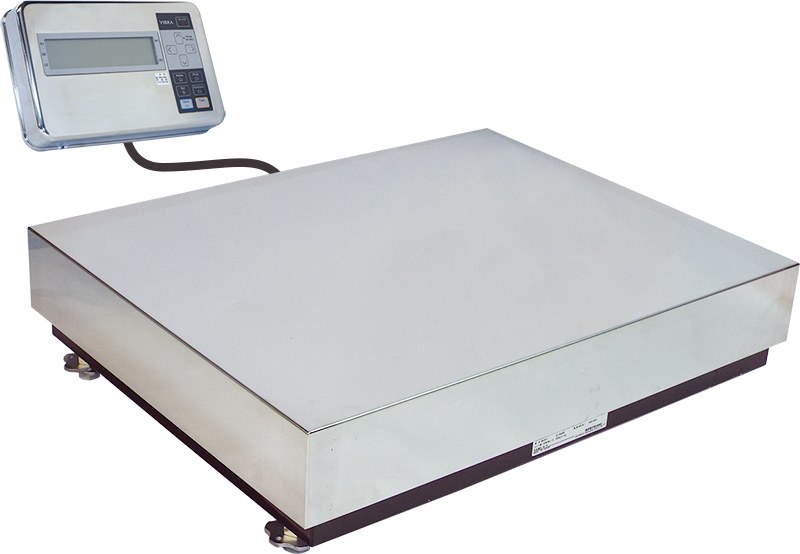

The AZ2-B series is a battery-operated explosion-proof scale range with capacities from 6000 g to 450 kg, including a 450 kg model with stainless steel exterior (AZ2-B450K-SUS). The larger 450 kg models use a separate display type.
Four D-size alkaline batteries power the scale for approximately 1,000 hours of continuous use with the backlight off, so installation needs no wiring. The 25 mm back-lit LCD is easy to read.
Field-ready functions include auto tare, a tare reminder, a zero-point reminder and password protection. Accessories include a remote display desktop stand and, for the AZ2-B450K, a pole option, pole stand and cart. The explosion-proof certification is the Japanese TIIS standard, with no IECEx approval.
Specifications
Technical specifications
15 parameters
General
- Capacity range
- 6000 g to 450 kg
- Tare
- Zero to full weighing range (auto tare function)
- Span adjustment
- Manual with external calibration weight
- Explosion-proof certification
- Japanese Ex standard certified by TIIS (no IECEx approval)
- Display
- LCD 25 mm height, back-lit, 7 segments, max. 7 digits
- Temperature and humidity range
- 5 to 35 °C, up to 80 % RH (non-condensing)
- Power source
- 4 x D-size alkaline dry-cell batteries (LR20)
- Battery life
- Approx. 1,000 hours continuous (backlight off)
- Scale cable length
- 0.4 m (6000 g), 1.5 m (30 kg), 3 m (60 kg and above); not extendable
Models
- AZ2-B6000
- Capacity 6000 g; Readability 1 g; Linearity ±0.001 kg; Repeatability 0.001 kg; Pan size W200 x D250 mm
- AZ2-B30K
- Capacity 30 kg; Readability 0.005 kg; Linearity ±0.005 kg; Repeatability 0.005 kg; Pan size W330 x D310 mm
- AZ2-B60K
- Capacity 60 kg; Readability 0.01 kg; Linearity ±0.01 kg; Repeatability 0.01 kg; Pan size W380 x D530 mm
- AZ2-B150K
- Capacity 150 kg; Readability 0.02 kg; Linearity ±0.02 kg; Repeatability 0.02 kg; Pan size W380 x D530 mm
- AZ2-B450K
- Capacity 450 kg; Readability 0.1 kg; Linearity ±0.1 kg; Repeatability 0.1 kg; Pan size W550 x D700 mm
- AZ2-B450K-SUS
- Capacity 450 kg (stainless steel finish); Readability 0.1 kg; Linearity ±0.1 kg; Repeatability 0.1 kg; Pan size W550 x D700 mm
Features
Key features
- 01
Battery operation
4 x D-size alkaline, about 1,000 hours with backlight off.
- 02
Wide capacity line-up
6000 g to 450 kg, including a stainless steel 450 kg version.
- 03
Auto tare
Tare applied automatically when a container is placed.
- 04
Zero and tare reminders
Warnings prevent weighing without zero or tare.
- 05
Large back-lit LCD
25 mm digits.
- 06
Accessories
Remote display stand, pole, pole stand and cart for the 450 kg model.
From order to operation
We stay with the instrument after it arrives
Al-Shaker specifies the configuration, documents the system, and supports it across Jordan, the GCC, and MENA.
- 01
Consult
- 02
Plan
- 03
Supply
- 04
Install
- 05
Train
- 06
Support
