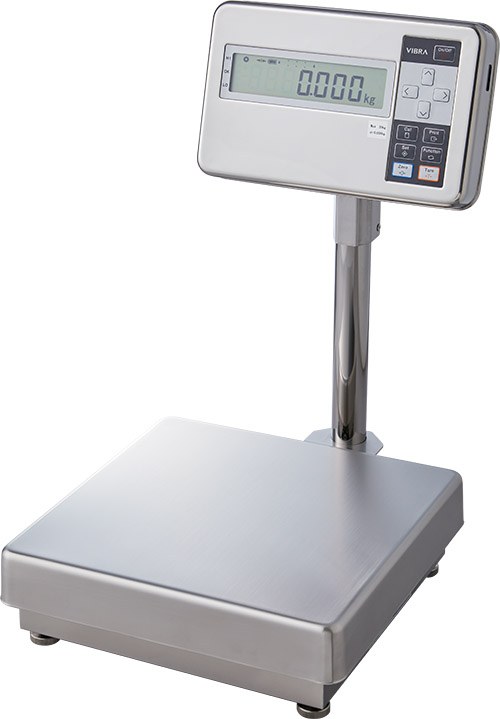

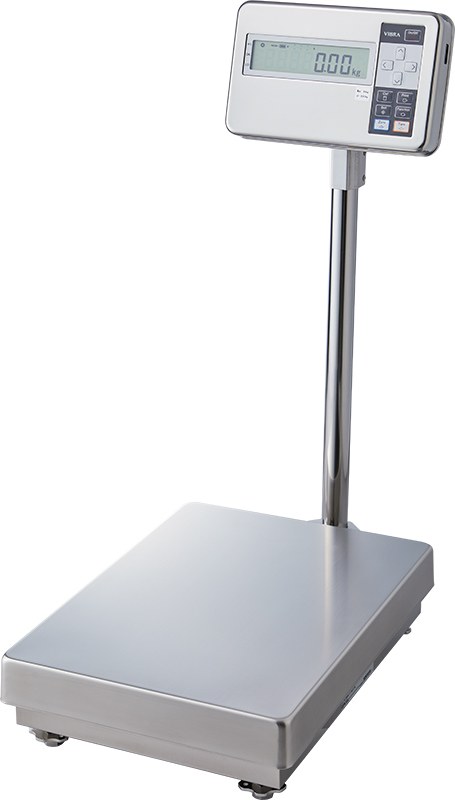

ViBRA AZ2-BWP Waterproof Explosion-Proof Scales
IP65 water and dust proof, battery-powered explosion-proof scales from 6 kg to 150 kg with auto tare, tare and zero reminders and about 1,000 hours of battery life.
Key specifications
- Capacity range
- 6000 g to 150 kg
- Tare
- Zero to full weighing range (auto tare function)
- Span adjustment
- Manual with external calibration weight
- Ingress protection
- IP65
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
ViBRA AZ2-BWP Waterproof Explosion-Proof Scales
Request a quoteOverview
Product overview
The AZ2-BWP series is a battery-operated explosion-proof scale range covering 6000 g to 150 kg. All models are IP65 rated and can be washed with water after use.
It runs on four D-size alkaline batteries for approximately 1,000 hours of continuous operation with the backlight off, so no wiring is needed in the hazardous area. A large 25 mm back-lit LCD aids reading.
Practical field functions include auto tare when a container is placed on the pan, a zero-point reminder ("-----Z") and a tare reminder ("-----T"), plus password protection. The explosion-proof certification is the Japanese TIIS standard, with no IECEx approval.
Specifications
Technical specifications
14 parameters
General
- Capacity range
- 6000 g to 150 kg
- Tare
- Zero to full weighing range (auto tare function)
- Span adjustment
- Manual with external calibration weight
- Ingress protection
- IP65
- Explosion-proof certification
- Japanese Ex standard certified by TIIS (no IECEx approval)
- Display
- LCD 25 mm height, back-lit, 7 segments, max. 7 digits
- Temperature and humidity range
- 5 to 35 °C, up to 80 % RH (non-condensing)
- Power source
- 4 x D-size alkaline dry-cell batteries (LR20)
- Battery life
- Approx. 1,000 hours continuous (backlight off)
- Scale cable length
- 0.4 m (6000 g), 1.5 m (30 kg), 3 m (60 kg and 150 kg); not extendable
Models
- AZ2-B6000WP
- Capacity 6000 g; Readability 1 g; Linearity ±0.001 kg; Repeatability 0.001 kg; Pan size W200 x D250 mm; Dimensions LWH 294 x 400 x 435 mm
- AZ2-B30KWP
- Capacity 30 kg; Readability 0.005 kg; Linearity ±0.005 kg; Repeatability 0.005 kg; Pan size W330 x D310 mm; Dimensions LWH 330 x 448 x 540 mm
- AZ2-B60KWP
- Capacity 60 kg; Readability 0.01 kg; Linearity ±0.01 kg; Repeatability 0.01 kg; Pan size W380 x D530 mm; Dimensions LWH 380 x 669 x 815 mm
- AZ2-B150KWP
- Capacity 150 kg; Readability 0.02 kg; Linearity ±0.02 kg; Repeatability 0.02 kg; Pan size W380 x D530 mm; Dimensions LWH 380 x 669 x 815 mm
Features
Key features
- 01
IP65
Water and dust proof and easy to wash.
- 02
About 1,000 hours on batteries
4 x D-size alkaline, backlight off; no wiring needed.
- 03
Auto tare
Tare applied automatically when a container is placed.
- 04
Zero and tare reminders
Warnings "-----Z" and "-----T" prevent drift and tare mistakes.
- 05
Large back-lit LCD
25 mm digits.
- 06
TIIS certified
No IECEx approval.
