Reference: CTB 703
ViBRA CTB 703 Carat Balance
Compact 700 ct balance reading to 0.001 ct for diamond measurement, with tuning-fork sensor, no warm-up time and a roll-top anti-static windshield.
Key specifications
- Capacity
- 700 ct
- Readability (d)
- 0.001 ct
- Repeatability (σ)
- 0.001 ct
- Linearity
- ±0.003 ct
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
ViBRA CTB 703 Carat Balance
Request a quoteOverview
Product overview

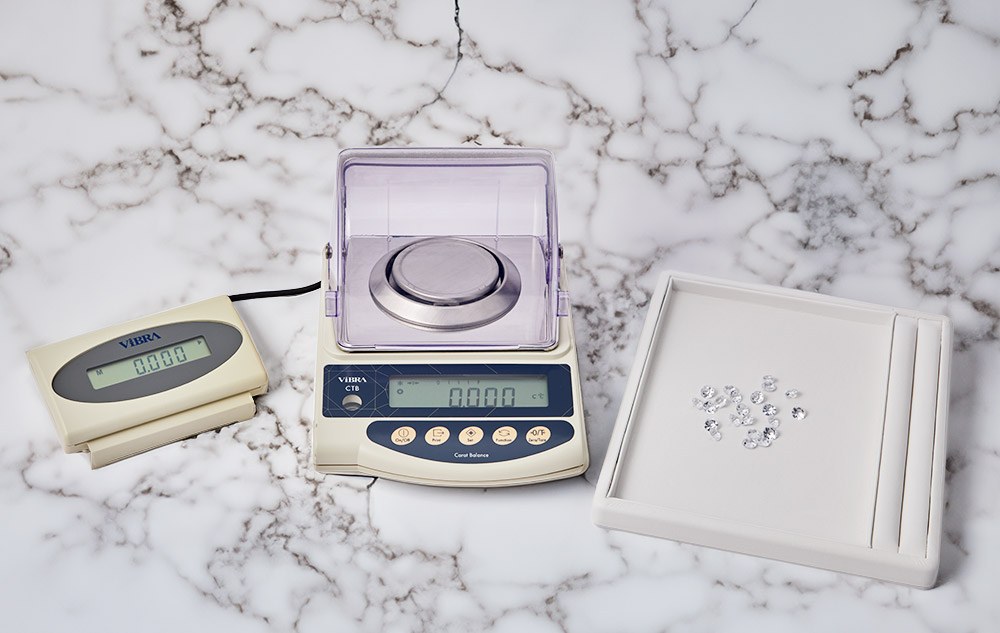

The CTB 703 is ViBRA's carat balance for diamond measurement, with a capacity of 700 ct and readability of 0.001 ct.
Its simple tuning-fork sensor mechanism allows long use without maintenance, needs no warm-up time (plug in and go) and offers a short stabilization time of 4.0 sec. A roll-top windshield made of anti-electrostatic material gives easy access from the front, and the compact design saves working space.
Weight data can be output by RS232C to the SDI satellite display and ViBRA's RTS software for data management.
Specifications
Technical specifications
14 parameters
General
- Capacity
- 700 ct
- Readability (d)
- 0.001 ct
- Repeatability (σ)
- 0.001 ct
- Linearity
- ±0.003 ct
- Stabilization time
- 4.0 sec.
- Pan size
- 80 mm dia.
- Windshield
- Roll-top windshield (anti-electrostatic material)
- Tare
- Zero to full weighing range
- Span adjustment
- Manual with external calibration weight
- Temperature and humidity range
- 5 to 35 °C, up to 80 % rh (non-condensing)
- Power source
- AC adapter, input 100-240 VAC, output 12 VDC
- Output
- RS232C (Din 5 pin)
- Dimensions (W x D x H)
- 235 x 182 x 162 mm (including windshield)
Options
- AJBT(S)
- Rechargeable battery
Features
Key features
- 01
Diamond measurement
700 ct capacity at 0.001 ct readability.
- 02
Tuning-fork sensor
Simple mechanism for long maintenance-free use.
- 03
No warm-up
Plug in and go.
- 04
Roll-top windshield
Anti-electrostatic material with front access.
- 05
Data output
RS232C to the SDI second display and RTS software.
From order to operation
We stay with the instrument after it arrives
Al-Shaker specifies the configuration, documents the system, and supports it across Jordan, the GCC, and MENA.
- 01
Consult
- 02
Plan
- 03
Supply
- 04
Install
- 05
Train
- 06
Support
