Reference: CUX60 to CUX150K

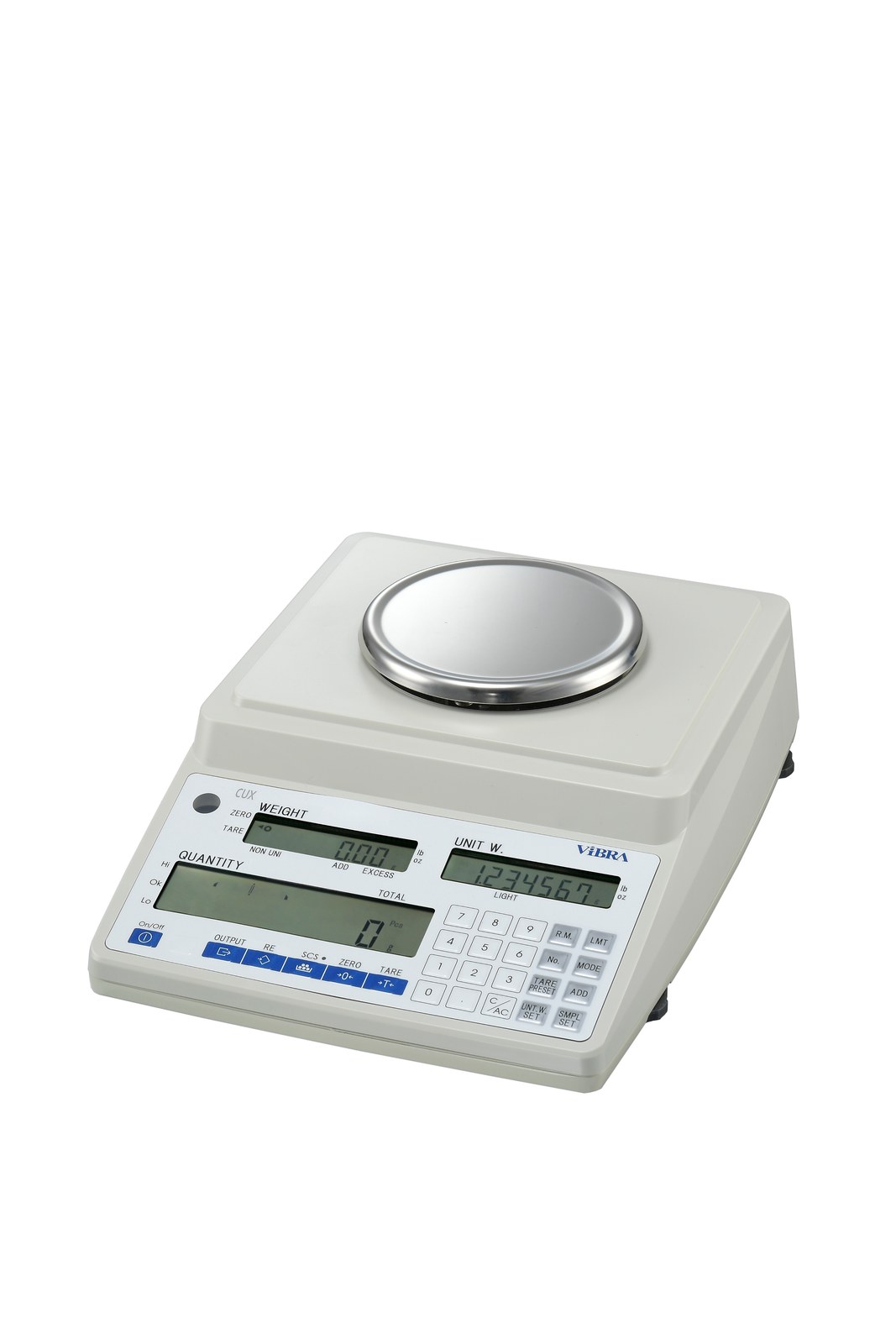

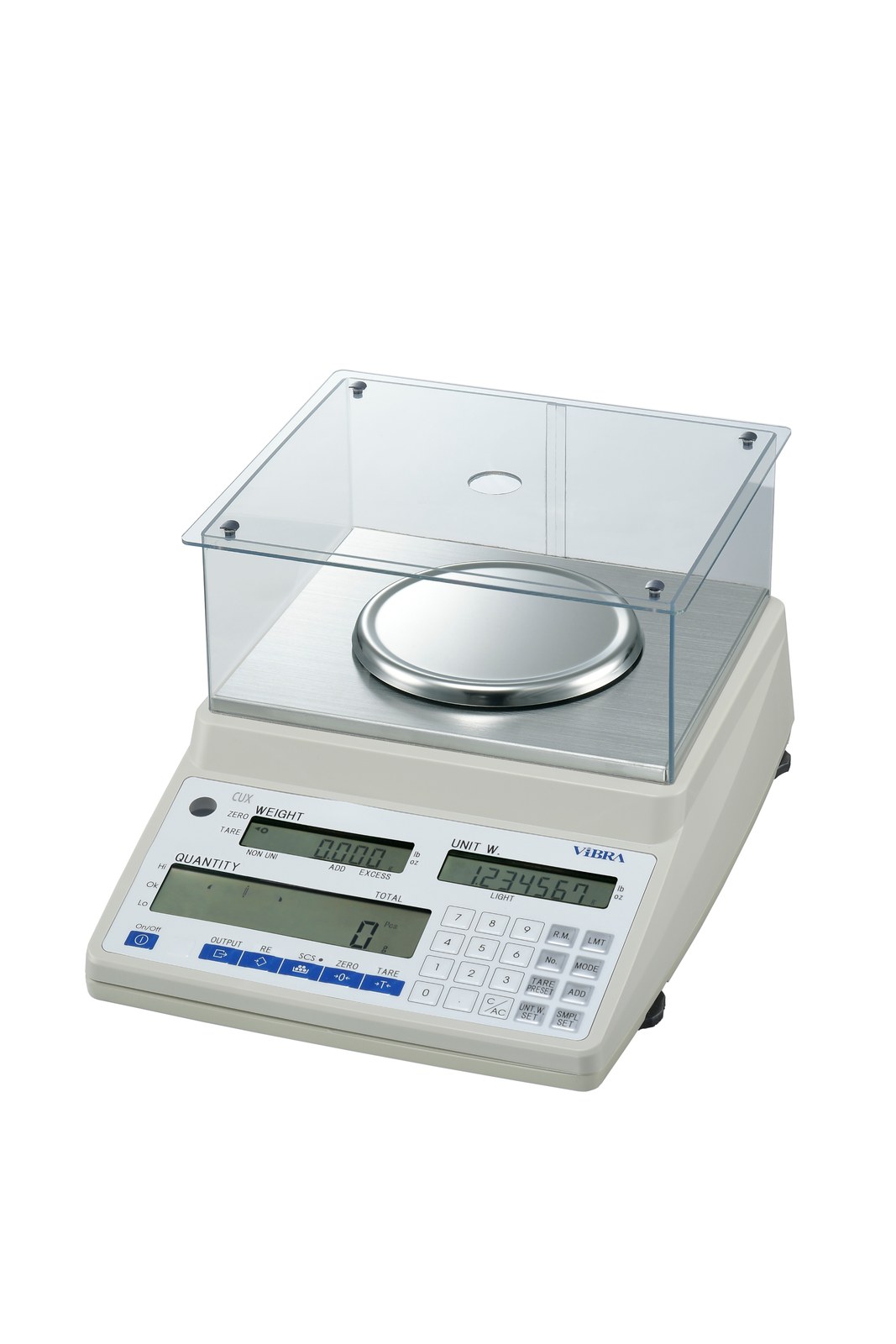

ViBRA CUX Series Counting Balances
Parts-counting balances from 60 g to 150 kg with automatic counting revision, a three-window back-lit display and counting up to 600,000 pieces.
Key specifications
- Capacity range
- 60 g to 150 kg
- Tare
- Zero to full weighing range
- Maximum counting quantity
- 600,000 pcs (CUX60 to 12K, 16KS, 30KS); 100,000 pcs (CUX16K, 30K, 60K, 150K)
- Span adjustment
- Manual with external weight
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
ViBRA CUX Series Counting Balances
Request a quoteOverview
Product overview

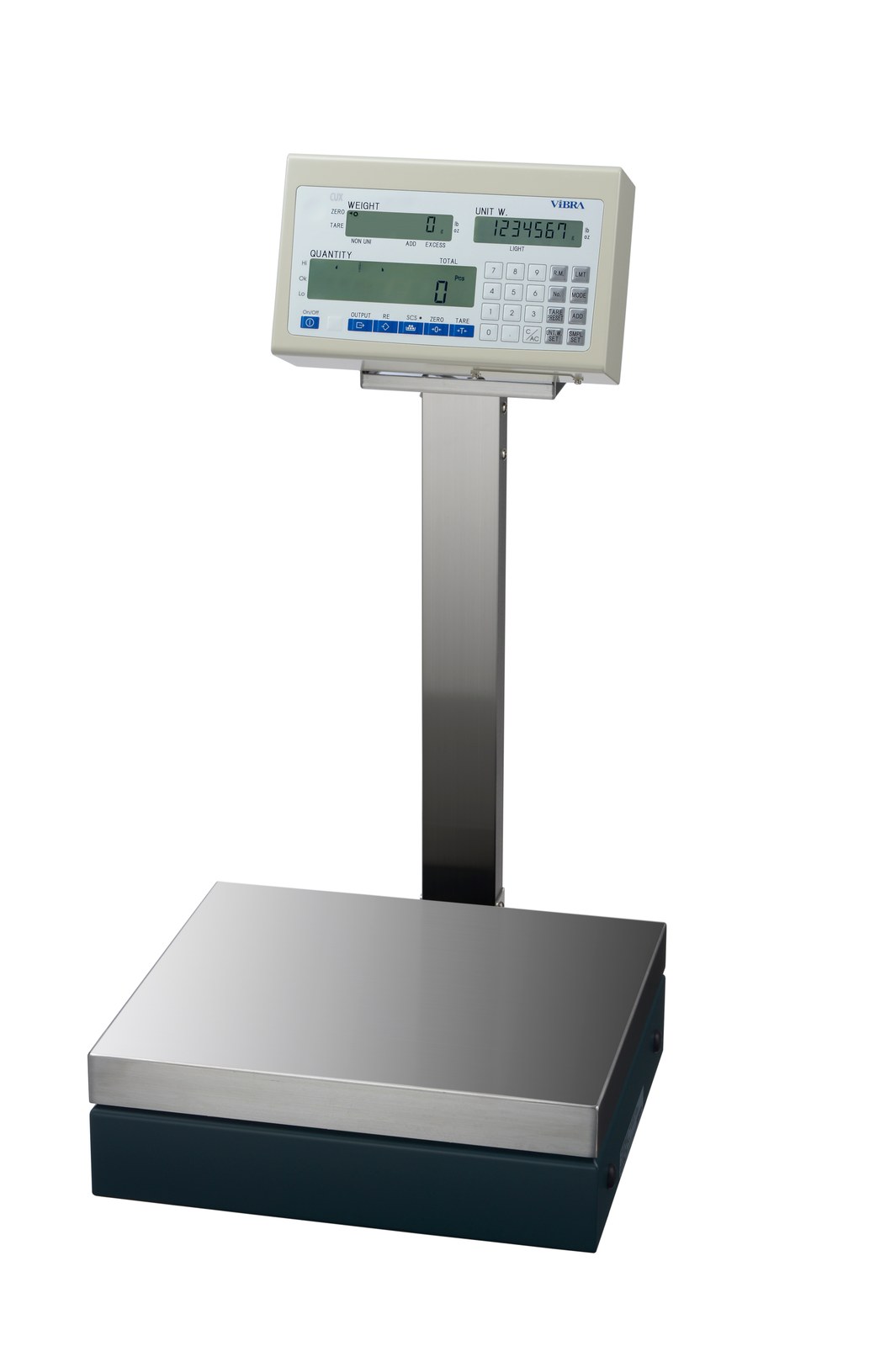

The CUX series is ViBRA's range of parts-counting balances. Capacities run from 60 g to 150 kg; models up to 30 kg use a tuning-fork sensor and the 16 kg to 150 kg CUX-K models use a strain gauge load cell.
ACR (Automatic Counting Revision) improves counting accuracy as parts are added, aiming at zero error in parts counting. Three back-lit LCD windows show quantity, unit weight and total weight at the same time, and a tare-reminder function helps avoid mistakes.
The maximum counting quantity is 600,000 pieces on most models and 100,000 pieces on the CUX16K to CUX150K. RS232C output is standard.
Specifications
Technical specifications
21 parameters
General
- Capacity range
- 60 g to 150 kg
- Tare
- Zero to full weighing range
- Maximum counting quantity
- 600,000 pcs (CUX60 to 12K, 16KS, 30KS); 100,000 pcs (CUX16K, 30K, 60K, 150K)
- Span adjustment
- Manual with external weight
- Temperature and humidity range
- 0 to 40 °C, up to 80 % rh (non-condensing)
- Power source
- Dedicated AC adapter
- Output
- RS232C (D-sub 9 pin)
Tuning-fork sensor models
- CUX60
- Capacity 60 g; Countable unit weight 0.1 mg; Minimum readability 0.001 g
- CUX150
- Capacity 150 g; Countable unit weight 0.25 mg; Minimum readability 0.002 g
- CUX300
- Capacity 300 g; Countable unit weight 0.5 mg; Minimum readability 0.005 g
- CUX600
- Capacity 600 g; Countable unit weight 1 mg; Minimum readability 0.01 g
- CUX1500
- Capacity 1500 g; Countable unit weight 2.5 mg; Minimum readability 0.05 g
- CUX3000
- Capacity 3000 g; Countable unit weight 5 mg; Minimum readability 0.05 g
- CUX6000
- Capacity 6000 g; Countable unit weight 10 mg; Minimum readability 0.1 g
- CUX12K
- Capacity 12 kg; Countable unit weight 20 mg; Minimum readability 1 g
- CUX16KS
- Capacity 16 kg; Countable unit weight 50 mg; Minimum readability 0.5 g
- CUX30KS
- Capacity 30 kg; Countable unit weight 0.1 g; Minimum readability 1 g
Strain gauge load cell models
- CUX16K
- Capacity 16 kg; Countable unit weight 0.16 g; Minimum readability 0.002 kg
- CUX30K
- Capacity 30 kg; Countable unit weight 0.3 g; Minimum readability 0.005 kg
- CUX60K
- Capacity 60 kg; Countable unit weight 0.6 g; Minimum readability 0.01 kg
- CUX150K
- Capacity 150 kg; Countable unit weight 1.5 g; Minimum readability 0.02 kg
Features
Key features
- 01
ACR function
Automatic Counting Revision for accurate counting.
- 02
Three-window display
Quantity, unit weight and total weight shown simultaneously.
- 03
Tare reminder
Alerts the operator about tare.
- 04
Wide capacity range
60 g to 150 kg.
- 05
High counting capacity
Up to 600,000 pcs on most models.
- 06
RS232C output
Standard.
