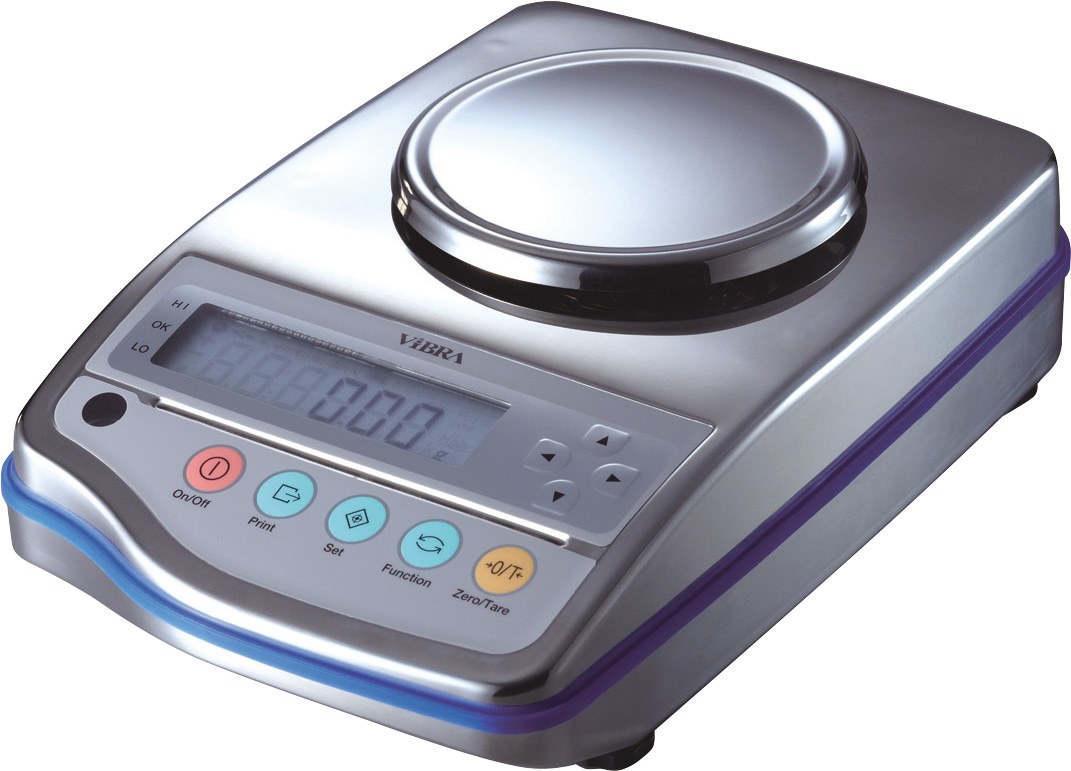

ViBRA CZ-B Explosion-Proof Top-Loading Balances
Battery-powered, IP65 stainless-steel explosion-proof balances from 320 g to 15 kg, in standard and high-precision versions with readability down to 0.001 g.
Key specifications
- Capacity range
- 320 g to 15000 g
- Readability range
- 0.001 g to 1 g
- Tare
- Zero to full weighing range
- Span adjustment
- Manual with external calibration weight
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
ViBRA CZ-B Explosion-Proof Top-Loading Balances
Request a quoteOverview
Product overview
The CZ-B series is a compact top-loading balance for hazardous areas, combining explosion protection, high precision and IP65 water and dust protection in one body. It uses a tuning-fork sensor and a stainless steel construction.
Standard models read to 0.01 g, 0.1 g or 1 g depending on capacity, while the S versions improve this to 0.001 g to 0.1 g. Capacities run from 320 g to 15000 g.
It runs on four D-size dry-cell batteries, for up to 200 hours with the backlight off, so it can be carried anywhere in the plant. The explosion-proof certification is the Japanese TIIS standard; ViBRA states there is no IECEx approval for this series.
Specifications
Technical specifications
22 parameters
General
- Capacity range
- 320 g to 15000 g
- Readability range
- 0.001 g to 1 g
- Tare
- Zero to full weighing range
- Span adjustment
- Manual with external calibration weight
- Ingress protection
- IP65
- Explosion-proof certification
- Japanese Ex standard certified by TIIS (no IECEx approval)
- Display
- 7-segment LCD, 18 mm height, back-lit
- Temperature and humidity range
- 0 to 40 °C, up to 80 % rh (non-condensing)
- Power source
- 4 x D-size alkaline (LR20) or manganese (R20PU) dry-cell batteries
- Battery life
- 200 hours continuous operation with backlight off (alkaline)
- Weight units
- g, kg, ct, mom
- Dimensions (L x W x H)
- 212 x 322 x 92 mm (183 mm incl. windshield on 320 S)
Standard type
- CZ-B320
- Capacity 320 g; Readability 0.01 g; Non linearity ±0.01 g; Pan size 140 mm dia.
- CZ-B620
- Capacity 620 g; Readability 0.01 g; Non linearity ±0.01 g; Pan size 140 mm dia.
- CZ-B3200
- Capacity 3200 g; Readability 0.1 g; Non linearity ±0.1 g; Pan size 190 x 190 mm
- CZ-B6200
- Capacity 6200 g; Readability 0.1 g; Non linearity ±0.1 g; Pan size 190 x 190 mm
- CZ-B15K
- Capacity 15000 g; Readability 1 g; Non linearity ±1 g; Pan size 190 x 190 mm
High precision type
- CZ-B320S
- Capacity 320 g; Readability 0.001 g; Non linearity ±0.003 g; Pan size 140 mm dia.
- CZ-B620S
- Capacity 620 g; Readability 0.001 g; Non linearity ±0.003 g; Pan size 140 mm dia.
- CZ-B3200S1
- Capacity 3200 g; Readability 0.01 g; Non linearity ±0.03 g; Pan size 190 x 190 mm
- CZ-B6200S1
- Capacity 6200 g; Readability 0.01 g; Non linearity ±0.03 g; Pan size 190 x 190 mm
- CZ-B15KS2
- Capacity 15000 g; Readability 0.1 g; Non linearity ±0.2 g; Pan size 190 x 190 mm
Features
Key features
- 01
Tuning-fork sensor
Low-power sensor enabling battery operation.
- 02
IP65 water and dust proof
Stainless steel body for tough conditions.
- 03
TIIS certified
Japanese Ex standard; no IECEx approval.
- 04
Battery powered
Up to 200 hours with backlight off.
- 05
Large back-lit display
18 mm LCD digits, readable in the dark.
- 06
High precision variants
S versions read to 0.001 g on 320 g and 620 g.
