ViBRA FMA Series High-Precision Platform Scales
IP65 stainless steel platform scales from 22 kg to 62 kg, reading to 0.1 g, with shock and vibration resistance, automatic tare and comparator functions.
Key specifications
- Capacity range
- 22 kg to 62 kg
- Readability range
- 0.1 g to 1 g
- Tare
- Zero to full weighing range (automatic tare function)
- Span adjustment
- FMA: manual with external weight; FMAR: semi-automatic with internal weight
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA

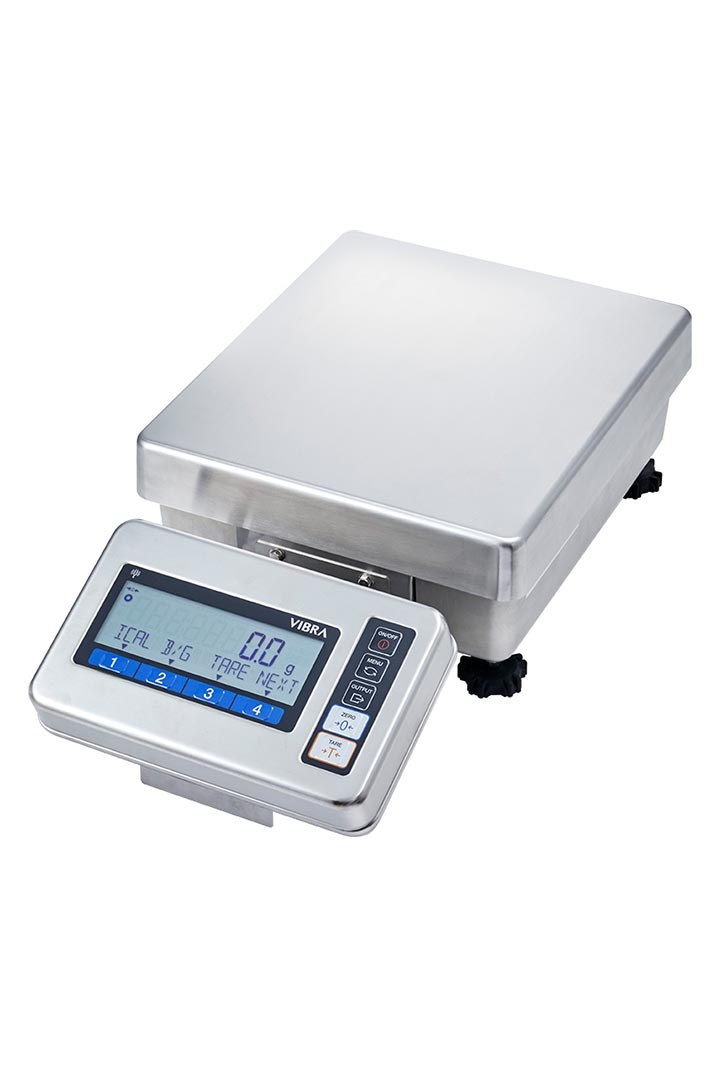

ViBRA FMA Series High-Precision Platform Scales
Request a quoteOverview
Product overview
The FMA series is a high-precision platform scale offering up to 62 kg capacity with 0.1 g readability, a resolution of 1/620,000. ViBRA states this is ten times the precision of conventional models.
A newly developed tuning-fork force sensor, a redesigned housing that passed a 30 kg sandbag drop test from 20 cm, and vibration resistance that cuts the noise factor by 90% help it hold accuracy on busy production floors. The IP65 stainless steel casing has few irregularities and is easy to wash, suited to food processing and chemical handling sites.
Functions include automatic tare when a container is placed and two comparator types (absolute two-point and relative three-point). Models with an internal weight allow semi-automatic span adjustment. Display and weighing units are linked by connector for flexible installation.
Specifications
Technical specifications
18 parameters
General
- Capacity range
- 22 kg to 62 kg
- Readability range
- 0.1 g to 1 g
- Tare
- Zero to full weighing range (automatic tare function)
- Span adjustment
- FMA: manual with external weight; FMAR: semi-automatic with internal weight
- Ingress protection
- IP65 stainless steel body
- Temperature and humidity range
- 5 to 35 °C, up to 80 % rh (non-condensing)
- Power source
- AC adapter, input 100-240 VAC, DC 12 V
- Output
- RS232C (D-sub 9 pin)
- Pan size
- W350 x D400 mm
- Dimensions (L x D x H)
- 350 x 426 x 175 mm (350 x 482 x 700 mm with pole option)
- Resolution
- Up to 1/620,000 (0.1 g at 62 kg)
Models (each also available as SR internal-weight type)
- FMA22K0.1S
- Capacity 22 kg; Readability 0.1 g; Non linearity ±0.2 g
- FMA33K0.1S
- Capacity 33 kg; Readability 0.1 g; Non linearity ±0.2 g
- FMA62K1S
- Capacity 62 kg; Readability 1 g; Non linearity ±1 g
- FMA62K0.1S
- Capacity 62 kg; Readability 0.1 g; Non linearity ±0.2 g
Options
- FMA-BT
- Rechargeable battery (12-hour charge, 10-hour drive)
- FMA-LM / FMA-R4
- Relay output / RS422A output
- FMA-BK / FMA-PK
- Display bracket / pole kit
Features
Key features
- 01
High precision
0.1 g at 62 kg, a resolution of 1/620,000.
- 02
Shock resistance
Passed a 30 kg sandbag drop from 20 cm.
- 03
Vibration resistance
Cuts the noise factor by 90% versus conventional models.
- 04
IP65 stainless steel
Easy to wash; suited to food processing and chemical handling.
- 05
Automatic tare
Tare is applied when a container is placed.
- 06
Two comparator modes
Absolute (two-point) and relative (three-point) judgement.
From order to operation
We stay with the instrument after it arrives
Al-Shaker specifies the configuration, documents the system, and supports it across Jordan, the GCC, and MENA.
- 01
Consult
- 02
Plan
- 03
Supply
- 04
Install
- 05
Train
- 06
Support
