ViBRA FS Series Platform Scales
IP65 high-precision platform scales from 620 g to 300 kg with OIML/EU class 2 approval, battery option and selectable i02 or i03 indicators.
Key specifications
- Capacity range
- 620 g to 300 kg
- Readability range
- 0.001 g to 1 g
- Tare
- Zero to full weighing range
- Span adjustment
- Manual with external calibration weight
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
ViBRA FS Series Platform Scales
Request a quoteOverview
Product overview

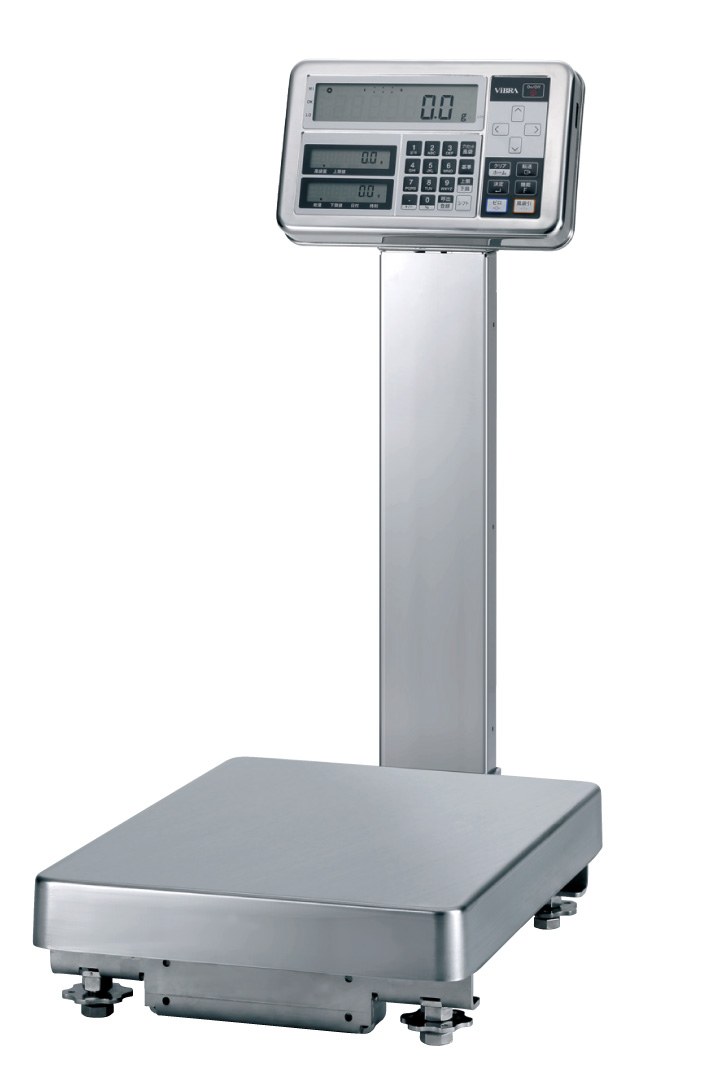

The FS series combines high capacity and high precision in one scale, covering 620 g to 300 kg with readability from 0.001 g to 1 g. The FS300K1GF weighs up to 300 kg at 1 g readability, made possible by the tuning-fork sensor.
ViBRA positions it for every stage of manufacturing, from inbound material control to production, inspection and outbound control. All models are IP65 and can be washed after daily use, and OIML and EU class 2 approval is stated.
Power comes from an AC adapter or dry-cell batteries. Users can choose the single-display i02 indicator or the i03 with two sub-displays for tare, gross weight and limits. Outputs, display stands, pole stands and extended cables are available as options.
Specifications
Technical specifications
21 parameters
General
- Capacity range
- 620 g to 300 kg
- Readability range
- 0.001 g to 1 g
- Tare
- Zero to full weighing range
- Span adjustment
- Manual with external calibration weight
- Ingress protection
- IP65
- Approval
- OIML and EU class 2
- Temperature and humidity range
- 5 to 40 °C, up to 85 % rh (non-condensing)
- Power source
- AC adapter (100-240 VAC, 6 VDC) and dry-cell battery
- Output
- RS232C (D-sub 9 pin) and printer output (Din 8 pin)
- Indicator
- i02 (single display) or i03 (two sub-displays) selectable
- Scale cable length
- 5 m for FS150K1GF and FS300K1GF; 1 m for others
Bench models
- FS623
- Capacity 620 g; Readability 0.001 g; Verification interval e 0.01 g; Repeatability 0.001 g; Pan size 140 mm dia.
- FS3202
- Capacity 3200 g; Readability 0.01 g; Verification interval e 0.1 g; Repeatability 0.01 g; Pan size 190 x 190 mm
- FS6202
- Capacity 6200 g; Readability 0.01 g; Verification interval e 0.1 g; Repeatability 0.01 g; Pan size 190 x 190 mm
- FS15001
- Capacity 15000 g; Readability 0.1 g; Verification interval e 1 g; Repeatability 0.1 g; Pan size 190 x 190 mm
Platform models
- FS30K0.1G
- Capacity 30 kg; Readability 0.1 g; Verification interval e 1 g; Repeatability 0.1 g; Pan size 310 x 330 mm
- FS60K0.1G
- Capacity 60 kg; Readability 0.1 g; Verification interval e 1 g; Repeatability 0.1 g; Pan size 380 x 530 mm
- FS100K1G
- Capacity 100 kg; Readability 1 g; Verification interval e 10 g; Repeatability 1 g; Pan size 380 x 530 mm
- FS200K1G
- Capacity 200 kg; Readability 1 g; Verification interval e 10 g; Repeatability 1 g; Pan size 380 x 530 mm
- FS150K1GF
- Capacity 150 kg; Readability 1 g; Verification interval e 10 g; Repeatability 0.7 g; Pan size 800 x 600 mm
- FS300K1GF
- Capacity 300 kg; Readability 1 g; Verification interval e 10 g; Repeatability 0.8 g; Pan size 800 x 600 mm
Features
Key features
- 01
Wide range
620 g to 300 kg.
- 02
Two-in-one resolution
300 kg capacity with 1 g readability.
- 03
IP65
Water and dust proof, easy to wash.
- 04
Dry-cell battery drive
Standard alongside the AC adapter.
- 05
OIML and EU class 2
Stated approval.
- 06
Selectable indicator
i02 or i03 with two sub-displays.
