ViBRA LNA Series Heavy-Duty Precision Balances
Heavy-duty ViBRA precision balances from 620 g to 31 kg with a large pan, die-cast aluminium housing, fluorescent display and optional built-in weight.
Key specifications
- Capacity range
- 620 g to 31 kg
- Readability range
- 0.001 g to 0.1 g
- Tare
- Zero to full weighing range
- Span adjustment
- LNA: manual with external weight; LNA-R: semi-automatic with built-in weight
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
ViBRA LNA Series Heavy-Duty Precision Balances
Request a quoteOverview
Product overview

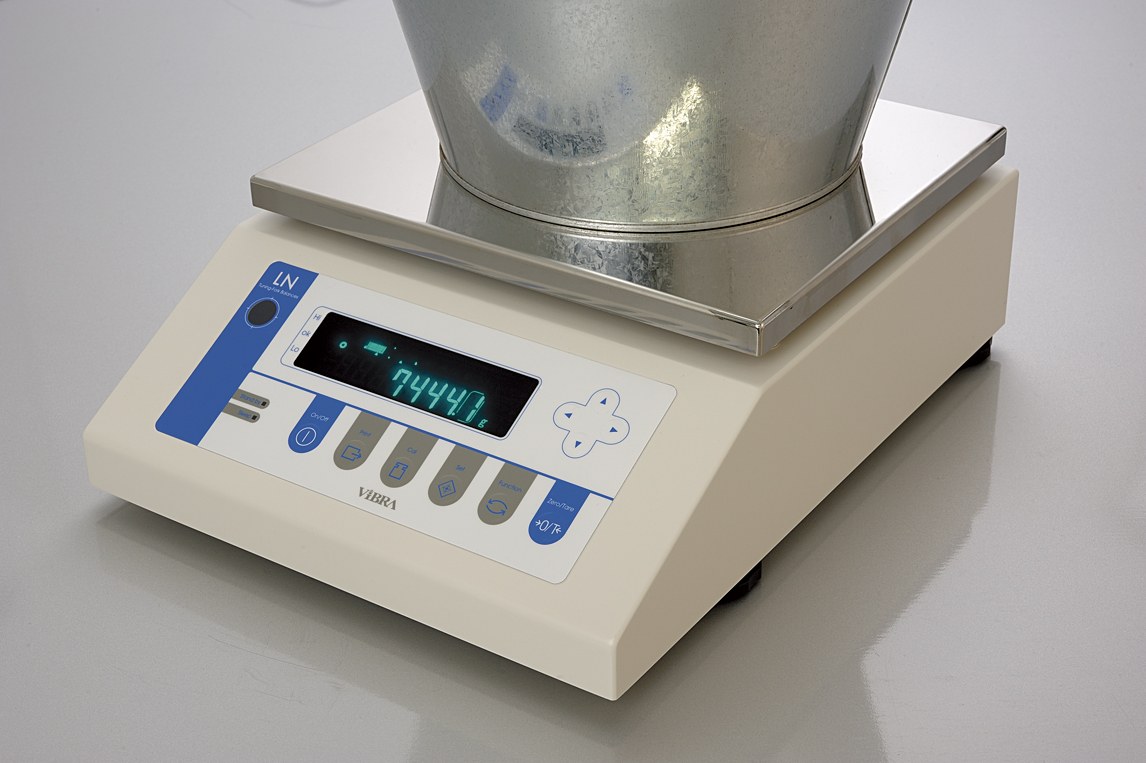

The LNA series is a heavy-duty precision balance range covering 620 g to 31 kg, with readability from 0.001 g to 0.1 g. It is aimed at light and heavy industry, jewellers and laboratories.
The balance has a very large weighing pan, a robust aluminium alloy die-cast housing and a large fluorescent display that stays readable in dark locations. Quick response and stable indication keep weighing efficient.
LNA-R models include a built-in weight so the balance can be calibrated with one touch of the CAL key. ViBRA states the series is OIML and EU class I / II approved, with some models still under certification.
Specifications
Technical specifications
21 parameters
General
- Capacity range
- 620 g to 31 kg
- Readability range
- 0.001 g to 0.1 g
- Tare
- Zero to full weighing range
- Span adjustment
- LNA: manual with external weight; LNA-R: semi-automatic with built-in weight
- Temperature and humidity range
- 5 to 35 °C (non-CE type), 10 to 30 °C (CE type); up to 80 % rh (non-condensing)
- Power source
- AC adapter, input 100-240 VAC, output 12 VDC
- Output
- RS232C (D-sub 9 pin) and printer output (Din 8 pin)
- Housing
- Aluminium alloy die casting
- Display
- Fluorescent display
External weight models (also -CE; -R built-in weight versions to 4200 g)
- LNA623
- Capacity 620 g; Readability 0.001 g; Verification interval e 0.01 g; Accuracy class I; Repeatability 0.001 g; Stabilization time 3.0 sec.
- LNA1202
- Capacity 1200 g; Readability 0.01 g; Verification interval e 0.1 g; Accuracy class II; Repeatability 0.01 g; Stabilization time 2.0 sec.
- LNA2202
- Capacity 2200 g; Readability 0.01 g; Verification interval e 0.1 g; Accuracy class II; Repeatability 0.01 g; Stabilization time 2.5 sec.
- LNA3202
- Capacity 3200 g; Readability 0.01 g; Verification interval e 0.1 g; Accuracy class II; Repeatability 0.01 g; Stabilization time 2.5 sec.
- LNA4202
- Capacity 4200 g; Readability 0.01 g; Verification interval e 0.1 g; Accuracy class II; Repeatability 0.01 g; Stabilization time 2.5 sec.
- LNA6202
- Capacity 6200 g; Readability 0.01 g; Verification interval e 0.1 g; Accuracy class I; Repeatability 0.01 g; Stabilization time 3.0 sec.
- LNA15001
- Capacity 15000 g; Readability 0.1 g; Verification interval e 1 g; Accuracy class II; Repeatability 0.1 g; Stabilization time 2.5 sec.
- LNA21001
- Capacity 21000 g; Readability 0.1 g; Verification interval e 1 g; Accuracy class II; Repeatability 0.1 g; Stabilization time 2.5 sec.
- LNA31001
- Capacity 31000 g; Readability 0.1 g; Verification interval e 1 g; Accuracy class II; Repeatability 0.1 g; Stabilization time 2.5 sec.
Options
- LNLM
- Relay contact
- LNR4
- RS422A output
- LNUH
- Under weighing hook (pre-installed on 620 g, 21 kg and 31 kg models)
Features
Key features
- 01
Large pan, robust body
Aluminium alloy die-cast housing for heavy-duty operation.
- 02
Fluorescent display
Clearly visible, even in dark locations.
- 03
Quick response
Stable indication for efficient weighing.
- 04
One-touch calibration
CAL key on built-in weight (R) models.
- 05
Wide range
620 g to 31 kg.
- 06
Output options
RS232C, printer output, relay contact and RS422A.
