Reference: SDI
ViBRA SDI Satellite Second Display
Second display for ViBRA balances, powered from the balance, for face-to-face sales in jewellery shops or hang-on display on production lines.
Key specifications
- Display
- LCD 12.5 mm (H)
- Dimensions
- 150 mm (W) x 89 mm (D) x 60 mm (H)
- Operating temperature
- 0 to 40 °C, 80 % R.H. or less
- Power source
- Supplied from the balance
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
ViBRA SDI Satellite Second Display
Request a quoteOverview
Product overview

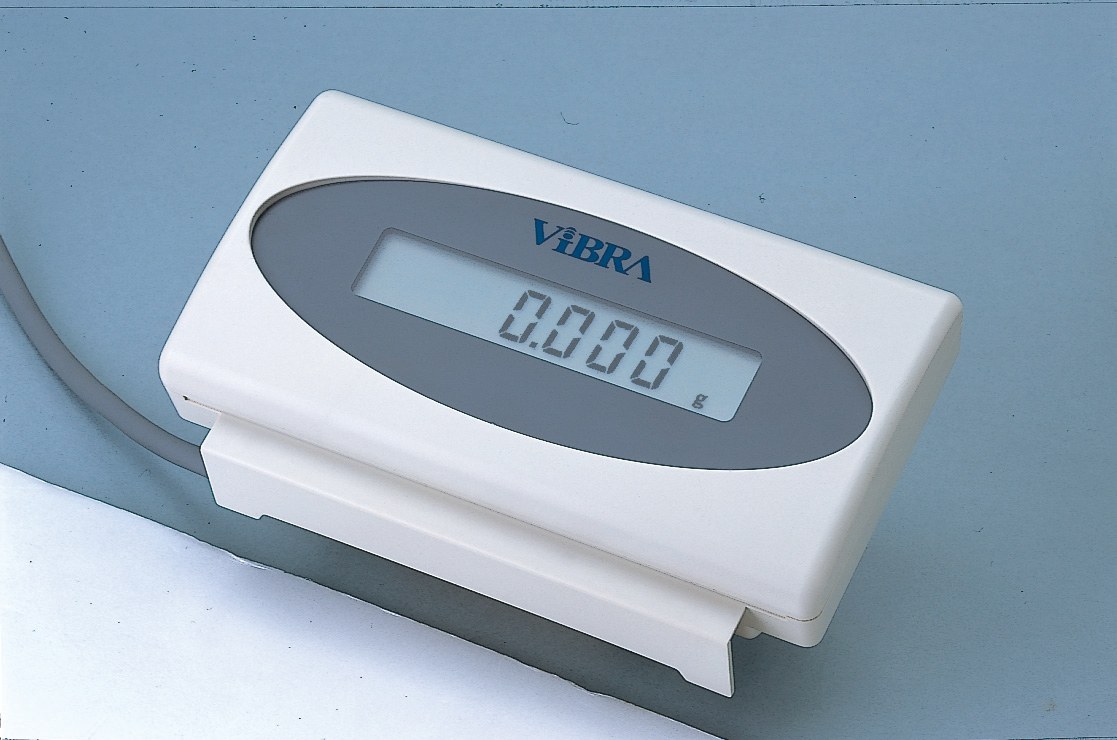

The SDI is a satellite second display for ViBRA balances. It connects to the printer or RS232C output port of the AJ and SJ series, and takes its power from the balance output port, so no AC adapter is needed.
ViBRA suggests uses such as face-to-face sales in jewellery shops and a hang-on display in a manufacturing line. It has a 12.5 mm LCD, measures 150 x 89 x 60 mm and ships with a 1 m cable.
Specifications
Technical specifications
7 parameters
General
- Display
- LCD 12.5 mm (H)
- Dimensions
- 150 mm (W) x 89 mm (D) x 60 mm (H)
- Operating temperature
- 0 to 40 °C, 80 % R.H. or less
- Power source
- Supplied from the balance
- AC adapter
- Not included
- Standard cable length
- 1 m
- Compatible balances
- ViBRA AJ and SJ series
Features
Key features
- 01
Second display
Shows weight to a second viewer or position.
- 02
Powered by the balance
No AC adapter needed.
- 03
Easy connection
Plugs into the printer or RS232C port of AJ and SJ series.
