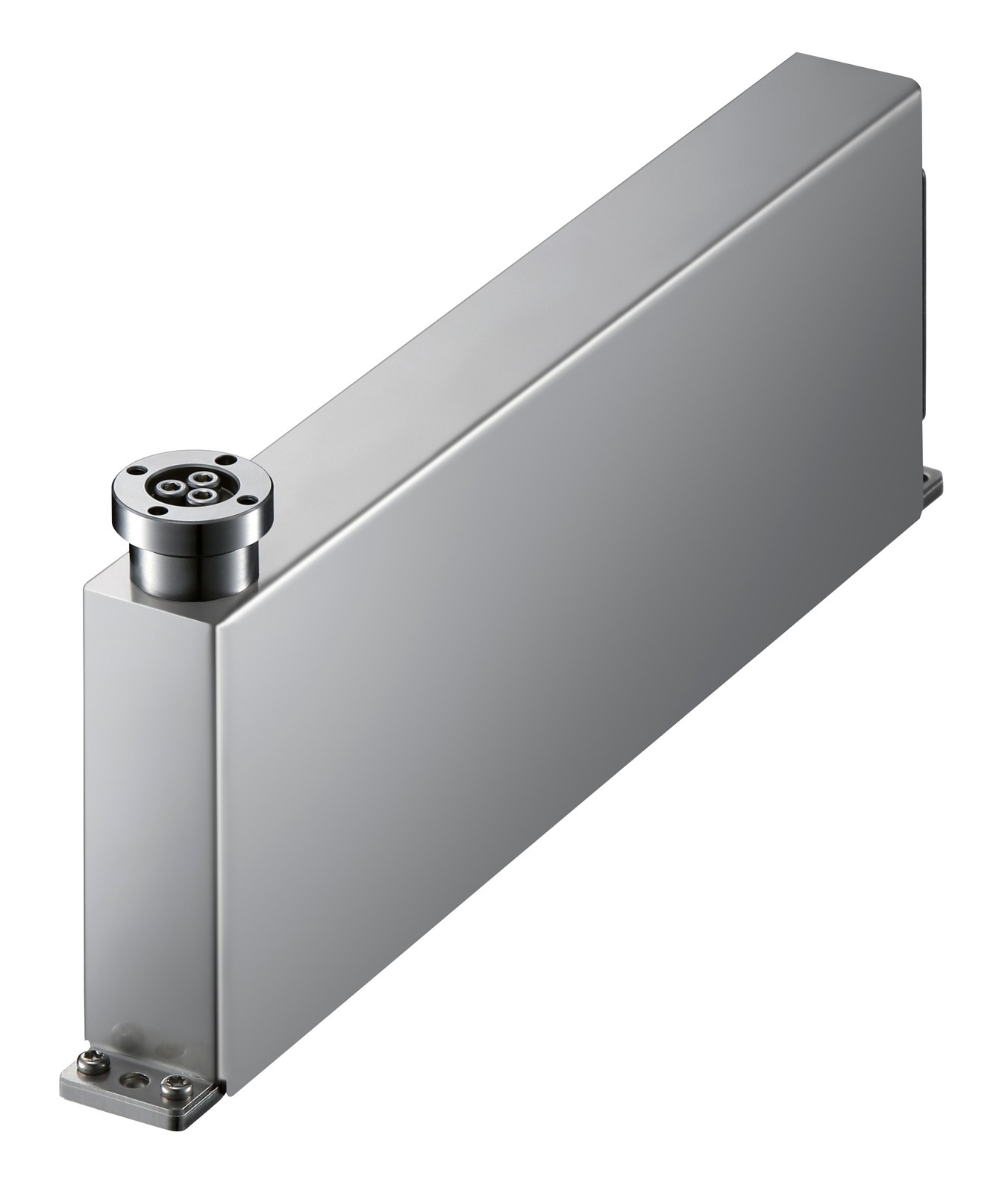

ViBRA UF Series Built-In Weighing Units
Compact stainless steel weighing modules, 56 mm wide, from 30 g to 3200 g with 0.4 second response and RS485 or RS232C output for integration into machines.
Key specifications
- Capacity range
- 30 g to 3200 g
- Readability range
- 0.0001 g to 0.01 g
- Tare
- Zero to full weighing range
- Span adjustment
- Manual with external calibration weight
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
ViBRA UF Series Built-In Weighing Units
Request a quoteOverview
Product overview
The UF series is a built-in weighing unit for OEM and automation use. Models cover 30 g to 3200 g with readability from 0.0001 g (UF-30) to 0.01 g (UF-3200). The enclosure is stainless steel and the UF-620 and UF-3200 can meet IP65 with an optional water-proof connector cable.
Stabilization is about 0.4 sec. and the data update rate reaches 106 times per second on the listed models, so weight data can be sent directly to a PLC or PC over half-duplex RS485 or full-duplex RS232C (1200 to 38.4 kbps). ViBRA describes the 56 mm width as top class in the industry.
The unit runs on 24 VDC. An optional UD-1 display unit, weighing pan, AC adaptor and connector cables are available.
Specifications
Technical specifications
19 parameters
General
- Capacity range
- 30 g to 3200 g
- Readability range
- 0.0001 g to 0.01 g
- Tare
- Zero to full weighing range
- Span adjustment
- Manual with external calibration weight
- Ingress protection
- IP65 on UF-620 and UF-3200 only, with optional water-proof connector cable
- Power source
- DC +24 V ±10 %, 0.1 A
- Interface
- Half duplex RS485, full duplex RS232C, 1200 to 38.4 kbps
- Stabilization time
- 0.4 sec.
- Data update rate
- Up to 106 times/sec.
- Enclosure
- Stainless steel
Models
- UF-30
- Capacity 30 g; Readability 0.0001 g; Repeatability 0.0001 g; Linearity ±0.0002 g; IP rating No
- UF-300
- Capacity 300 g; Readability 0.001 g; Repeatability 0.001 g; Linearity ±0.002 g; IP rating No
- UF-620
- Capacity 620 g; Readability 0.001 g; Repeatability 0.001 g; Linearity ±0.002 g; IP rating IP65
- UF-1200
- Capacity 1200 g; Readability 0.001 g; Repeatability 0.001 g; Linearity ±0.004 g; IP rating No
- UF-3200
- Capacity 3200 g; Readability 0.01 g; Repeatability 0.01 g; Linearity ±0.02 g; IP rating IP65
Display unit UD-1 (option)
- Display
- LCD with back-light
- Dimensions (W x D x H)
- 144 x 130 x 72 mm
Options
- UF WPAN
- Weighing pan
- UF CB / UF WPCB
- Connector cable / water-proof connector cable (10 m)
Features
Key features
- 01
High accuracy, fast response
Resolution down to 0.0001 g (UF-30), 0.4 sec. stabilization.
- 02
Stainless steel enclosure
Dust and water protection; IP65 on UF-620 and UF-3200 with optional cable.
- 03
Direct data output
RS485 or RS232C to PLC or PC.
- 04
Compact
56 mm width for most models.
- 05
Optional UD-1 display
Back-lit LCD display unit.
