Reference: A440 / E528

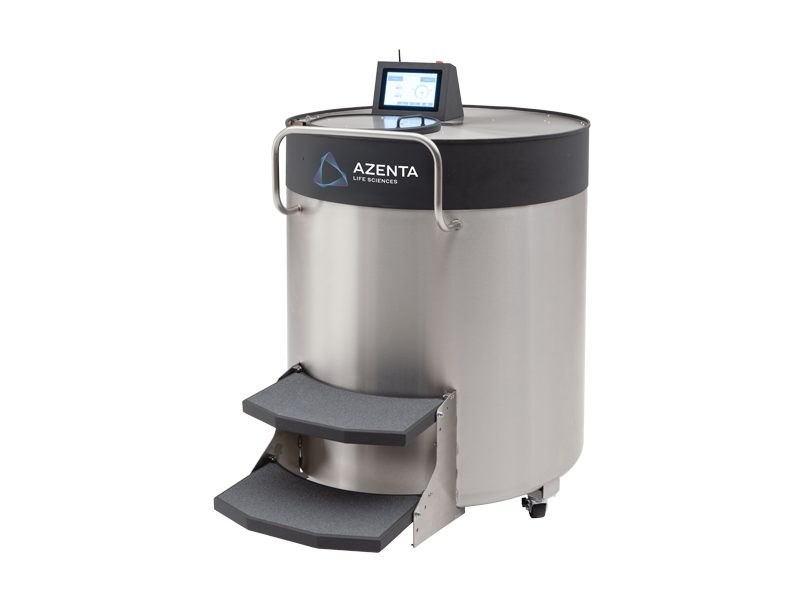

A440 & E528 High Efficiency Cryogenic Freezer
LN2 vapor-phase cryogenic freezers for -190 °C storage of up to 52,800 2 ml vials, with touchscreen control, alarms and remote monitoring.
Key specifications
- Storage
- -190 °C LN2 vapor storage
- 2 ml vial capacity, slim vertical racks
- A440: 44,000 (5 boxes/rack); E528: 52,800 (6 boxes/rack)
- 2 ml vial capacity, square racks
- A440: 41,600; E528: 48,000
- 25 ml cassette capacity
- A440: 3,241; E528: 3,704
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
A440 & E528 High Efficiency Cryogenic Freezer
Request a quoteOverview
Product overview
The A440 and its extended-height version E528 are stainless steel LN2 freezers for -190 °C vapor-phase storage in laboratories, repositories and clinical facilities, suitable for active, archive or quarantine collections. Azenta states they store 10 to 30% more samples than other leading freezer brands, with low LN2 use per sample.
A touchscreen controller with WiFi and LAN maintains freezer conditions automatically and sends text and email alerts. Data can be pushed to the cloud, emailed or saved to USB, and the freezer connects to an optional cloud portal for remote monitoring and predictive maintenance. Independent temperature and level monitoring can be added for redundancy, and battery backup with gas bypass is included.
For daily use, a cryogenic LED and automatic fog clearing improve visibility, while a hinged lid, folding steps, handle and workspace reduce liftover height. High-capacity racks limit exposure of non-target samples. The 150 L LN2 charge gives a hold time of over 15 days.
Specifications
Technical specifications
15 parameters
- Storage
- -190 °C LN2 vapor storage
- 2 ml vial capacity, slim vertical racks
- A440: 44,000 (5 boxes/rack); E528: 52,800 (6 boxes/rack)
- 2 ml vial capacity, square racks
- A440: 41,600; E528: 48,000
- 25 ml cassette capacity
- A440: 3,241; E528: 3,704
- 50 ml cassette capacity
- A440: 1,932; E528: 2,208
- Outer diameter
- 1,143 mm (45 in)
- Overall height
- A440: 1,499 mm; E528: 1,600 mm
- Usable height
- A440: 762 mm; E528: 864 mm
- Liftover height
- A440: 1,003 mm; E528: 864 mm
- Neck opening
- 462 mm (18.6 in)
- Empty weight
- A440: 408 kg; E528: 442 kg
- LN2 capacity (vapor storage)
- 150 L
- Hold time
- >15 days
- Warranty
- 3 years parts and craftsmanship; 7 years vacuum
- Safety / regulatory
- UL / CSA STD 61010-1; LVD (2014/35/EU)
Features
Key features
- 01
High storage density
Up to 52,800 2 ml vials or 3,704 25 ml cassettes in the E528.
- 02
Touchscreen with connectivity
WiFi, LAN, text and email alerts, and cloud data backup.
- 03
Remote monitoring
Optional cloud portal for real-time status and predictive maintenance.
- 04
Improved visibility
Cryogenic LED and automatic fog clear.
- 05
Ergonomic design
Hinged lid, folding steps and reduced liftover height.
- 06
Chain of custody
Lid access logging and support for secondary temperature and level monitoring.
- 07
Long hold time
150 L LN2 capacity with more than 15 days hold time.
