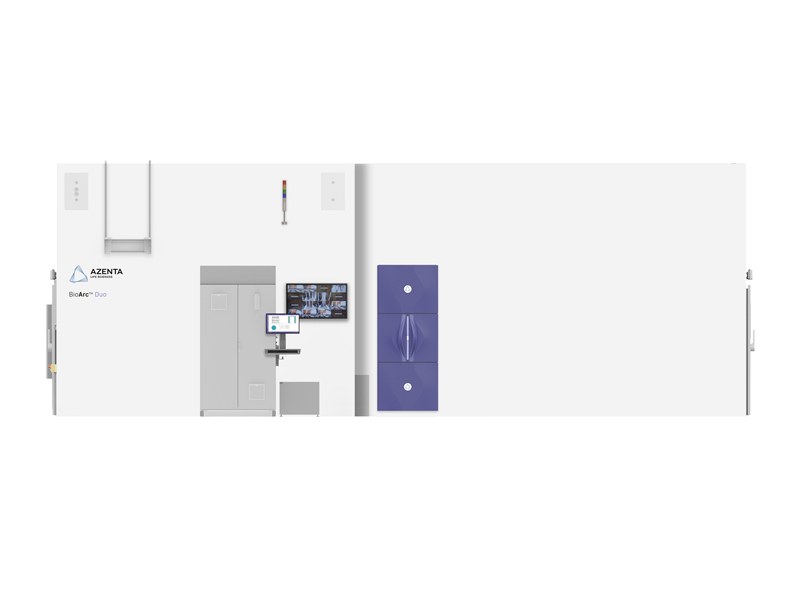

BioArc Duo -80/-20°C Automated Sample Storage System

Automated sample store with separate -80 °C and -20 °C zones in one enclosure, for biobanks, clinical trials and drug discovery collections.

Key specifications

Dimensions (H x W x D): 2.76 x 7.3 x 3.04 m
Temperature zones: -80 °C (or -70 °C) and -20 °C in one enclosure
-80 °C bank example capacity: 283,000 x 1.9 ml tubes
-20 °C bank example capacity: 500,000 x 0.5 ml tubes, or 100,000 x 1.4 ml tubes, or 1,500 shallow-well plates

Configured to your application by our specialists
Installed and commissioned on site
Training and after-sales support across Jordan, the GCC and MENA

BioArc Duo -80/-20°C Automated Sample Storage System

Overview

Product overview

BioArc Duo combines two storage temperatures in a single automated system. The -80 °C bank is used for biological samples, live-virus vaccines, viral vectors, long-term DNA, RNA and protein, biopharmaceuticals and bacterial cultures, while the -20 °C bank suits enzymes, antibodies, plasmids, small molecules and short-term nucleic acid storage.

Keeping both zones in one enclosure saves floor space and budget compared with running separate stores, and simplifies managing collections with mixed storage requirements. Shelf pitch is optimized to labware height for maximum density, and the system is configured with input/output, imaging and picking modules to suit the workflow.

Access is controlled per user, temperatures are held constant for sample integrity, and the ARCON Store Controller software handles inventory, chain of custody, audit trails and LIMS integration. Typical users are biobanks, research centers, clinical trial and diagnostics labs, and drug discovery programs.

Specifications

Technical specifications

6 parameters

Dimensions (H x W x D): 2.76 x 7.3 x 3.04 m
Temperature zones: -80 °C (or -70 °C) and -20 °C in one enclosure
-80 °C bank example capacity: 283,000 x 1.9 ml tubes
-20 °C bank example capacity: 500,000 x 0.5 ml tubes, or 100,000 x 1.4 ml tubes, or 1,500 shallow-well plates
Modules: Input/output, imaging and picking modules configured to requirements
Software: ARCON Store Controller, supports 21 CFR Part 11 compliance

Features

Key features

01
Dual temperature storage
-80 °C and -20 °C zones in one enclosure for mixed collections.
02
Optimized shelving
Shelf pitch matched to labware height to maximize density.
03
Configurable modules
Input/output, imaging and picking modules selected for the workflow.
04
Controlled access
Secure user access and consistent storage temperatures.
05
ARCON software
Inventory, audit trail, chain of custody and LIMS integration with 21 CFR Part 11 support.
