SampleArc Flex Ambient to -20°C Automated Sample Storage System
Configurable automated store from room temperature to -20 °C for compound libraries and biological samples, scalable to tens of millions of tubes.
Key specifications
- Storage temperature
- Room temperature to -20 °C
- Dimensions, smallest (L x D x H)
- 5.7 x 2.6 x 2.83 m
- Dimensions, largest (L x D x H)
- 17.5 x 2.6 x 4.83 m
- Acoustic tube capacity
- 3,150,000 to 27,000,000 tubes
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA

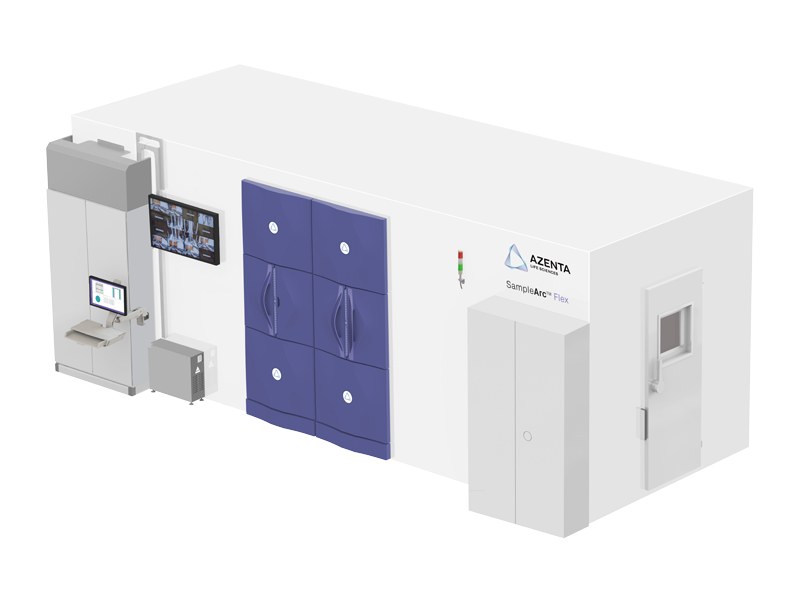

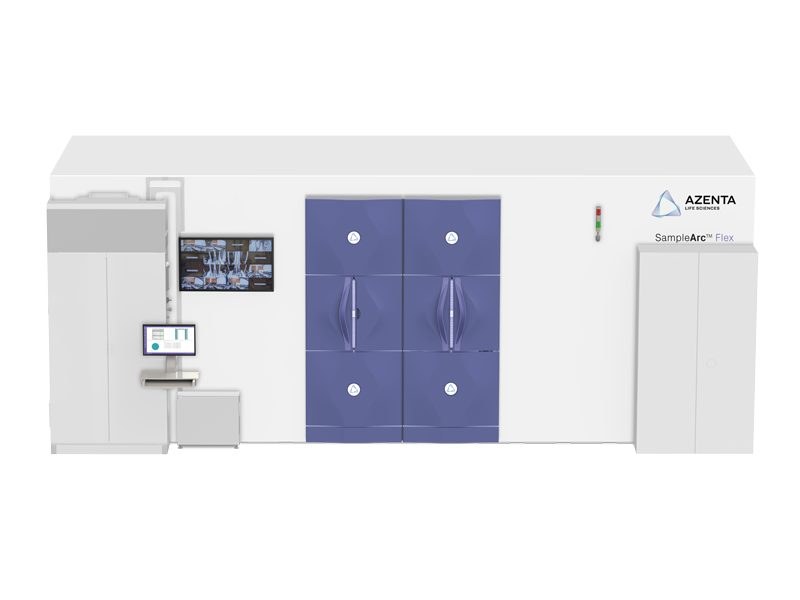

SampleArc Flex Ambient to -20°C Automated Sample Storage System
Request a quoteOverview
Product overview
SampleArc Flex is a modular automated storage system for sample inventories kept between room temperature and -20 °C. Azenta designs each installation around the customer's workflow, collection growth and throughput needs, with capacities ranging from about 105,000 to over 22 million tubes depending on labware.
The store handles one of the widest ranges of labware in a single system: SBS-format plates, tubes, acoustic tubes, cryovials, cryoboxes and syringes. Multi-pitch shelving and an imaging module that reads barcodes, labware type and height place each item in an optimal location, and reformatting into high-density racks can more than double capacity versus SBS-format storage.
Standard input/output, imaging and picking modules can be chosen at order or upgraded later, and dual-shuttle automation supports more than 100,000 tube picks per day. An automation interface links the store to external robotics, and ARCON software manages inventory, access rights, audit trails and LIMS integration.
Specifications
Technical specifications
10 parameters
- Storage temperature
- Room temperature to -20 °C
- Dimensions, smallest (L x D x H)
- 5.7 x 2.6 x 2.83 m
- Dimensions, largest (L x D x H)
- 17.5 x 2.6 x 4.83 m
- Acoustic tube capacity
- 3,150,000 to 27,000,000 tubes
- 0.2 ml tube capacity
- 2,650,000 to 22,500,000 tubes
- 0.9 ml tube capacity
- 1,220,000 to 10,400,000 tubes
- 1.5 ml tube capacity
- 445,000 to 3,800,000 tubes
- SBS microplate capacity (14.5 mm, foil sealed)
- 18,800 to 160,000 plates
- Throughput
- Over 100,000 tube picks in 24 hours with dual-shuttle automation
- Software
- ARCON Store Controller, supports 21 CFR Part 11 compliance
Features
Key features
- 01
Scalable capacity
From roughly 105,000 to over 22 million tubes depending on labware.
- 02
Wide labware range
Plates, tubes, acoustic tubes, cryovials, cryoboxes and syringes in one store.
- 03
High throughput
Dual-shuttle automation supports over 100,000 tube picks in 24 hours.
- 04
Multi-pitch shelving
Imaging module measures labware and assigns optimal shelf locations.
- 05
Automation interface
Direct connection to external automation systems.
- 06
ARCON software
Inventory control, user roles, audit trails and LIMS integration.
