CryoArc Tera -190°C LN2-Based Automated Storage System
Automated LN2 vapor-phase store at -190 °C for large cryogenic collections, holding up to 630 cryoboxes or 3,360 cassettes with full inventory tracking.
Key specifications
- Storage temperature
- -190 °C in LN2 vapor phase
- Storage capacity
- 630 x 2 in cryoboxes (or equivalent)
- 1.0 ml cryotube capacity
- 123,480 Azenta cryotubes
- 2.0 ml cryotube capacity
- 63,000 Azenta cryotubes
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
CryoArc Tera -190°C LN2-Based Automated Storage System
Request a quoteOverview
Product overview

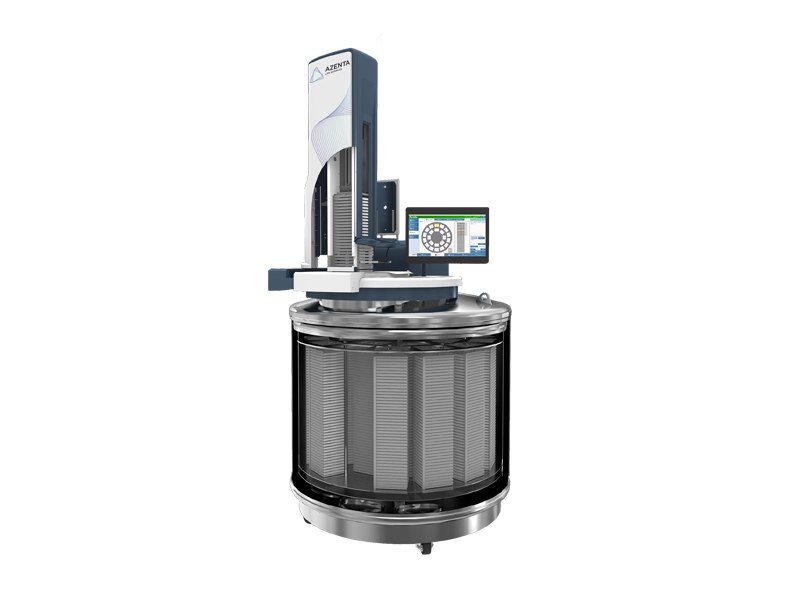

CryoArc Tera is an automated cryogenic store for research and clinical facilities with large cell and biological sample collections. It pairs a high-efficiency stainless steel LN2 freezer with an insulated robotic transport tower and CryoArc software, and stores up to 630 cryoboxes, 3,360 25 ml cassettes or 1,680 50 ml cassettes in any mix.
The vapor phase keeps samples at a consistent -190 °C from top to bottom. If power or LN2 supply is interrupted, the system holds temperature for up to 21 days, and an onboard UPS keeps storage and data safe. Target and non-target samples are kept below the glass transition temperature during storage and retrieval, and every exposure is logged.
Users load and retrieve boxes from 1 to 7 inches tall through a vending-machine style interface with a touchscreen, avoiding the strain of leaning over an open tank. Inventory is tracked to tube, cassette and plate level, user permissions control access, and an optional WebAPI connects to the facility LIMS. Optional CryoPod Carriers attach to the rim to keep retrieved samples below -150 °C.
Specifications
Technical specifications
9 parameters
- Storage temperature
- -190 °C in LN2 vapor phase
- Storage capacity
- 630 x 2 in cryoboxes (or equivalent)
- 1.0 ml cryotube capacity
- 123,480 Azenta cryotubes
- 2.0 ml cryotube capacity
- 63,000 Azenta cryotubes
- Cassette capacity
- 3,360 x 25 ml cassettes or 1,680 x 50 ml cassettes
- Box heights accepted
- 1 to 7 in
- Static holding time (vapor)
- ≥21 days
- Backup power
- Onboard UPS
- Compliance
- Supports FDA 21 CFR Part 11
Features
Key features
- 01
Large mixed capacity
Up to 630 cryoboxes, 3,360 x 25 ml or 1,680 x 50 ml cassettes.
- 02
Consistent -190 °C
LN2 vapor phase with up to 21 days of temperature stability during outages.
- 03
Sample protection below Tg
Insulated robotic tower and software controls trace every exposure.
- 04
Ergonomic access
Vending-machine style loading avoids reaching into an open LN2 tank.
- 05
CryoArc software
Tracks sample location, movement, user access, temperature, LN2 level and alarms.
- 06
LIMS and compliance
Optional WebAPI LIMS integration and support for 21 CFR Part 11.
- 07
Remote monitoring
Monitoring portal with text or email alerts from anywhere.
