Reference: BCS-502

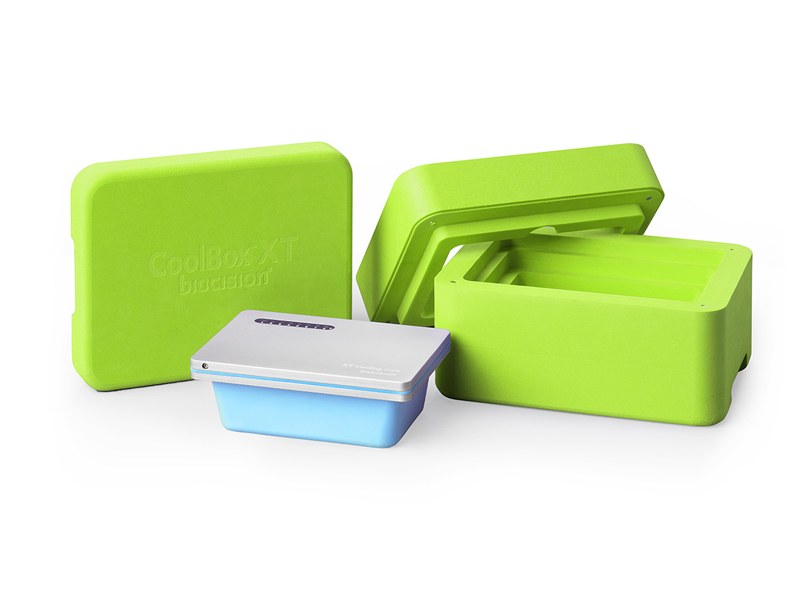

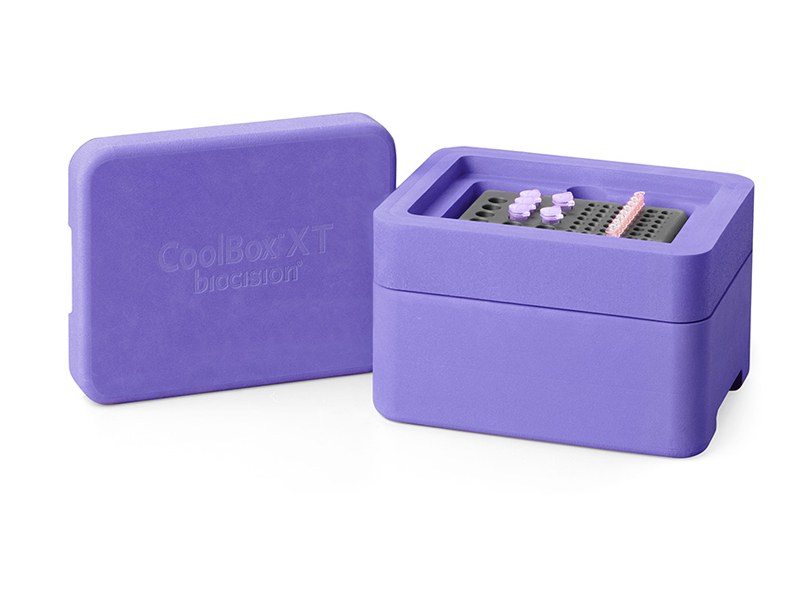

CoolBox XT Cooling Workstation, Single Capacity

Ice-free benchtop cooling workstation that keeps samples at 0.5-4 °C for up to 16 hours or frozen for up to 8 hours, with no power or batteries.

Key specifications

Cooling (0.5 to 4 °C), lid open/closed
10 hours / 16 hours
Freezing (<0 °C), lid open/closed
5 hours / 8 hours
Internal dimensions (L x W x H)
14.0 x 9.4 x 9.9 cm
External dimensions (L x W x H)
20.0 x 16.0 x 15.0 cm
  • Configured to your application by our specialists
  • Installed and commissioned on site
  • Training and after-sales support across Jordan, the GCC and MENA

Overview

Product overview

CoolBox XT is a compact benchtop workstation that keeps samples cold or frozen without ice, electricity or batteries. A core is frozen at -20 °C and placed in the insulated base; a CoolRack module holding tubes or plates sits on the core and equilibrates by thermal conduction.

With a cooling core it holds samples at a uniform 0.5 to 4 °C for up to 16 hours with the lid closed, and with a freezing core it keeps them below 0 °C for up to 8 hours. A built-in 1-8 °C indicator gives visual confirmation of temperature, and duration can be extended by swapping in a second frozen core. Dry ice can replace the core for snap freezing.

The small footprint suits use inside a hood for temperature-sensitive reagents, enzymes and samples. It accepts most CoolRack modules, and combination packs are offered for PCR plates, PCR strips, cryotubes and microtubes.

Specifications

Technical specifications

8 parameters

Cooling (0.5 to 4 °C), lid open/closed
10 hours / 16 hours
Freezing (<0 °C), lid open/closed
5 hours / 8 hours
Internal dimensions (L x W x H)
14.0 x 9.4 x 9.9 cm
External dimensions (L x W x H)
20.0 x 16.0 x 15.0 cm
For use with
CoolRack tube and plate modules
Power
None: no ice, electricity or batteries
Temperature indicator
Built-in 1-8 °C indicator
Included
Base, collar, lid and 1 cooling or freezing core
Features

Key features

  • 01

    No ice or power

    Works without ice, electricity or batteries.

  • 02

    Long hold times

    Cold for up to 16 hours or frozen for up to 8 hours.

  • 03

    Temperature indicator

    Built-in 1-8 °C visual indicator.

  • 04

    Modular

    Accepts most CoolRack tube and plate modules.

  • 05

    Hood friendly

    Small footprint for work inside a biosafety cabinet.

  • 06

    Snap freezing option

    Dry ice can replace the core for snap freezing.
