Reference: 68-0704

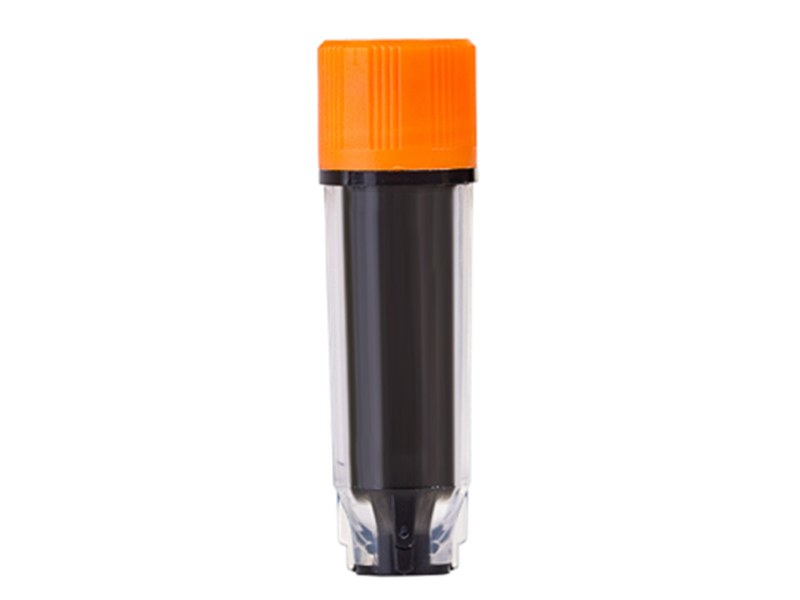

0.5ml 2D-coded Tube, 96-format, External Thread

0.5 ml polypropylene storage tube with a permanent laser-etched 2D code on the base, in 96-format SBS racks, for biobanks and compound stores down to -196 °C.

Key specifications

Max. working volume
0.52 ml (screw cap); 0.50 ml (septum cap)
Tube height
26.4 mm
Tube height with cap
29.8 mm (screw cap); 27.6 mm (septum cap)
Inner diameter
6.5 mm
  • Configured to your application by our specialists
  • Installed and commissioned on site
  • Training and after-sales support across Jordan, the GCC and MENA

Overview

Product overview

This 0.5 ml external-thread tube from the FluidX range is designed for long-term sample tracking in biobanks, compound libraries and other biological or chemical stores, including cryogenic storage in the vapor phase. Each tube carries a unique, high-contrast 2D code laser-etched into its base, giving a permanent link between the sample and its data.

The codes can be read without removing tubes from the rack and remain readable through frost, condensation or minor damage. Every tube is 100% checked for readability and uniqueness and leak tested. The external thread provides more working volume than internal-thread tubes, and the tubes work with Azenta and other industry-standard readers, cappers and automated stores.

Tubes are sealed with screw caps, whose compression seal and 180° double-start thread suit automated capping, or with TPE septum caps for occasionally accessed samples. The 96-format SBS racks feature TwistLock, TubeLock and LidLock options and a rack 2D code for automatic orientation, and rack bases contain up to 90% recycled polypropylene.

Specifications

Technical specifications

12 parameters

Max. working volume
0.52 ml (screw cap); 0.50 ml (septum cap)
Tube height
26.4 mm
Tube height with cap
29.8 mm (screw cap); 27.6 mm (septum cap)
Inner diameter
6.5 mm
Outer diameter with cap
8.7 mm
Center to center
9.0 mm
Minimum temperature
-196 °C with screw cap (not for liquid-phase LN2); -80 °C with septum cap
Overall rack height (including lid)
32.9 mm
Material
Virgin polypropylene
Code
Laser-etched 2D code on tube base
Pack options
Capped or uncapped, bulk or racked; 960 tubes per pack
Compatible racks
66-51004 LowBase, 66-51026 HighBase (96-format)
Features

Key features

  • 01

    Permanent 2D code

    Laser-etched on the tube base and readable without removing tubes from the rack.

  • 02

    Reliable in the cold

    High-contrast codes read through frost and condensation; screw-capped tubes rated to -196 °C.

  • 03

    100% quality control

    Each tube is checked for code readability and uniqueness and leak tested.

  • 04

    Automation-friendly caps

    Screw caps with 180° double-start thread or TPE septum caps in 96-format mats.

  • 05

    Secure racks

    TwistLock, TubeLock, LidLock and rack 2D code for orientation.

  • 06

    Recycled rack bases

    SBS rack bases made with up to 90% recycled polypropylene.
