Reference: ZTS-HND2
Handheld 2 Tube Reader
Pocket-sized, one-handed 2D tube code reader that works without a computer, for checking samples at the freezer, LN2 tank or in the field.
Key specifications
- Code compatibility
- All 2D DataMatrix coded tubes
- Dimensions (L x W x D)
- 155 x 65 x 38 mm
- Weight
- 150 g
- Battery life
- Typically 8 hours between charges
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Handheld 2 Tube Reader
Request a quoteOverview
Product overview

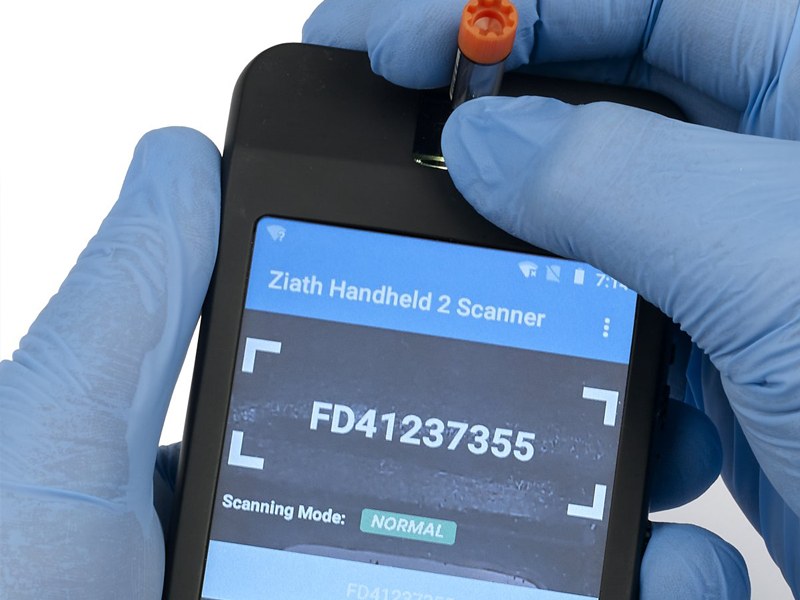

The Handheld 2 is a portable reader for 2D DataMatrix coded tubes that is held and operated in one hand, leaving the other free for handling tubes. It needs no external computer or tablet; the software is preloaded and starts immediately.
Four modes cover common tasks: reading a code to view it on screen, working through a picklist to confirm the right tubes are taken from the freezer, viewing stored details for a scanned sample, and entering new data against a code. A companion client application defines the data fields and transfers data to and from the device, so it can be used in freezer rooms or remote sites with no network.
The reader weighs 150 g, stores typically up to 60,000 sample records and runs about 8 hours between charges.
Specifications
Technical specifications
7 parameters
- Code compatibility
- All 2D DataMatrix coded tubes
- Dimensions (L x W x D)
- 155 x 65 x 38 mm
- Weight
- 150 g
- Battery life
- Typically 8 hours between charges
- On-board data storage
- Typically up to 60,000 samples
- Battery charger
- Input 100-240 VAC 50/60 Hz, 260 mA; output 5 VDC, 2.4 A
- Operation modes
- Code reading, picklist, data view, data entry
Features
Key features
- 01
One-handed use
Leaves the other hand free for handling tubes.
- 02
No computer needed
Preloaded software boots immediately.
- 03
Picklist mode
Confirms correct tubes are pulled at the freezer.
- 04
Data view and entry
Look up or record sample information by scanning.
- 05
Offline operation
Client app transfers data where no network is available.
- 06
Universal 2D support
Reads all 2D DataMatrix coded tubes.
