IntelliXcap Automated Screw Cap Decapper/Recapper 96-format
Automated benchtop decapper/recapper that opens or closes a full rack of 96 screw-cap tubes in as little as 20 seconds, for biobanks and compound libraries.
Key specifications
- Format
- 96-format racked screw-cap tubes (internal and external thread)
- Capping/decapping speed
- 20-40 s to decap or recap a full rack
- Cartridge change
- Under 2 minutes, no specialist needed
- Dimensions (H x W x D)
- 340 x 256 x 464 mm
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
IntelliXcap Automated Screw Cap Decapper/Recapper 96-format
Request a quoteOverview
Product overview

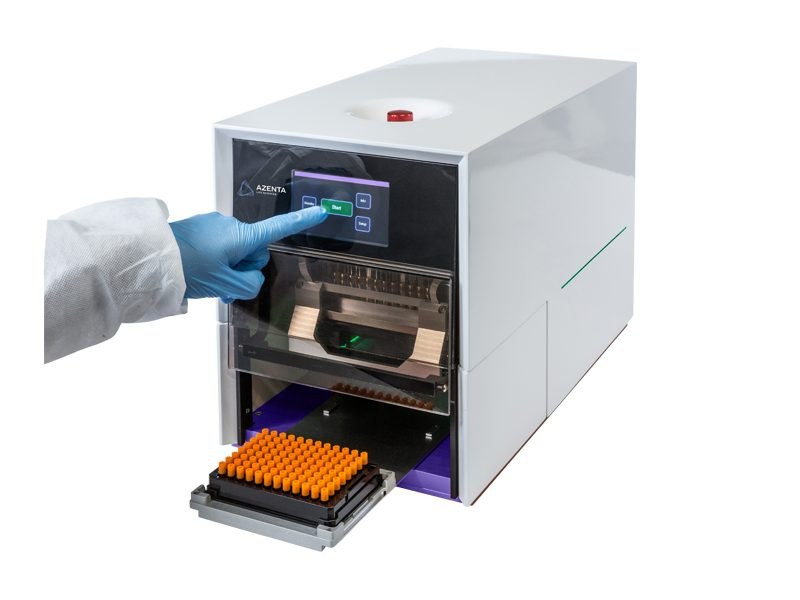

The IntelliXcap 96-format is an automated screw-cap decapper and recapper for laboratories that manage biobank samples or compound libraries in racked 2D-coded tubes. It removes or replaces the caps on a complete 96-tube rack in 20 to 40 seconds, cutting manual handling time and repetitive strain.
Its modular design is built around interchangeable cap-driver cartridges. Swapping a cartridge changes the instrument to a different tube type in under two minutes without a service engineer, and cartridges exist for both internal and external thread tubes. With the right cartridge it works with all Azenta storage tubes and many 96-format tubes from other makers.
Operation is through a simple touch panel, and electric torque control reduces wear on the cap drivers. An extended rack stage is available so the unit can be integrated into fully automated workflows.
Specifications
Technical specifications
9 parameters
- Format
- 96-format racked screw-cap tubes (internal and external thread)
- Capping/decapping speed
- 20-40 s to decap or recap a full rack
- Cartridge change
- Under 2 minutes, no specialist needed
- Dimensions (H x W x D)
- 340 x 256 x 464 mm
- Weight
- 22 kg
- Ambient operating temperature
- 15 to 35 °C
- Torque control
- Electric
- Tube compatibility
- Azenta tubes and many other 96-format screw-cap tubes (e.g. LVL, Micronic, Matrix, Nunc, Greiner) with matching cartridges
- Automation option
- Extended Stage for Automation (46-8112)
Features
Key features
- 01
Fast rack processing
Decaps or recaps 96 tubes in 20 to 40 seconds.
- 02
Interchangeable cartridges
Change tube type in under 2 minutes without specialist help.
- 03
Broad tube support
Internal and external thread tubes from Azenta and other manufacturers.
- 04
Touch panel control
Quick installation and simple operation.
- 05
Electric torque control
Consistent cap torque with less wear on drivers.
- 06
Automation ready
Extended rack stage for integration into automated systems.
