IntelliXcap S1 Semi-Automated Screw Cap Single Tube Decapper/Recapper
Compact one-handed decapper/recapper for single screw-cap tubes from cryotubes to 50 ml centrifuge tubes, with no gripper change needed.
Key specifications
- Cap compatibility
- 11-40 mm diameter screw caps, internal and external thread
- Tube types
- Cryotubes, microcentrifuge tubes, 15 ml and 50 ml centrifuge tubes, cell culture and glass tubes
- Dimensions (D x W x H)
- 240 x 170 x 300 mm
- Weight
- 3.8 kg
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
IntelliXcap S1 Semi-Automated Screw Cap Single Tube Decapper/Recapper
Request a quoteOverview
Product overview

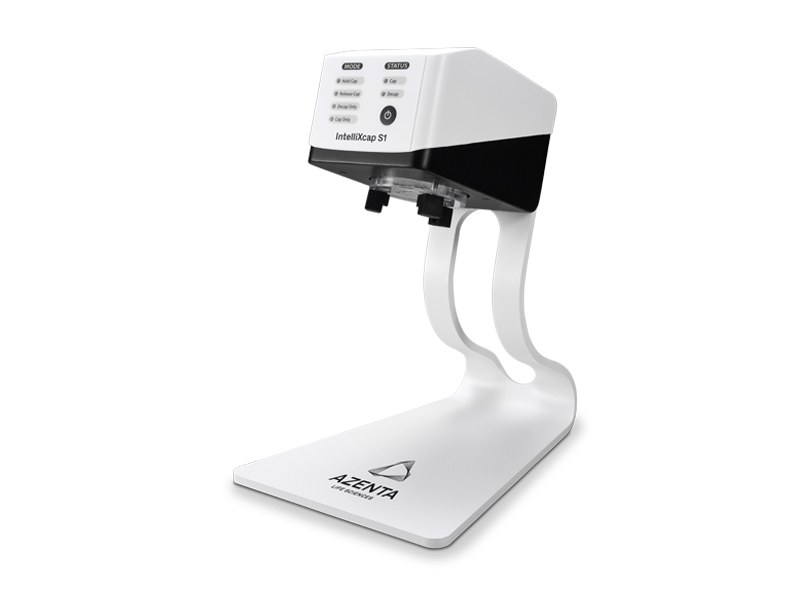

The IntelliXcap S1 is a small benchtop instrument that removes and replaces screw caps on individual tubes. It is aimed at larger master sample tubes, including centrifuge, cell culture and glass tubes, and handles cap diameters from 11 to 40 mm with both internal and external threads.
The same gripper covers cryotubes, microcentrifuge tubes and 15 ml and 50 ml centrifuge tubes, so there is no tooling change between tube sizes. Each cap is tightened with consistent torque in line with manufacturer specifications, which supports good seal quality and repeatable results.

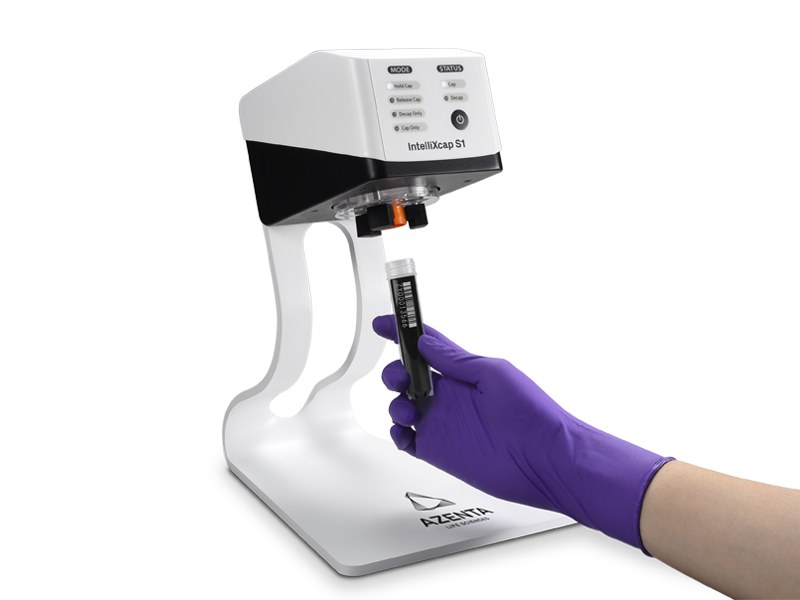

One-handed, ergonomic operation reduces the risk of repetitive strain injury from manual capping. At 3.8 kg and a footprint of 240 x 170 mm it fits on crowded benches and inside biosafety cabinets.
Specifications
Technical specifications
6 parameters
- Cap compatibility
- 11-40 mm diameter screw caps, internal and external thread
- Tube types
- Cryotubes, microcentrifuge tubes, 15 ml and 50 ml centrifuge tubes, cell culture and glass tubes
- Dimensions (D x W x H)
- 240 x 170 x 300 mm
- Weight
- 3.8 kg
- Sensing method
- Pressure sensor
- Power adapter
- Input AC 100-240 V, 50/60 Hz; output DC 24 V, 2.7 A, 65 W
Features
Key features
- 01
No gripper change
Handles tubes from cryovials to 50 ml centrifuge tubes with one gripper.
- 02
Consistent torque
Applies the same torque to every cap for reliable sealing.
- 03
Ergonomic
One-handed operation reduces repetitive strain injuries.
- 04
Compact
Fits on benches and in safety cabinets.
- 05
Internal and external threads
Works with both thread types and cap sizes from 11 to 40 mm.
From order to operation
We stay with the instrument after it arrives
Al-Shaker specifies the configuration, documents the system, and supports it across Jordan, the GCC, and MENA.
- 01
Consult
- 02
Plan
- 03
Supply
- 04
Install
- 05
Train
- 06
Support
