Reference: DP-MC

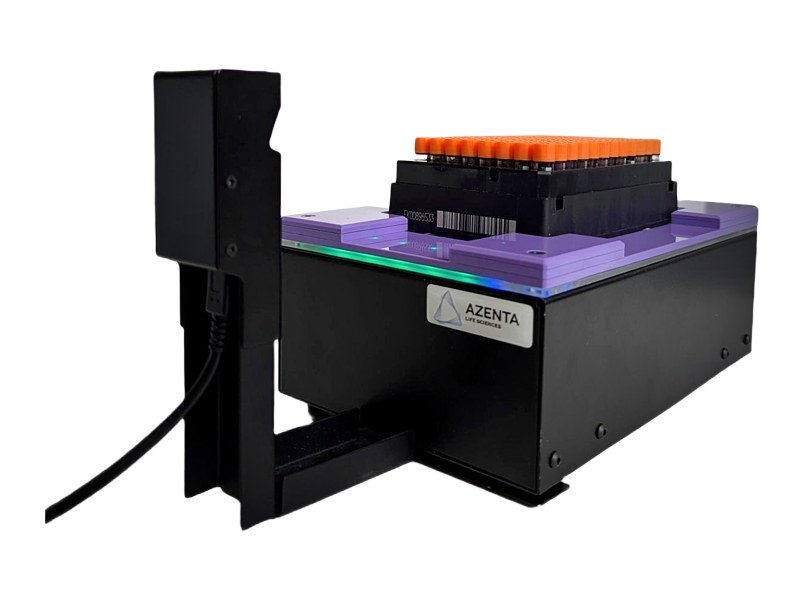

Mirage Connect Rack Reader

Networked camera-based reader that decodes every 2D-coded tube in an SBS rack at once, with an anti-condensation coating for reading straight from the freezer.

Key specifications

Camera
16 MP autofocus decoding camera
Labware compatibility
24, 48, 96, 138 HD, 240 and 384 racks and acoustic racks as standard; templates for other SBS racks
Code compatibility
2D DataMatrix; linear codes with optional linear barcode attachment
Dimensions (D x W x H)
208 x 135 x 80 mm
  • Configured to your application by our specialists
  • Installed and commissioned on site
  • Training and after-sales support across Jordan, the GCC and MENA

Overview

Product overview

Mirage Connect is a low-profile rack reader that images the base of a whole rack and decodes the 2D DataMatrix code on every tube in one pass. A 16-megapixel autofocus camera handles 24, 48, 96, 138 HD, 240 and 384-position racks plus acoustic racks as standard, and Azenta can add templates for other commercial SBS racks.

It is described as the first fully networked camera reader: an RJ45 connection lets several users reach the DP5 software through a server address, including from a tablet or phone, and multiple readers can run on the same network. DP5 distinguishes clear reads, damaged codes and empty positions, uses AI-assisted no-tube detection, and exports to CSV, Excel, XML, JSON and other formats.

For cold samples, a passive Cryoprotection coating prevents condensation when racks come straight from cryogenic storage, without heaters or blown air that could warm samples. The small footprint also suits integration on liquid handling decks, and DP5 software upgrades are free for life.

Specifications

Technical specifications

12 parameters

Camera
16 MP autofocus decoding camera
Labware compatibility
24, 48, 96, 138 HD, 240 and 384 racks and acoustic racks as standard; templates for other SBS racks
Code compatibility
2D DataMatrix; linear codes with optional linear barcode attachment
Dimensions (D x W x H)
208 x 135 x 80 mm
Weight
1.35 kg
Power
100-240 VAC adapter, USB-C power; ≤10 W
Working temperature
5 to 35 °C
Connectivity
RJ45 network and USB
Data export
CSV, Text, XLS, XML, JSON, Python, DB, PNG, e-mail
Host operating system
Windows 10, 11
Software
DP5 with network license, remote API; lifetime free upgrades
Warranty
2 years
Features

Key features

  • 01

    Whole-rack decoding

    Reads all tubes in a rack in one image with a 16 MP camera.

  • 02

    Wide rack support

    24 to 384-position racks, 138 HD and acoustic racks as standard.

  • 03

    Networked

    RJ45 connectivity with multi-user DP5 access from PC, tablet or phone.

  • 04

    Cryoprotection

    Passive coating prevents condensation on cold racks.

  • 05

    Smart decoding

    Separates good reads, damaged codes and empty positions.

  • 06

    Robot friendly

    Low profile for use on liquid handling systems.

  • 07

    Lifetime upgrades

    Free DP5 software upgrades for life.
