Reference: 59-2000
Semi-Automated Sheet Heat Sealer (formerly IntelliXseal SA)
Compact benchtop heat sealer using precut seal sheets for PCR, assay and storage plates, with an electric sealing drive for consistent results.
Key specifications
- Dimensions (W x L x H)
- 181 x 275 x 310 mm
- Sealing temperature range
- 60-200 °C
- Weight
- 9 kg
- Voltage
- 110/230 V
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Semi-Automated Sheet Heat Sealer (formerly IntelliXseal SA)
Request a quoteOverview
Product overview

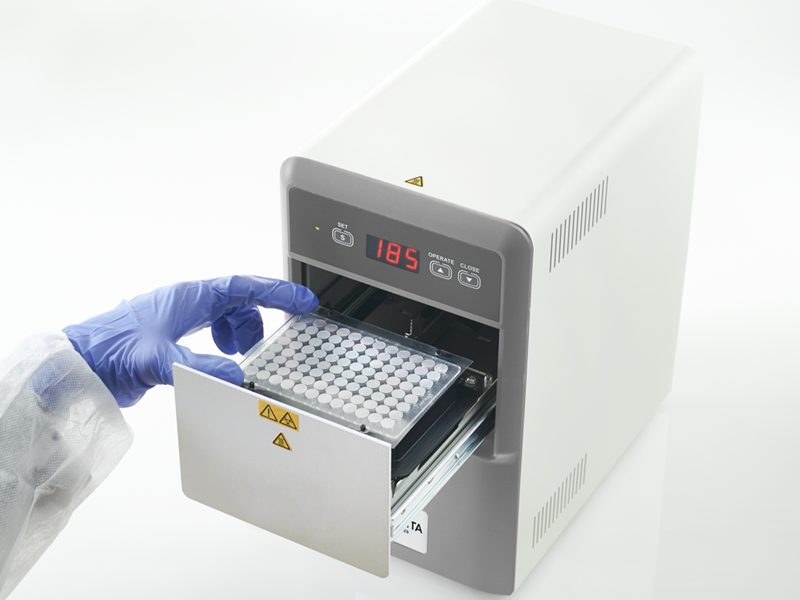

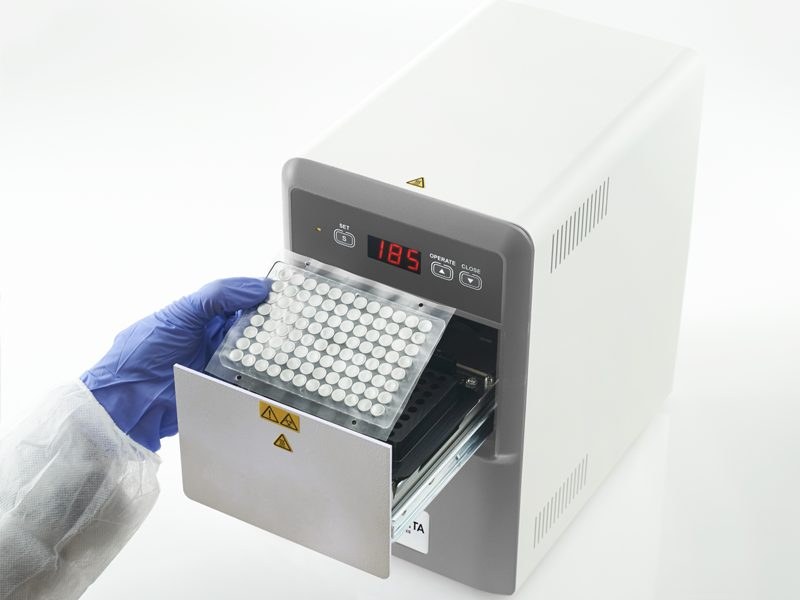

The Semi-Automated Sheet Heat Sealer, formerly IntelliXseal SA, is a compact 9 kg benchtop unit for sealing microplates, PCR plates, assay plates and deep-well storage plates with precut seal sheets. The user places plate and seal on the holder and presses Operate; the drawer closes and an electric mechanism carries out the seal, removing operator variation.
Temperature is adjustable from 60 to 200 °C with a real-time display, and a rapid heating element brings the unit to temperature within minutes. When idle it drops to a 60 °C standby and later switches off, with both timings adjustable by the user.
A low-cost adapter system covers different plate types: the standard carrier for deep-well and most skirted plates is included, with optional carriers for 96 and 384-well PCR plates, Roche 1536 plates, storage plates and Individual Access plates. A weighted platen and sealing frame help with films that tend to curl, and an RS-232 port allows integration into automated systems.
Specifications
Technical specifications
9 parameters
- Dimensions (W x L x H)
- 181 x 275 x 310 mm
- Sealing temperature range
- 60-200 °C
- Weight
- 9 kg
- Voltage
- 110/230 V
- Power
- 300 W max
- Standby
- Element drops to 60 °C when idle; auto switch-off after longer idle (adjustable)
- Interface
- RS-232 port for automation integration
- Plate formats
- SBS PP and PS plates, deep-well blocks, skirted/semi-skirted/non-skirted PCR plates, Individual Access PCR plates
- Included
- Universal power supply, standard plate support adapter (59-2001), 12-month parts and labor warranty
Features
Key features
- 01
Consistent sealing
Electric sealing mechanism eliminates operator variation.
- 02
Real-time display
Shows heating progress; rapid start-up within minutes.
- 03
Energy saving
Automatic 60 °C standby and auto switch-off with adjustable timing.
- 04
Adapter system
Interchangeable plate carriers for PCR, storage, 1536 and Individual Access plates.
- 05
Sealing aids
Weighted platen and sealing frame for curling films.
- 06
Automation port
RS-232 for integration with automated systems.
