Reference: V1-T / V2-T / V3-T / V6-T
Screw-Thread Autosampler Vials (8-425, 9-425, 10-425, 13-425)
USP Type 1 borosilicate glass screw-thread vials in four neck finishes (8-425, 9-425, 10-425 and 13-425), clear or amber, with matching caps and septa.
Key specifications
- Material
- USP Type 1 borosilicate glass
- Bottom style
- Flat bottom
- Pack quantity
- 100 pcs/box (vials and caps)
- Opening
- 8-425 screw top
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Screw-Thread Autosampler Vials (8-425, 9-425, 10-425, 13-425)
Request a quoteOverview
Product overview

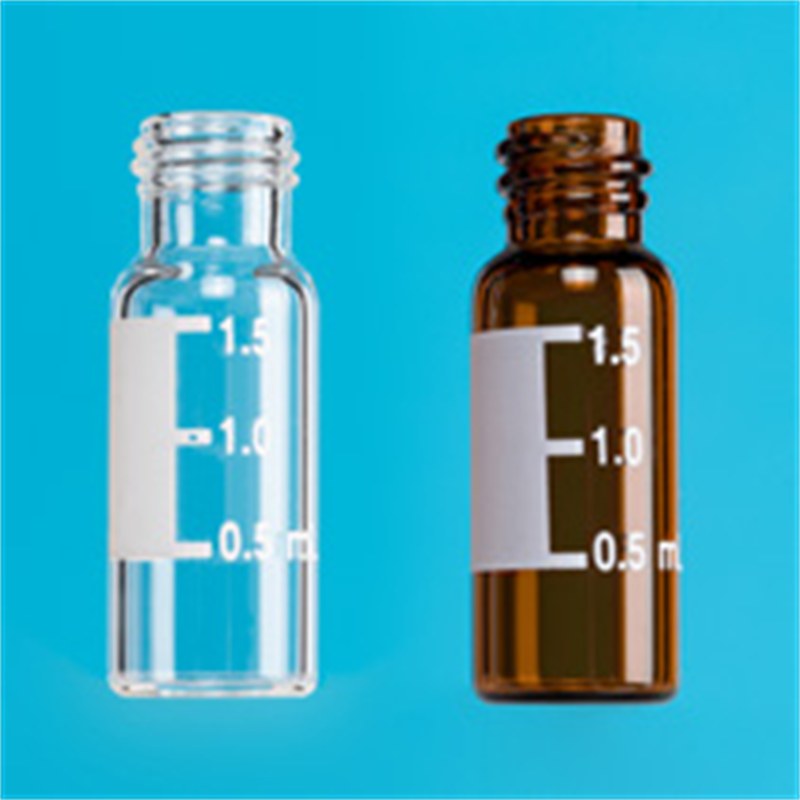

This family of screw-thread vials is made from USP Type 1 borosilicate glass with a flat bottom. The 8-425, 9-425 and 10-425 finishes are 2.0 mL vials (11.6 x 32 mm, recommended fill 1.5 mL), while the 13-425 vial holds 4.0 mL (15 x 45 mm).
Each finish suits a different need. The 8-425 is the original smaller-opening autosampler vial for autosamplers requiring narrow-neck vials. The 9-425 is dimensionally equivalent to 11 mm crimp-top vials, so it fits autosamplers designed for those vials, and it seals well while being easy to apply and remove by hand. The 10-425 has a wider opening, giving a larger target area that eases injection and reduces the chance of bending or breaking needles. The 13-425 seals well for storing a sample and transferring it directly.
Vials come clear or amber, with or without a write-on spot, 100 per box, and matching screw caps with PTFE/silicone septa are listed for each finish.
Specifications
Technical specifications
26 parameters
General
- Material
- USP Type 1 borosilicate glass
- Bottom style
- Flat bottom
- Pack quantity
- 100 pcs/box (vials and caps)
8-425
- Opening
- 8-425 screw top
- Total volume
- 2.0 mL
- Recommended fill
- 1.5 mL
- Dimensions (O.D. x L)
- 11.6 x 32 mm
- Catalog numbers
- V1-T (clear), V1-TL (clear, write-on spot), V1-A (amber), V1-AL (amber, write-on spot)
- Caps with septa
- SC1-1 to SC1-13: black or white polypropylene screw caps, 5.5 mm hole, PTFE/silicone septa (plain and pre-slit)
9-425
- Opening
- 9-425 screw top
- Total volume
- 2.0 mL
- Recommended fill
- 1.5 mL
- Dimensions (O.D. x L)
- 11.6 x 32 mm
- Catalog numbers
- V2-T (clear), V2-TL (clear, write-on spot), V2-A (amber), V2-AL (amber, write-on spot)
- Caps with septa
- C2-1 (6 mm hole), C2-2 (closed top); SC2-1 to SC2-6 with PTFE/silicone septa, 6 mm hole; blue polypropylene
10-425
- Opening
- 10-425 screw top
- Total volume
- 2.0 mL
- Recommended fill
- 1.5 mL
- Dimensions (O.D. x L)
- 11.6 x 32 mm
- Catalog numbers
- V3-T (clear), V3-TL (clear, write-on spot), V3-A (amber), V3-AL (amber, write-on spot)
- Caps with septa
- SC3-1, SC3-2: black polypropylene screw caps, 7 mm hole, PTFE/silicone septa
13-425
- Opening
- 13-425 screw top
- Total volume
- 4.0 mL
- Dimensions (O.D. x L)
- 15 x 45 mm
- Catalog numbers
- V6-T (clear), V6-TL (clear, write-on spot), V6-A (amber), V6-AL (amber, write-on spot)
- Caps with septa
- C6-1 (8.5 mm hole), C6-2 (closed top); SC6-1 to SC6-5 with PTFE/silicone septa; black polypropylene
Features
Key features
- 01
8-425 narrow-neck vial
The original smaller-opening autosampler vial, designed for autosamplers that require narrow-neck vials.
- 02
9-425 crimp-top compatibility
Dimensionally equivalent to 11 mm crimp-top vials, so usable in autosamplers designed for them.
- 03
10-425 wide opening
A larger target area makes injection easier and lowers the chance of bending or breaking needles.
- 04
13-425 storage vial
A 4.0 mL vial with excellent sealing for storing a sample and transferring it directly.
- 05
Clear or amber
Each finish is offered in clear or amber glass, with or without a write-on spot.
- 06
Matching caps and septa
Black, white or blue polypropylene screw caps with PTFE/silicone septa, including pre-slit versions for some finishes.
