96-Well Filtration Plate
High-throughput 96-well filtration plates in medical-grade PP with sintered UHMW-PE frits (5, 20 or 50 µm), ANSI/SBS format, for vacuum or centrifuge filtration.
Key specifications
- Viscous-sample plates
- 004906-1 (1.0 mL/well), 004906-2 (1.5 mL/well)
- 1.0 mL/well plates
- 004901-5, 004901-20, 004901-50 (5, 20, 50 µm frit)
- 1.5 mL/well plates
- 004902-5, 004902-20, 004902-50 (5, 20, 50 µm frit)
- 2.0 mL/well plates
- 004903-5, 004903-20, 004903-50 (5, 20, 50 µm frit)
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
96-Well Filtration Plate
Request a quoteOverview
Product overview

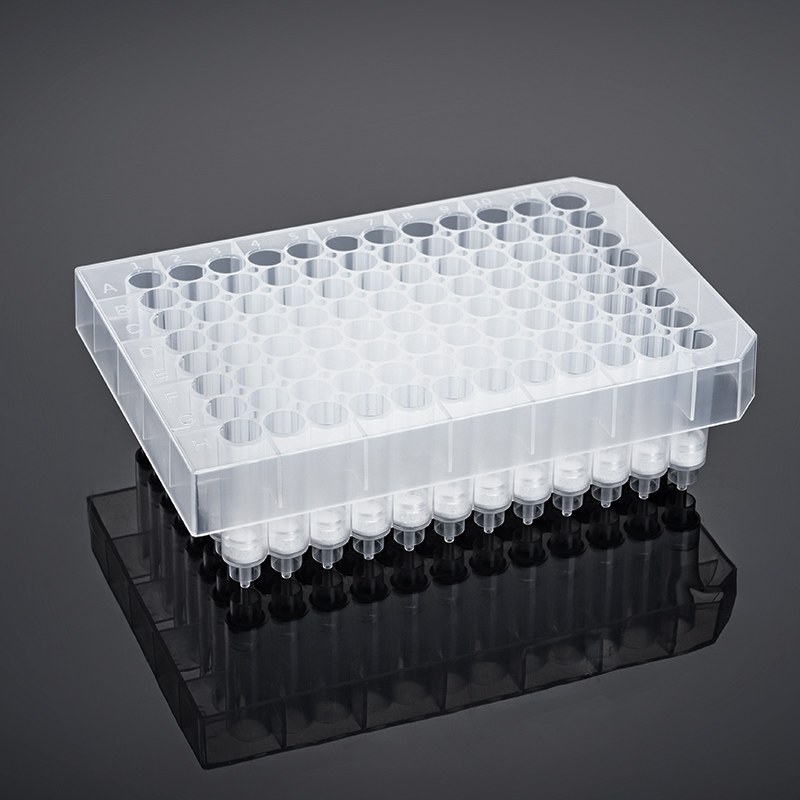

The Biocomma 96-well filtration plate is designed for high-throughput sample processing. The plate is injection-moulded from medical-grade polypropylene, and the frits are precision-sintered from UHMW-PE of uniform particle size. Frits of different pore sizes are available to filter complex samples.
The plates are designed for filtering viscous samples such as bacterial liquids and are suitable for filtration at the micrometre level and above. They can be used with negative pressure or centrifugation, work with compatible microplate collection plates, and conform to ANSI/SBS standards for easy automation. Well volumes of 1.0, 1.5 and 2.0 mL are offered with 5, 20 and 50 µm frits, plus DVfree 96-well (400 and 600 µL) and 384-well (150 µL) formats.
Specifications
Technical specifications
10 parameters
Ordering
- Viscous-sample plates
- 004906-1 (1.0 mL/well), 004906-2 (1.5 mL/well)
- 1.0 mL/well plates
- 004901-5, 004901-20, 004901-50 (5, 20, 50 µm frit)
- 1.5 mL/well plates
- 004902-5, 004902-20, 004902-50 (5, 20, 50 µm frit)
- 2.0 mL/well plates
- 004903-5, 004903-20, 004903-50 (5, 20, 50 µm frit)
- DVfree 96-well plates
- 009601-5 / 009601-20 (400 µL/well); 009602-5 / 009602-20 (600 µL/well); 5 or 20 µm frit
- DVfree 384-well plates
- 0038401-5 / 0038401-20 (150 µL/well); 5 or 20 µm frit
- Quantity
- 4 pcs per pack
Material
- Plate material
- Medical-grade PP (polypropylene)
- Frit material
- UHMW-PE, precision-sintered, uniform particle size
Compatibility
- Format
- Conforms to ANSI/SBS standards
Features
Key features
- 01
Sintered UHMW-PE frits
Precision-sintered from uniform-particle-size material in several pore sizes.
- 02
For viscous samples
Designed for filtering viscous samples such as bacterial liquids.
- 03
Vacuum or centrifuge
Can be used with negative pressure or centrifugation.
- 04
ANSI/SBS format
Conforms to ANSI/SBS standards for ease of automation.
- 05
Several well volumes
1.0, 1.5 and 2.0 mL/well, plus DVfree 400/600 µL (96-well) and 150 µL (384-well) plates.
