Reference: BCY9601-E / BCY9602-E

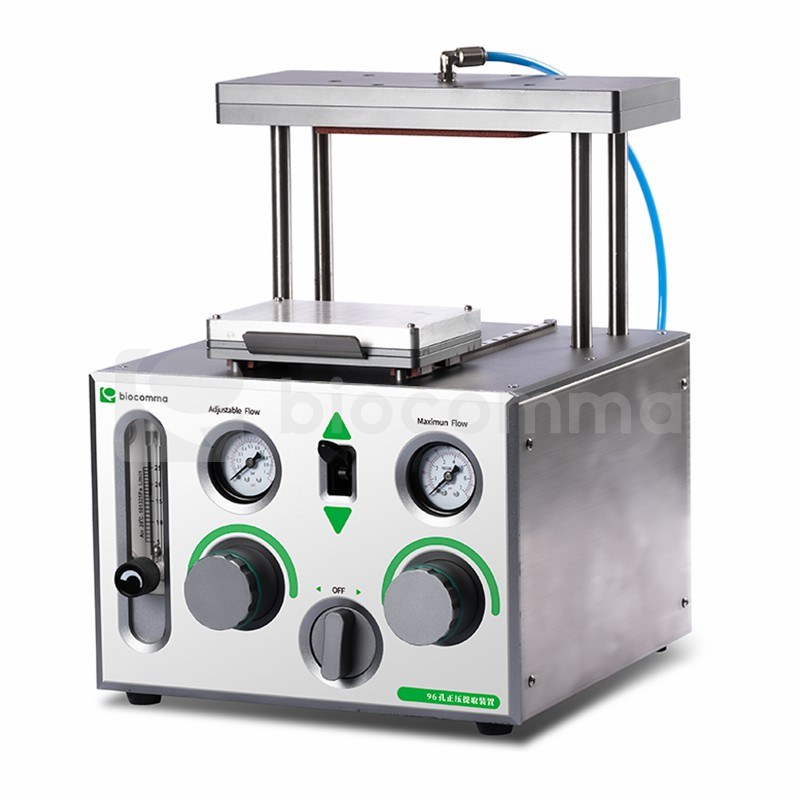

BCY96 Positive Pressure 96 Processor
Pneumatic positive-pressure processor that pushes liquids through a 96-well plate with uniform flow, for SPE, SLE and protein-precipitation filtration.
Key specifications
- Models
- BCY9601, BCY9602
- Catalog number
- BCY9601-E (Positive Pressure 96 Processor); BCY9602-E (includes adapters to fit more plates)
- Throughput
- 1 to 96 (both models)
- 96-well output working pressure (BCY9601)
- Low-pressure area 0 to 15 psi; high-pressure area 0 to 95 psi
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
BCY96 Positive Pressure 96 Processor
Request a quoteOverview
Product overview
BCY96 uses a continuous positive-pressure gas source to drive liquids of varying viscosity through every well of a 96-well plate. Applying gas pressure in parallel from the top of the device gives highly uniform flow rates across all 96 wells, and the pressure in each well stays constant.
It performs well with viscous samples, its universal design fits all SPE 96-well plates, and adjustable gas pressure reaches up to 100 psi. It improves the reproducibility of solid-phase supported liquid-liquid extraction (SLE), solid-phase extraction (SPE) and protein precipitation filtration (PPT).
Two models are listed: BCY9601, and BCY9602 which includes adapters to fit more plates. Operation is pneumatic, so no external power supply is required.
Specifications
Technical specifications
17 parameters
Ordering
- Models
- BCY9601, BCY9602
- Catalog number
- BCY9601-E (Positive Pressure 96 Processor); BCY9602-E (includes adapters to fit more plates)
Parameters
- Throughput
- 1 to 96 (both models)
- 96-well output working pressure (BCY9601)
- Low-pressure area 0 to 15 psi; high-pressure area 0 to 95 psi
- 96-well output working pressure (BCY9602)
- Low-pressure area 0 to 15 psi; high-pressure area 0 to 100 psi
- External working air pressure
- 0.35 to 0.7 MPa
- Flatness of movable platen
- Height error ≤ ±0.1 mm
- 96-well gas pressure uniformity
- ≤ ±10%
- Operating humidity
- 10 to 90 %
- Operating temperature
- 10 to 40 °C
- Applicable consumables (BCY9601)
- 96-well extraction plate, 2 mL collection plate
- Applicable consumables (BCY9602)
- 96-well extraction plate, 1 mL and 2 mL collection plates
- Operation method
- Switch knob control
- Power mode
- Pneumatic control, no external power supply required
- Dimensions (L x W x H) (BCY9601)
- 260 x 300 x 360 mm
- Dimensions (L x W x H) (BCY9602)
- 260 x 300 x 330 mm
- Weight
- 8 kg
Features
Key features
- 01
Uniform flow
Highly uniform flow rate between wells with constant pressure in each well.
- 02
Handles viscous samples
Provides excellent flow rate for viscous samples.
- 03
Universal plate fit
Universal design fits all SPE 96-well plates.
- 04
Reproducibility
Improves reproducibility of SLE, SPE and PPT.
- 05
Adjustable pressure
Adjustable gas pressure up to 100 psi.
- 06
Pneumatic operation
Switch knob control; no external power supply required.
