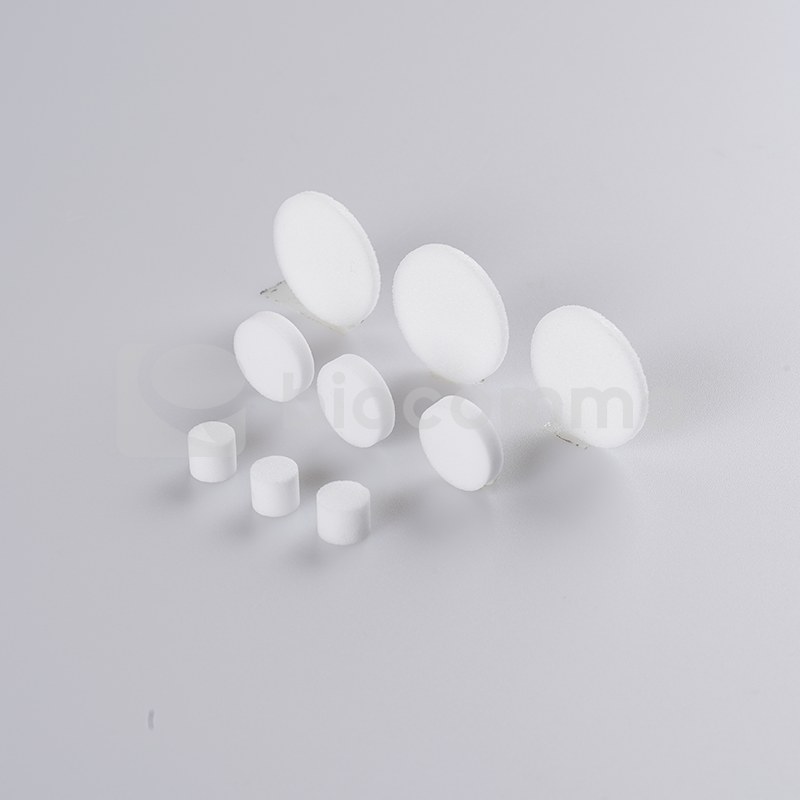

Biocomma® Frits for SPE/Flash Columns
UHMW-PE frits for SPE and flash columns in diameters from 5.8 to 49.5 mm, with water absorption below 0.01% and batch-tested flow rate.
Key specifications
- Material
- Ultra-high-molecular-weight PE (UHMW-PE)
- Water absorption
- < 0.01 %
- Pore size, gravity use
- 80-100 µm
- Pore size, small-particle sorbents
- < 20 µm
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Biocomma® Frits for SPE/Flash Columns
Request a quoteOverview
Product overview
Biocomma SPE/Flash column frits are made with a special process that covers careful raw-material selection, mold optimization, flow-rate testing and ERP-based traceability. Frits with different pore sizes are available to meet the needs of small-particle sorbents under gravity flow.
The UHMW-PE raw material has a water absorption below 0.01%, a more even particle diameter and strict solvent-compatibility testing. Precision molding assures accurate frit diameter and a close fit with the inner diameter of the column tube, and each batch is tested so flow rate stays stable between batches. Frit diameter relative to the empty column tube matters for flow; Biocomma gives the example of a 9.0 mm, 40%-porosity frit whose pore is reduced by 37.24% if its diameter is compressed by 0.2 mm.
Pore sizes of 80-100 µm suit gravity flow and sizes below 20 µm suit small-particle sorbents. Catalog sizes run from 5.8 mm to 49.5 mm in diameter, with custom options.
Specifications
Technical specifications
10 parameters
Construction
- Material
- Ultra-high-molecular-weight PE (UHMW-PE)
- Water absorption
- < 0.01 %
Performance
- Pore size, gravity use
- 80-100 µm
- Pore size, small-particle sorbents
- < 20 µm
Ordering
- Catalog pore size
- 20 (custom: 20 / 50) µm
- Thickness
- 1.6 or 2.5 (custom: 1.6 / 2.5 / 3.2) mm
- Diameter range
- 5.8-49.5 (custom: 1-50) mm
- Catalog numbers (small sizes)
- SPEF058-16-20 (Ø5.8 x 1.6 mm, 1 mL); SPEF070-16-20 and SPEF083-16-20 (Ø7.0 / 8.3 mm, 96-well plate); SPEF090 / SPEF091 (Ø9.0 / 9.1 mm, 1.6 or 2.5 mm, 3 mL); SPEF130 (Ø13 mm, 6 mL)
- Catalog numbers (large sizes)
- SPEF158-25-20 (Ø15.8 mm, 12 mL); SPEF197-25-20 (Ø19.7, 20 mL); SPEF228-25-20 (Ø22.8, 30 mL); SPEF266-25-20 and SPEF296-25-20 (Ø26.6 / 29.6, 60 mL); SPEF495-25-20 (Ø49.5, 300 mL)
- Packaging
- 1,000 pcs per pack
Features
Key features
- 01
Low water absorption
UHMW-PE raw material with water absorption below 0.01% and strict solvent-compatibility testing.
- 02
Precise fit to the column
Precision molding matches the frit to the column tube inner diameter for stable flow.
- 03
Consistent between batches
Each batch is tested to keep flow rate stable from batch to batch.
- 04
Pore sizes for the application
80-100 µm for gravity flow; below 20 µm for small-particle sorbents.
- 05
Broad size range
Diameters from 5.8 to 49.5 mm in the catalog, plus custom sizes.
- 06
Traceable production
Each production step is recorded in an ERP management system.
