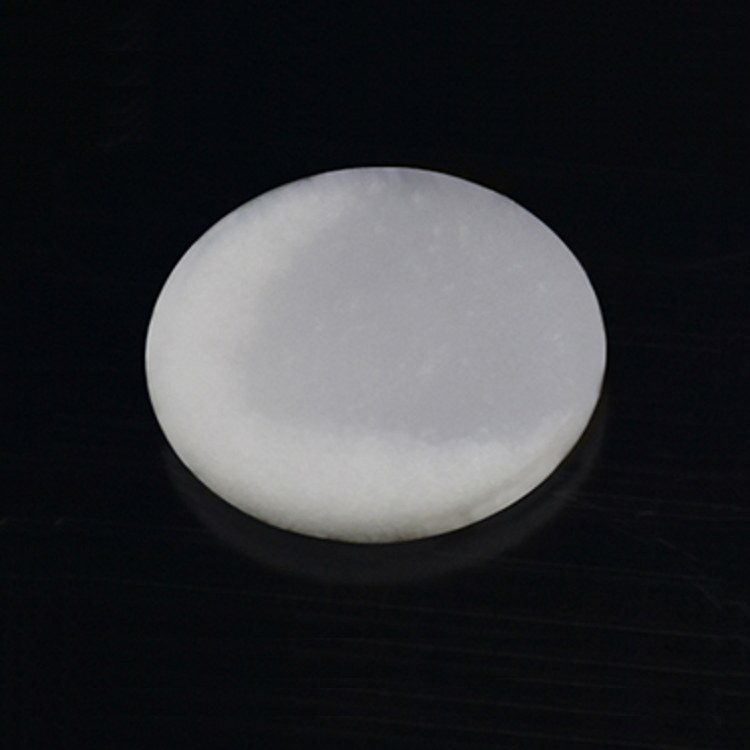

Biocomma® Hydrophilic Frits
Sintered UHMW-PE frits with a hydrophilic surface for aqueous solutions, in diameters from 1.4 to 51 mm and pore sizes from 2 to 50 µm.
Key specifications
- Material
- UHMW-PE with surface modified to be hydrophilic (sintered)
- Standard thickness
- 1.6 (1/16 in) or 2.5 (1/10 in); others customizable mm
- Standard pore size
- 50 (others customizable) µm
- Diameter range (catalog)
- 1.4-51.0 mm
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Biocomma® Hydrophilic Frits
Request a quoteOverview
Product overview
Biocomma hydrophilic frits start as hydrophobic ultra-high-molecular-weight polyethylene (UHMW-PE) and are sintered with an advanced process, then modified so that the surface becomes hydrophilic and wets readily with water-based liquids.
Frits can be chosen by thickness (1.6 mm or 2.5 mm as standard, others customizable), pore size (50 µm as standard, others customizable) and diameter. The catalog lists dozens of sizes from 1.4 mm to 51 mm in diameter, mostly at 1.6 mm thick and 50 µm pore, with some finer 2, 5 and 20 µm versions, all packed 1,000 per pack.
Specifications
Technical specifications
10 parameters
Construction
- Material
- UHMW-PE with surface modified to be hydrophilic (sintered)
- Standard thickness
- 1.6 (1/16 in) or 2.5 (1/10 in); others customizable mm
- Standard pore size
- 50 (others customizable) µm
Ordering
- Diameter range (catalog)
- 1.4-51.0 mm
- Catalog thickness range
- 1.2-3.2 mm
- Catalog pore sizes
- 2, 5, 20 and 50 µm
- Non-50 µm pore items
- LF014-12-20 (Ø1.4 x 1.2, 20 µm); LF048-32-05 (Ø4.8 x 3.2, 5 µm); LF066-16-02 (Ø6.6 x 1.6, 2 µm); LF074-16-20 (Ø7.4 x 1.6, 20 µm)
- 50 µm items, 1.6 mm thick
- LF016, LF025, LF040, LF058, LF066, LF072, LF074, LF080, LF090, LF091, LF093, LF125, LF127, LF130, LF151, LF197, LF228, LF236, LF292, LF495, LF510 (-16-50)
- 50 µm items, 2.5 mm thick
- LF273-25-50 (Ø27.3 mm); LF296-25-50 (Ø29.6 mm)
- Packaging
- 1,000 pcs per pack
Features
Key features
- 01
Hydrophilic surface
Surface-modified UHMW-PE that is wetted by aqueous solutions.
- 02
Sintered UHMW-PE
Made using an advanced sintering process from ultra-high-molecular-weight polyethylene.
- 03
Selectable thickness and pore
Standard 1.6 mm or 2.5 mm thickness and 50 µm pore, with other values customizable.
- 04
Wide diameter range
Catalog diameters from 1.4 mm to 51.0 mm.
- 05
Finer pore options
Selected sizes with 2, 5 or 20 µm pores.
