Reference: BN24-E
BN24 Intelligent Water-Bath Nitrogen Evaporator
24-channel water-bath nitrogen evaporator with PID heating to 100 °C, a touch-screen interface and group control of 6, 12, 18 or 24 samples.
Key specifications
- Model
- BN24
- Catalog number
- BN24-E (1 set/carton)
- Heating method
- Water-bath heating
- Temperature range
- RT to 100 °C
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
BN24 Intelligent Water-Bath Nitrogen Evaporator
Request a quoteOverview
Product overview

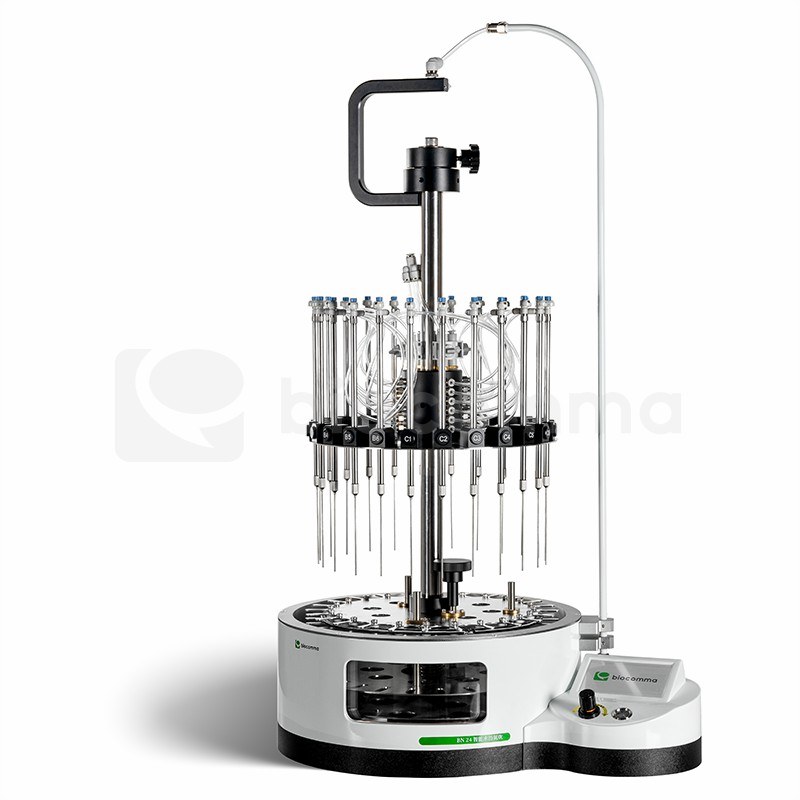

The BN24 concentrates samples quickly using a water bath and heated nitrogen blown onto the sample surface. It is widely applied to sample preparation for gas-phase, liquid-phase and mass-spectrometry analysis.
Needle valves with a scaled dial fine-tune the gas flow in each channel, and 6, 12, 18 or 24 samples can be controlled as groups. Manual and automatic programs are both available, with one-button switching of the main gas valve, and a digital display shows nitrogen pressure, water-bath temperature and concentration time in real time.
Gas needles are corrosion-resistant 316 stainless steel and easy to replace, the whole process can be watched through a front window with built-in lighting, and the sample holder rotates 360° on a disc structure.
Specifications
Technical specifications
20 parameters
Parameters
- Model
- BN24
- Heating method
- Water-bath heating
- Temperature range
- RT to 100 °C
- Temperature accuracy
- PID temperature controller, ±0.5 °C
- Channels
- 24 (4 groups control)
- Group control
- 6, 12, 18 or 24 samples
- Adaptable containers
- Test tubes, centrifuge tubes, conical flasks, evaporating flasks, etc.
- Container dimensions
- φ10-35 mm, H 32-200 mm
- Operating volume
- 1 to 150 mL
- Operating temperature
- 15 to 35 °C
- Operating humidity
- 45 to 80 %
- Input pressure
- 7 to 145 psi
- Output pressure
- 0 to 72.5 psi
- Interface
- Integrated touch screen
- Software languages
- Chinese and English
- Dimensions
- 640 x 460 x 1020 mm
- Power
- 2.2 kW
- Power supply
- AC 220 V / 110 V, 50 Hz
- Weight
- 30 kg
Ordering
- Catalog number
- BN24-E (1 set/carton)
Features
Key features
- 01
Precise gas control
Needle valves with scaled dials fine-tune gas flow in each channel.
- 02
Flexible grouping
Supports group control of 6, 12, 18 and 24 samples at once.
- 03
Smart adjustment
Manual and automatic programs, with one-button switching of the main gas valve.
- 04
Digital display
Shows nitrogen pressure, water-bath temperature and concentration time in real time.
- 05
Durable needles
Gas needles are corrosion-resistant 316 stainless steel and easy to replace.
- 06
Visible process
Front window and built-in lighting allow the concentration to be observed.
- 07
Rotating holder
Sample holder rotates 360° on a disc structure.
From order to operation
We stay with the instrument after it arrives
Al-Shaker specifies the configuration, documents the system, and supports it across Jordan, the GCC, and MENA.
- 01
Consult
- 02
Plan
- 03
Supply
- 04
Install
- 05
Train
- 06
Support
