Collection Plates
Polypropylene deep-well and microplate collection plates in round- and square-well formats (48, 96 and 384 wells), solvent-resistant and compliant with ANSI/SBS dimensions.
Key specifications
- Material
- High-purity polypropylene (PP)
- Solvent resistance
- Excellent, including DMSO, ethanol and isopropanol
- Standard
- ANSI/SBS-compliant design with alphabetical marks
- Centrifugal force
- 3000-4000 g
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Collection Plates
Request a quoteOverview
Product overview

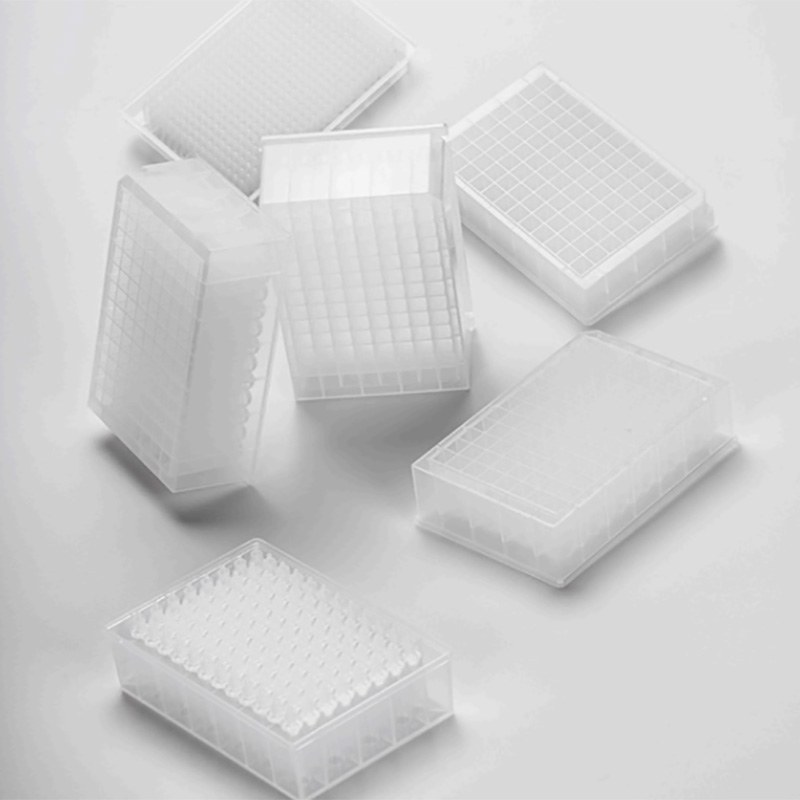

biocomma® Collection Plates are molded from high-purity polypropylene, a highly stable material with excellent solvent resistance (including DMSO, ethanol and isopropanol), thermal resistance and low residuals. The design complies with international ANSI/SBS standards and carries alphabetical well marking.
The plates withstand centrifugal forces of 3000-4000 g and can be autoclaved at 121 °C for 20 minutes. Deep-well formats of 4.6, 3.5, 2.2, 2.0, 1.6 and 1.0 mL and microplate formats of 0.4 and 0.36 mL are available in round-well and square-well styles, with U- or V-shaped bottoms, in 48-, 96- and 384-well layouts.
Sterilized collection plates can be requested from Biocomma.
Specifications
Technical specifications
10 parameters
General
- Material
- High-purity polypropylene (PP)
- Solvent resistance
- Excellent, including DMSO, ethanol and isopropanol
- Standard
- ANSI/SBS-compliant design with alphabetical marks
- Centrifugal force
- 3000-4000 g
- Autoclaving
- 121 °C for 20 min
- Available volumes
- Deep-well 4.6 / 3.5 / 2.2 / 2.0 / 1.6 / 1.0 mL; microplates 0.4 / 0.36 mL
Ordering information
- Round well, 48/96-well
- 48WP-C035 (48-well, 3.5 mL, U-bottom, 50/box); 96WP-C020-N (2.0 mL, U, 24/box); 96WP-C010-N (1.0 mL, U, 24/box); 96WU-004 (0.4 mL, U, 10/box); 96WV-0036 (0.36 mL, V, 10/box)
- Square well, 48/96-well
- 48WP-S046 (48-well, 4.6 mL, U-bottom, 24/box); 96WP-S022-BN (2.2 mL, U, 24/box); 96WP-S022V-N (2.2 mL, V, 24/box); 96WP-S016-BN (1.6 mL, U, 30/box); 96WP-S010-N (1.0 mL, U, 30/box)
- Square well, 384-well
- 384WP-240 (0.24 mL, V-bottom, 10/box); 384WP-120 (0.12 mL, V, 20/box); 384WP-220 (0.22 mL, U, 10/box)
- Sterilized plates
- Available on request
Features
Key features
- 01
High-purity polypropylene
Stable material with low residuals.
- 02
Solvent resistance
Excellent resistance to solvents including DMSO, ethanol and isopropanol.
- 03
ANSI/SBS-compliant design
Standard footprint with alphabetical well marking.
- 04
Centrifuge and autoclave tolerant
Withstands 3000-4000 g and autoclaving at 121 °C for 20 minutes.
- 05
Many well formats
48-, 96- and 384-well plates, round or square wells, U- or V-bottom, from 0.12 mL to 4.6 mL.
