Reference: HC18T314 / HC18T536

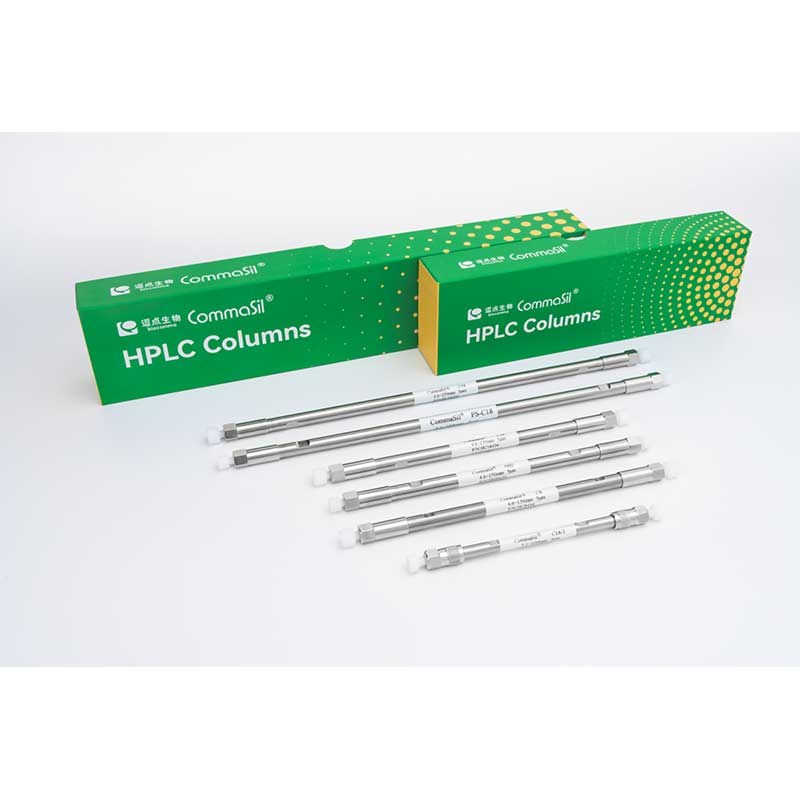

CommaSil® C18-T Hybrid Silica HPLC Column

A C18 HPLC column on hybrid silica with triple bonding and end-capping, offering wide pH stability and high efficiency; five particle sizes from 1.7 to 5 μm and listed as equivalent to Waters BEH C18.

Key specifications

Phase
C18 on hybrid silica with triple bonding and end-capping
pH stability
Wide pH range (hybrid bare-sphere structure)
Equivalent series (per Biocomma)
Waters BEH C18
Particle sizes
1.7, 2.5, 3, 3.5 and 5 μm
  • Configured to your application by our specialists
  • Installed and commissioned on site
  • Training and after-sales support across Jordan, the GCC and MENA

Overview

Product overview

CommaSil® C18-T combines a hybrid silica base with triple-bonding technology to deliver wide pH stability and strong separation performance, which supports a longer column lifetime. The series is described as compatible with all instrument platforms and suited to purifying larger sample amounts, improving method continuity and efficiency.

The hybrid bare-sphere structure expands the usable pH range, while triple bonding and end-capping give high column efficiency and excellent peak symmetry. Strict quality control is intended to give excellent lot-to-lot consistency of sorbent and columns. Biocomma lists the series as equivalent to Waters BEH C18.

Application examples on the page include malachite green and aflatoxin B1 by LC-MS and pantoprazole sodium related substances by HPLC-UV. Particle sizes of 1.7, 2.5, 3, 3.5 and 5 μm are available.

Specifications

Technical specifications

14 parameters

Column

Phase
C18 on hybrid silica with triple bonding and end-capping
pH stability
Wide pH range (hybrid bare-sphere structure)
Equivalent series (per Biocomma)
Waters BEH C18
Particle sizes
1.7, 2.5, 3, 3.5 and 5 μm
Column internal diameters
2.1, 3.0 and 4.6 mm
Column lengths
30, 50, 100, 150 and 250 mm (250 mm in 3.0 and 4.6 mm i.d.; 1.7 μm offered in 2.1 and 3.0 mm i.d.)

Application example

Example: malachite green (LC-MS)
2.1 × 100 mm, 3 μm (HC18T314); 0.3 mL/min; 40 °C; 10 μL; 0.1% formic acid water (5 mmol/L ammonium acetate) / acetonitrile gradient; HESI positive mode
Example: aflatoxin B1 (LC-MS)
2.1 × 100 mm, 3 μm (HC18T314); 0.3 mL/min; 40 °C; 5 μL; ammonium acetate / 0.1% formic acid methanol gradient; HESI positive mode
Example: pantoprazole sodium related substances
4.6 × 250 mm, 5 μm (HC18T536); UV 289 nm; 1 mL/min; 40 °C

Ordering information

Catalog numbers, 1.7μm particles
30×2.1mm HC18T111; 50×2.1mm HC18T211; 100×2.1mm HC18T311; 150×2.1mm HC18T411; 30×3.0mm HC18T121; 50×3.0mm HC18T221; 100×3.0mm HC18T321; 150×3.0mm HC18T421; 250×3.0mm HC18T521
Catalog numbers, 2.5μm particles
30×2.1mm HC18T113; 50×2.1mm HC18T213; 100×2.1mm HC18T313; 150×2.1mm HC18T413; 30×3.0mm HC18T123; 50×3.0mm HC18T223; 100×3.0mm HC18T323; 150×3.0mm HC18T423; 250×3.0mm HC18T523; 30×4.6mm HC18T133; 50×4.6mm HC18T233; 100×4.6mm HC18T333; 150×4.6mm HC18T433; 250×4.6mm HC18T533
Catalog numbers, 3μm particles
30×2.1mm HC18T114; 50×2.1mm HC18T214; 100×2.1mm HC18T314; 150×2.1mm HC18T414; 30×3.0mm HC18T124; 50×3.0mm HC18T224; 100×3.0mm HC18T324; 150×3.0mm HC18T424; 250×3.0mm HC18T524; 30×4.6mm HC18T134; 50×4.6mm HC18T234; 100×4.6mm HC18T334; 150×4.6mm HC18T434; 250×4.6mm HC18T534
Catalog numbers, 3.5μm particles
30×2.1mm HC18T115; 50×2.1mm HC18T215; 100×2.1mm HC18T315; 150×2.1mm HC18T415; 30×3.0mm HC18T125; 50×3.0mm HC18T225; 100×3.0mm HC18T325; 150×3.0mm HC18T425; 250×3.0mm HC18T525; 30×4.6mm HC18T135; 50×4.6mm HC18T235; 100×4.6mm HC18T335; 150×4.6mm HC18T435; 250×4.6mm HC18T535
Catalog numbers, 5μm particles
30×2.1mm HC18T116; 50×2.1mm HC18T216; 100×2.1mm HC18T316; 150×2.1mm HC18T416; 30×3.0mm HC18T126; 50×3.0mm HC18T226; 100×3.0mm HC18T326; 150×3.0mm HC18T426; 250×3.0mm HC18T526; 30×4.6mm HC18T136; 50×4.6mm HC18T236; 100×4.6mm HC18T336; 150×4.6mm HC18T436; 250×4.6mm HC18T536
Features

Key features

  • 01

    Wide pH tolerance

    A hybrid bare-sphere structure expands the usable pH range and supports long column life.

  • 02

    High efficiency and peak symmetry

    Triple bonding and end-capping give high column efficiency and excellent peak symmetry.

  • 03

    Lot-to-lot consistency

    Strict quality control targets consistent sorbent and column performance between lots.

  • 04

    Platform compatibility

    Described as compatible with all instrument platforms.

  • 05

    Five particle sizes

    1.7, 2.5, 3, 3.5 and 5 μm.
